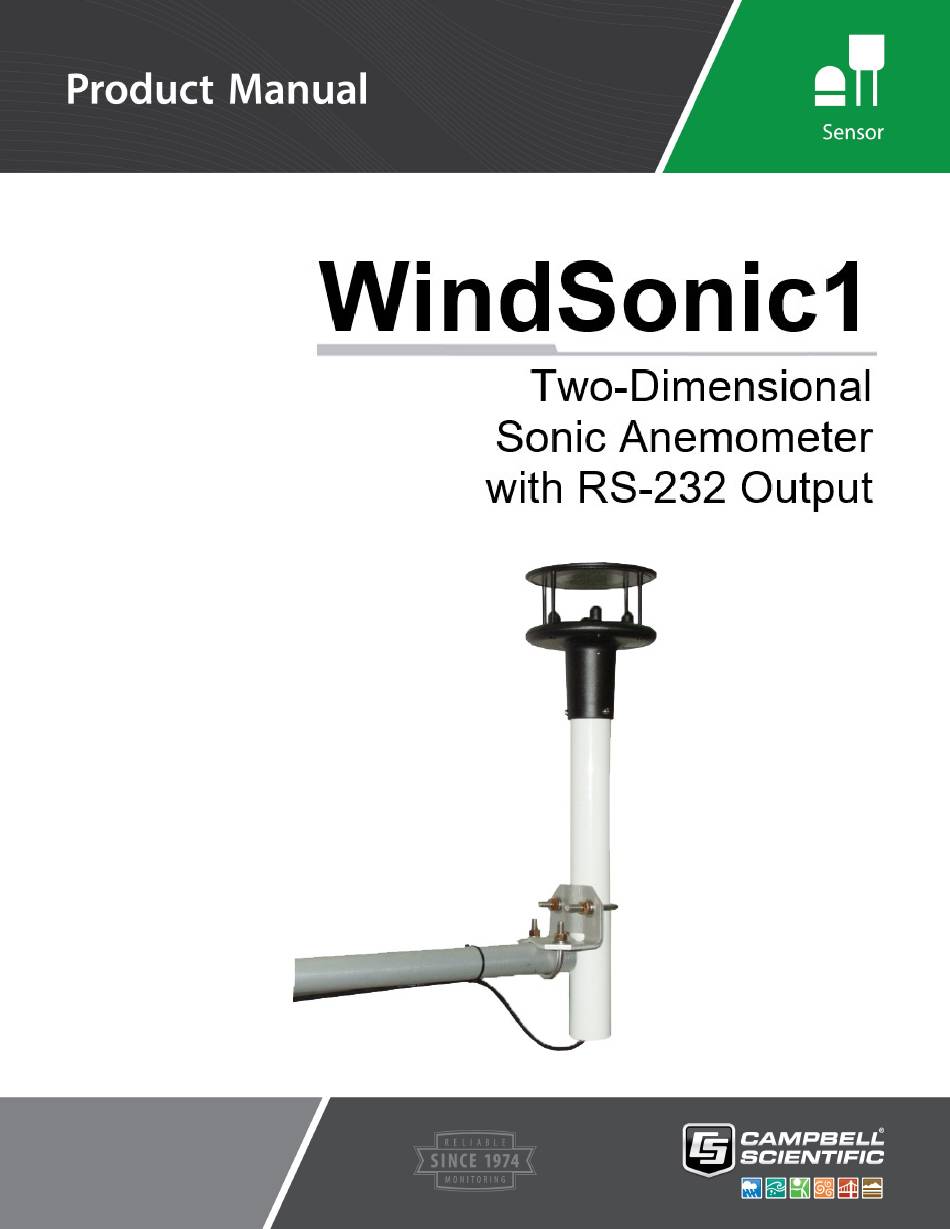

  • Page 1 Revision: 08/2021 Copyright © 2014 – 2021 Campbell Scientific, Inc.

  • Page 2: Table Of Contents

    7.3 Data logger programming 7.3.1 CRBasic programming 7.4 Siting 7.5 Mount the sensor 8. Operation 8.1 Sensor configuration 8.2 Campbell Scientific factory default settings 8.3 Sensor output 8.4 Long cables 9. Maintenance and troubleshooting 9.1 Troubleshooting 9.2 Maintenance 10. Siting references Appendix A.
  • Page 3 Appendix C. Updating an older program for the new WindSonic1 settings Appendix D. Using the CPI/RS-232 port Table of Contents - ii...

  • Page 4: Introduction

    WindSonic1 default settings were changed in February 2013. WindSonic1 anemometers with newer settings will not work with older programs and Short Cut 3.0 or older. See Campbell Scientific factory default settings (p. 11) and Updating an older program for the new WindSonic1 settings (p.

  • Page 5: Initial Inspection

    Upon receipt of the WindSonic1, inspect the packaging and contents for damage. File damage claims with the shipping company. Immediately check package contents against the shipping documentation. Contact Campbell Scientific about any discrepancies. The model number and cable length are printed on a label at the connection end of the cable.
  • Page 6 3. In the Available Sensors and Devices box, type WindSonic1 or locate the sensor in the Sensors > Meteorological > Wind Speed & Direction folder. Double-click either WindSonic1 (RS-232 9.6K baud) or WindSonic1 (RS-232 38.4K baud); 9.6K baud is the factory-default setting.
  • Page 7 6. In Output Setup, type the scan rate, meaningful table names, and Data Output Storage Interval. Click Next. 7. Select the measurement and its associated output option. 8. Click Finish and save the program. Send the program to the data logger if the data logger is connected to the computer.

  • Page 8: Overview

    The WindSonic1 includes a user-specified cable to interface to a Campbell Scientific data logger. A serial cable (WINDSONICRCBL-L) is available for interfacing a WindSonic1 to a computer running the manufacturer’s computer support software. The cable and software are used during troubleshooting or to change settings for a specific application.

  • Page 9: Wind Direction

    Current drain: ~15 mA continuous Operating temperature: –35 to 70 °C Storage temperature: –40 to 80 °C Dimensions: 142 x 160 mm (5.6 x 6.3 in) Weight: 500 g (1.1 lb) Operating humidity: <5% to 100% RH 6.1 Wind direction Operating range: 0 to 359°...

  • Page 10: Sdm-Sio1A/Sdm-Sio4A Wiring

    Serial/power reference Black Shield Clear U and C terminals are automatically configured by the measurement instruction for Campbell Scientific CR6 data logger. NOTE: The maximum cable length depends on the baud rate, the nominal resistance of the wire, the capacitance between conductors, and the capacitance between the conductors and shield.

  • Page 11: Data Logger Programming

    C (control terminal) or U terminal SDM data line configured for SDM data U and C terminals are automatically configured by the measurement instruction for Campbell Scientific CR6 data logger. 7.3 Data logger programming Short Cut is the best source for up-to-date programming code for Campbell Scientific data loggers.

  • Page 12: Crbasic Programming

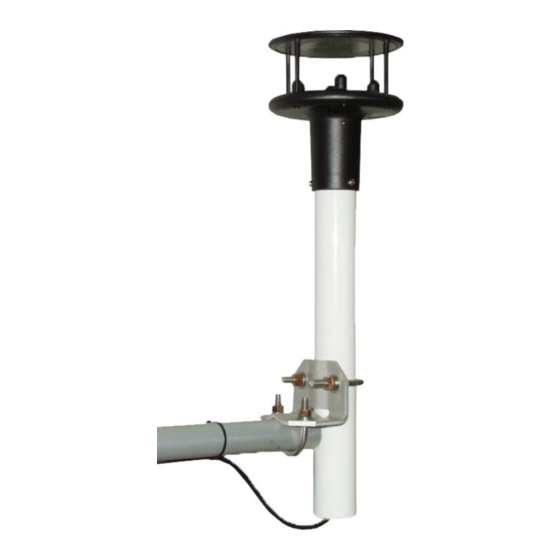

    (p. 15) for a list of references that discuss siting wind direction and speed sensors. 7.5 Mount the sensor Mount the WindSonic1 using the WindSonic Mounting Pipe Kit, which consists of an aluminum mounting tube, three pan truss screws, CM220 Right Angle Mounting bracket, two U-bolts, and four nuts.

  • Page 13: Operation

    7. Route the sensor cable along the underside of the crossarm to the tripod or tower, and to the instrument enclosure. 8. Secure the cable to the crossarm and tripod or tower using cable ties. 8. Operation This section discusses the following: 8.1 Sensor configuration 8.2 Campbell Scientific factory default settings WindSonic1 Two-Dimensional Sonic Anemometer...

  • Page 14: Sensor Configuration

    The data output frequency of the WindSonic1 can be set to five discrete values (see Table 8-1 11)) using Gill’s computer support software and the RS-232 WindSonic to computer cable. Table 8-1: WindSonic1 output frequencies Output frequency (Hz) Seconds per output (s) 0.25...
  • Page 15 Table 8-2: WindSonic1 factory-default settings Setting description Setting Comments Terminate records with a carriage return and line feed 1 Hz output frequency Baud rate – 9600 baud Changed in February 2013 Power-up message Changed in February 2013 Address set to “Q” Data bits and parity —...

  • Page 16: Sensor Output

    Example string: <STX>Q, 229, 002.74, M, 00, <ETX> 16<CR><LF> Element in example string Meaning <STX> Start of string character (ASCII value 2) WindSonic node address (Q is the default) Wind direction, degrees 002.74 Wind speed, m/s Units of wind speed (m/s is the default)

  • Page 17: Long Cables

    8.4 Long cables Communications between the WindSonic1 and the data logger will most likely fail if its cable is extended beyond 15 m (50 ft). Digital data transfer eliminates offset errors due to cable lengths. However, digital communications can break down when cables are too long, resulting in either no response from the sensor or corrupted readings.

  • Page 18: Maintenance

    If the WindSonic1 is damaged, fails to output data, or sends a nonzero status number (Table 9-1 (p. 14)), return it to Campbell Scientific for repair (see Assistance). 10. Siting references The following references give detailed information on siting wind direction and wind speed sensors.

  • Page 19: Appendix A. Importing Short Cut Code Into Crbasic Editor

    Appendix A. Importing Short Cut code into CRBasic Editor Short Cut creates a .DEF file that contains wiring information and a program file that can be imported into the CRBasic Editor. By default, these files reside in the C:\campbellsci\SCWin folder. Import Short Cut program file and wiring information into CRBasic Editor: 1.

  • Page 20: Appendix B. Determining True North And Sensor Orientation

    Appendix B. Determining True North and sensor orientation The orientation of the WindSonic1 north arrow markers is found by reading a magnetic compass and applying the site-specific correction for magnetic declination; where the magnetic declination is the number of degrees between true north and magnetic north. Obtain the magnetic declination for a specific site from a USGS map, local airport, or through a NOAA web calculator (Online magnetic declination calculator...
  • Page 21 For example, the declination for Longmont, CO (10 June 2006) is 9.67°, thus True North is 360° – 9.67°, or 350.33° as read on a compass. Likewise, the declination for McHenry, IL (10 June 2006) is –2.68°, and True North is 0° – (–2.68°), or 2.68° as read on a compass. FIGURE B-2.

  • Page 22: Online Magnetic Declination Calculator

    B.1 Online magnetic declination calculator The magnetic declination web calculator published by NOAA’s Geophysical Data Center is available at www.ngdc.noaa.gov/geomag-web . This web page calculates declination based on the latitude and longitude. You can look up your site’s latitude and longitude by entering the Zip Code or the Country and City, and then clicking the Get &...
  • Page 23 FIGURE B-5. NOAA calculated declination using HTML result format WindSonic1 Two-Dimensional Sonic Anemometer...
  • Page 24 Older WindSonic1 programs can be changed in the CRBasic Editor. Table C-1 (p. 22) shows the instructions that need to be changed to update the program for the current settings. For additional support, contact Campbell Scientific at (435) 227-9000 or email support@campbellsci.com WindSonic1 Two-Dimensional Sonic Anemometer...
  • Page 25 Table C-1: Instructions updated for current factory-default settings Old instructions New instructions Public windsonic(4) windsonic(4) As String Alias windsonic(1) = wind_direction Public wind_direction Alias windsonic(2) = wind_speed Public wind_speed Alias windsonic(3) = diag Public diag Alias windsonic(4) = nmbr_bytes_rtrnd Public...
  • Page 26 Appendix D. Using the CPI/RS-232 port An RJ45 terminal block adapter allows the WindSonic1 to be connected to the CPI/RS-232 port on a CR6 or CR1000X. The CPI/RS-232 port is typically only used if control or universal terminals are not available. Table D-1 (p.
  • Page 27 See Product Details on the Ordering Information pages at www.campbellsci.com . Other manufacturer's products, that are resold by Campbell Scientific, are warranted only to the limits extended by the original manufacturer. Refer to www.campbellsci.com/terms#warranty for more information.
  • Page 28 To obtain a Returned Materials Authorization or Repair Reference number, contact your CAMPBELL SCIENTIFIC regional office. Please write the issued number clearly on the outside of the shipping container and ship as directed. For all returns, the customer must provide a “Statement of Product Cleanliness and Decontamination”...
  • Page 29 Do not recharge, disassemble, heat above 100 °C (212 °F), solder directly to the cell, incinerate, or expose contents to water. Dispose of spent batteries properly. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR...
  • Page 30 Campbell Scientific Regional Offices Australia France Thailand Location: Garbutt, QLD Australia Location: Vincennes, France Location: Bangkok, Thailand Phone: 61.7.4401.7700 Phone: 0033.0.1.56.45.15.20 Phone: 66.2.719.3399 Email: info@campbellsci.com.au Email: info@campbellsci.fr Email: info@campbellsci.asia Website: www.campbellsci.com.au Website: www.campbellsci.fr Website: www.campbellsci.asia Brazil Germany Location: São Paulo, SP Brazil...
