Sloan Optima EAF-100-ISM-DPU-IC Repair Parts And Maintenance Manual

EAF-100-ISM-DPU-IC
EAF-100-ISM
1A
1B
1C
1D
The information contained in this document is subject to change without notice.

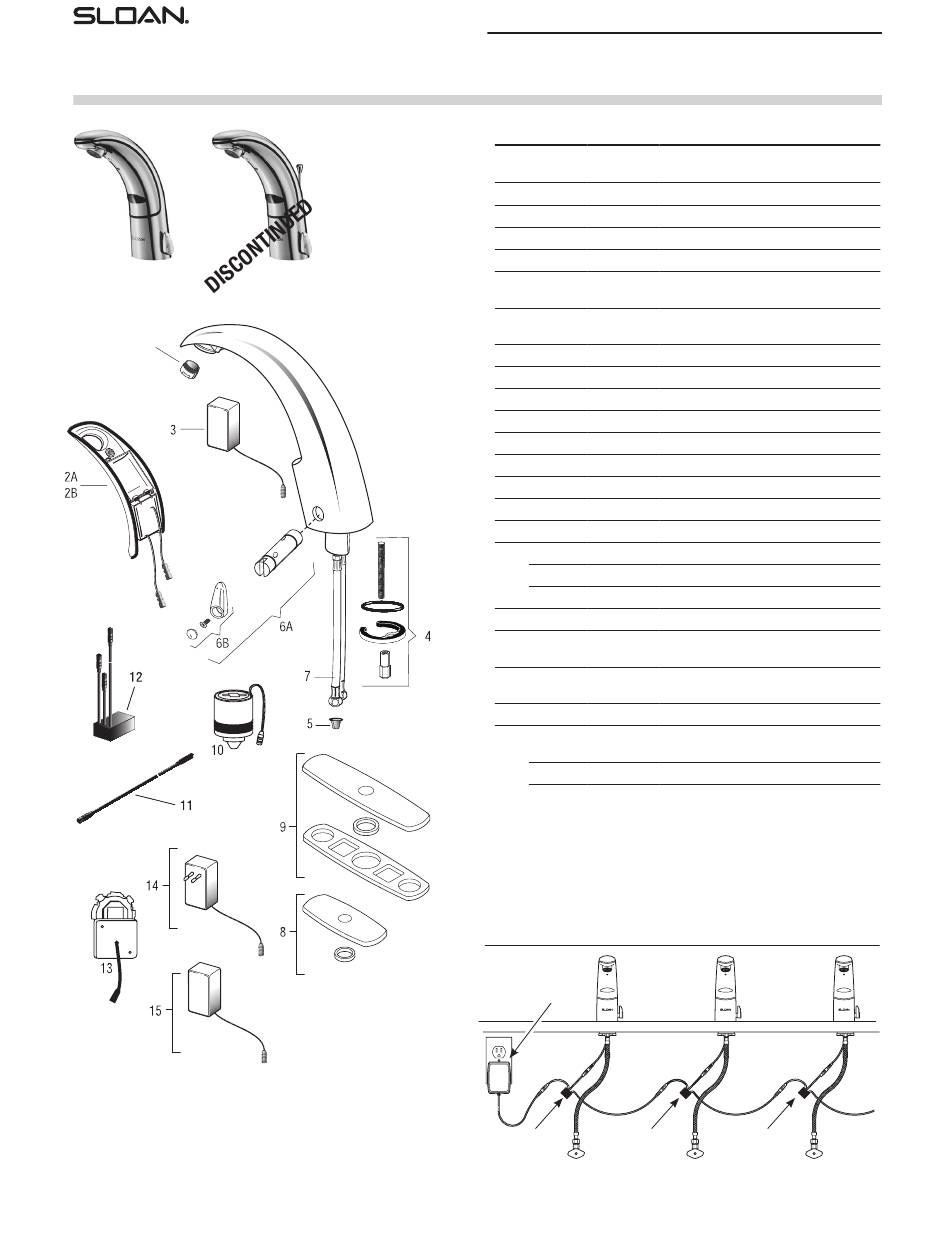

Repair Parts and Maintenance Guide

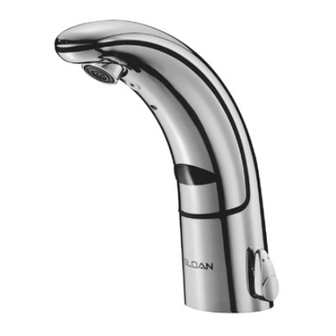

Optima EAF-100 Faucet
®
PARTS LIST — EAF-100 FAUCETS
Item
No. Code No. Part No.
0335021
1A. EAF-22
0335008
1B. EAF-10
0335010
1C. EAF-12
0335029
1D. EAF-51
0335004
2A. EAF-6-A
2B. 0335005 EAF-7-A
0335009
3. EAF-11
0335000
4. EAF-1
0335007
5. EAF-9
3335118
6A. EAF-1022-A Side Mixer Cartridge & Handle
3335011
6B. EAF-1002
3335023
7. EAF-1008
0362011
8. SFP-11
3362022
9. SFP-22
0335001
10. EAF-2
0335024
11. EAF-24-A
0335025
EAF-25-A
0335015
EAF-17-A
0335044
12. † EAF-44
0335037
13. EAF-37
14. 0335038 EAF-38
15. 0335039 EAF-39
16. Not Shown
0335006
EAF-8
3326044
MIX-79
† EAF-44 Power Splitter (12) replaces discontinued EAF28A capacitor & EAF23A splitter cable
combination. EAF44 Power Splitter included with EAF-100 Faucet when ordered as -LT (Less
Transformer) option. One (1) EAF-44 per faucet required.
EAF-1001 Mixer Handle Assembly and Cartridge (prior to 2004) Discontinued.
EAF100 faucets require EAF44 POWER SPLITTER in ganging (or daisy chain) application, one (1)
per faucet.
Electrical Connection for up to Six (6) Faucets
Using One (1) Adapter
(3)
6 VDC PLUG-IN
ADAPTER
(12) (12)
POWER POWER
SPLITTER SPLITTER
†
* EAF-100 faucets require use of EAF-44-A (12) Power Splitter in Ganging (Daisy Chain)
Applications, one (1) per faucet. When ordering EAF100 faucets, "-LT" version (Less
Transformer) includes one (1) EAF-44 power splitter.
Description
1.5 gpm (5.7 Lpm) Aerator Spray Head
2.2 gpm (8.3 Lpm) Aerator Spray Head
0.5 gpm (1.9 Lpm) Multi-Laminar Spray Head
0.35 gpm (1.3 Lpm) Spray Head (Multi-Lam)
Sensor Throat Plate Assembly; Plug-in Faucet
(Standard model with flush program button)
Sensor Throat Plate Assembly; Plug-in Faucet
(IC model with protruding program button)
100-240 VAC/6.75 VDC Plug-In Adapter (US)
Faucet Mounting Kit
Filter/Gasket for hose inlet (2 per pack)
Handle Repair Kit
15" (330 mm) Flexible Supply Hose (1)
Trim Plate for 4" Center-set Sink
Trim Plate for 8" Center-set Sink
Solenoid (Solenoid (6 mm hex recess))
11-13/16" (300 mm) Extension Cable
47-1/4" (1200 mm) Extension Cable
126" (3200 mm) Extension Cable
Power Splitter † , one (1) per faucet required
6 VDC Box Mount Adapter
100-240 VAC/6.75 VDC
90-264 VAC/6.75 VDC Plug-In Adapter
(EURO)
90-264 VAC/6.75 VDC Plug-In Adapter (UK)
Back Checks inserted above hoses (ISM
Faucets Only - Interchangeable)
Back Checks, 2 pack (3/8" OD)
Back Checks, 2 pack (3/8" OD)
TO ADDITIONAL
FAUCETS
(12)
(6 MAX.)
POWER
SPLITTER
† †
