Sloan OPTIMA I.Q. EAF-100 Series Installation Instructions Manual

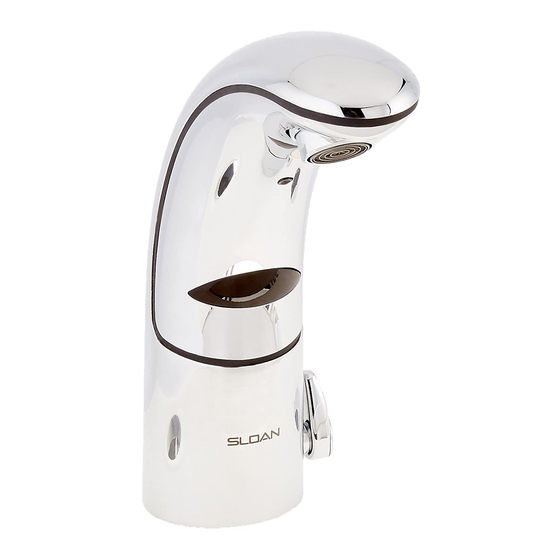

INSTALLATION INSTRUCTIONS FOR OPTIMA I.Q.
ELECTRONIC SENSOR ACTIVATED LAVATORY FAUCETS
EAF-100 Series
Adapter Powered, Sensor
Activated, Lavatory Faucets
EAF-150 Series
Battery Powered, Sensor
Activated, Lavatory Faucets
Sloan Valve Company warrants its Optima EAF-100 and EAF-150 Series Electronic Hand Washing Faucets to be made of first class materials, free from defects of material or workmanship under normal use and to perform the service for which
they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three years from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or parts
which prove to be thus defective if returned to Sloan Valve Company, at customer's cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labor, transportation or other incidental costs. This warranty
extends only to persons or organizations who purchase Sloan Valve Company's products directly from Sloan Valve Company for purpose of resale. This warranty does not cover the life of the battery.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
PRIOR TO INSTALLATION
Prior to installing the Sloan Optima EAF-100/150 Series Faucets, install the
items listed below. Also, refer to rough-in illustrations.
• Lavatory/sink
• Drain line
• Hot and cold water supply lines or pre-tempered water supply line.
Trim Plates
When the EAF Faucet is installed on a sink that has three (3) hole punchings, a
Trim Plate should be used. Trim Plates must be specified and ordered
separately.
ETF-607-A Trim Plate for 4" (102 mm) Centerset Sink
ETF-608-A Trim Plate for 8" (203 mm) Centerset Sink
TOOLS REQUIRED FOR INSTALLATION
• 13 mm open end wrench for male end of flex hose
• 13 mm open end wrench or nut driver for faucet retainer nut

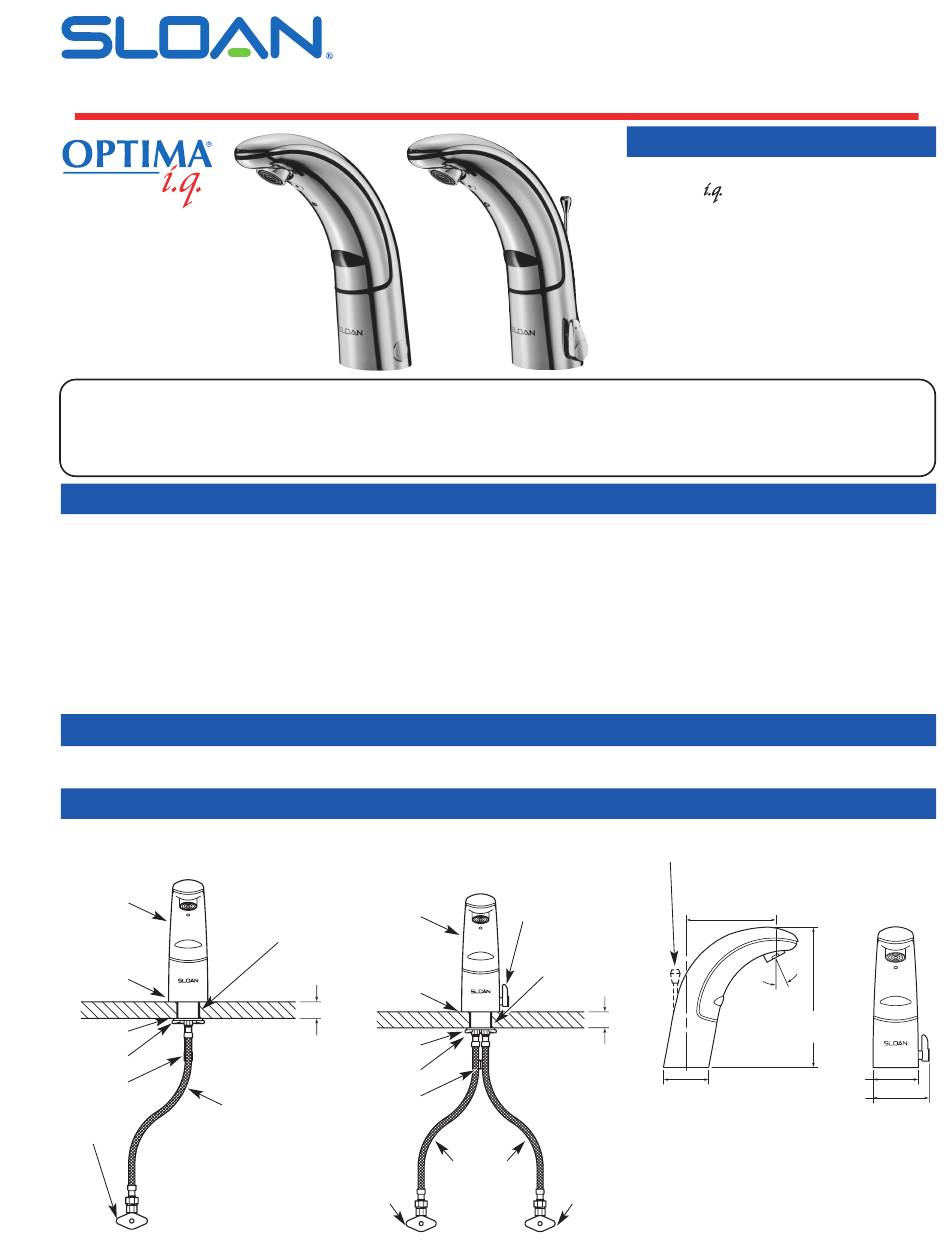

FAUCET ROUGH-IN
MODELS EAF-100/150
1.5 gpm (5.7 Lpm) Max. Flow Aerator
Faucets with Single Line Water Supply
SPOUT
O-RING
GASKET
RETAINER
NUT
13" (330 mm)
TEMPERED
LONG FLEX HOSE
SUPPLY
If a connection to separate hot
and cold water supplies is desired,
then a Bak-Chek
supplied) must be used prior to
connecting to the faucet.
MODELS EAF-100/150-ISM
MODELS EAF-100/150-ISM-DPU-IC
1.5 gpm (5.7 Lpm) Max. Flow Aerator
Faucets with Hot and Cold Water Supply
SPOUT
1-3/16" (30 mm)
MIN. DIA. HOLE
REQUIRED ‡
O-RING
1-1/2" (38 mm)
GASKET
MAX. DECK
RETAINER
THICKNESS ‡
NUT
HOT
® tee fitting (not
SUPPLY
LIMITED WARRANTY
Important:
• ALL PLUMBING SHOULD BE INSTALLED IN ACCORDANCE WITH APPLICABLE
CODES AND REGULATIONS.
• FLUSH ALL WATER LINES PRIOR TO MAKING CONNECTIONS.
• KEEP THREAD SEALANT OUT OF YOUR WATERWAY TO PREVENT
COMPONENT PART DAMAGE! DO NOT USE ANY SEALANT ON
COMPRESSION FITTINGS.
• 5/8" open end wrench for female end of flex hose (US)
• 3/4" open end wrench for female end of flex hose (International)
MIXING VALVE (Can Be
Set and Removed)
1-3/16" (30 mm)
MIN. DIA. HOLE
REQUIRED ‡
1-1/2" (38 mm)
MAX. DECK
THICKNESS ‡
13" (330 mm)
COLD
LONG FLEX
SUPPLY
HOSES
FAUCET VARIATIONS
-ISM Integral Spout Mixer
-IC -Click Feature
-DPU Drain Pop Up
-P Plug-in Transformer/Adapter
(EAF-100 Series)
-LT Less Transformer/Adapter
(EAF-100 Series)
POP UP — MODELS EAF-100/150-ISM-DPU-IC
ONLY
5-9/16"
(142 mm)
24º
6-7/8"
(175 mm)
2-3/8
2-3/8
2-3/4
(60 mm)
‡ When installing the Faucet on a three (3) hole
sink, make sure that the center hole is large
enough to accommodate the Faucet shank. A 1-
3/16" (30 mm) minimum diameter hole is
required. NOTE: A 1-7/32" (31 mm) Diameter
hole is required if the deck is greater than 1/2"
(13 mm) thick.
Code No. 0816542
Rev. 3 (02/11)
(60 mm)
(70 mm)
