Friedrich PDXWSEZ Installation Instructions

Snap-kit wall sleeve for use with packaged terminal units

Download this manual

PDXWSEZ

Model

Installation Instructions

EZ ASSEMBLY WALL SLEEVE

For Use With Packaged Terminal Units

Please read these instructions completely before attempting installation.

NOTE: These instructions apply to installation of the wall sleeve only through walls structurally adequate to support the

unit (i.e. sleeve, chassis, accessories.) If wall is not structurally adequate, a subbase or other means of support MUST

be made.

Need help?

Do you have a question about the PDXWSEZ and is the answer not in the manual?

Page 1 PDXWSEZ Model Installation Instructions EZ ASSEMBLY WALL SLEEVE For Use With Packaged Terminal Units Please read these instructions completely before attempting installation. NOTE: These instructions apply to installation of the wall sleeve only through walls structurally adequate to support the unit (i.e.

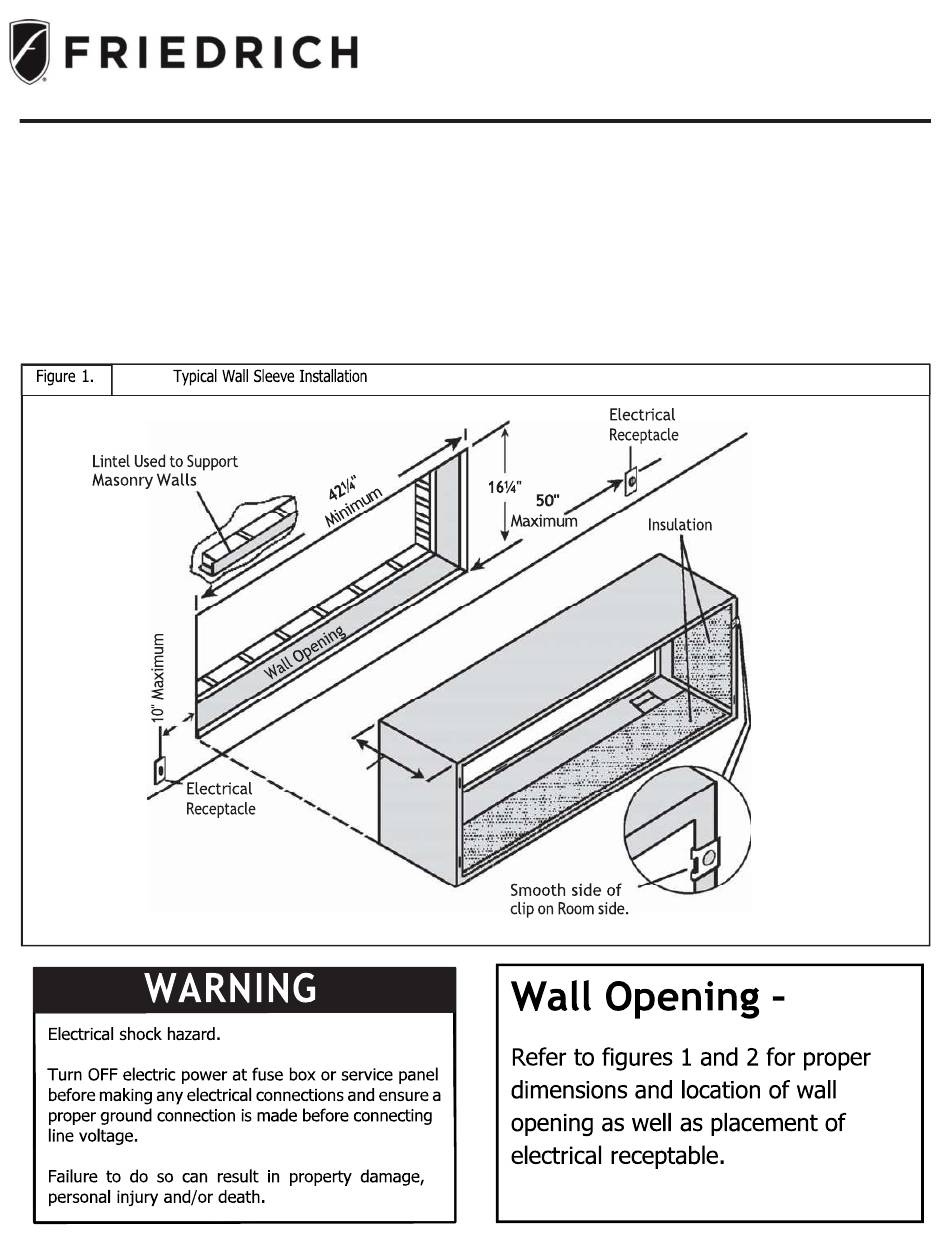

Page 2 PDXWS(EZ) Wall Sleeve Assembly Figure 1: Set Bottom Panel on a clean, flat and level surface. Figure 2: Locate Left Side Panel. Align panel in the left Bottom Panel slot. Fully inset Left Panel into Bottom Panel until locking tabs engage.
Page 3 Drain Kit 3. Drill two 3/16 A field supplied condensate drain kit is required for total approximately 4 from top and 4 from bottom of elimination of cooling or heat pump condensate. When sleeve. Screw four #10 x 1 (included) or installing a condensate drain kit, (either internal or external appropriate fasteners for your installation, through drain), it s recommended that installation of the drain kit be...
Page 4 Figure 3. Lintel Installation MAIN STUDS JACK STUD LINTEL MOUNTING SCREW HOLE No holes are permitted in the bottom of the case. (Exception: PXDR10 Drain Kit) Note the use of a lintel under the first course of bricks above the wall sleeve. Do not use the wall sleeve as a lin- tel. The mounting screw holes shown are to be made by the installer.
