Installation Instructions
DRAIN PAN
For VEA24, VHA18, and VHA24 units only.
Please read these instructions completely before attempting installation.
NOTE: This drain pan must be installed with all VEA24, VHA18 and VHA24 units.

STEP 1: CUT OPENING IN GASKET

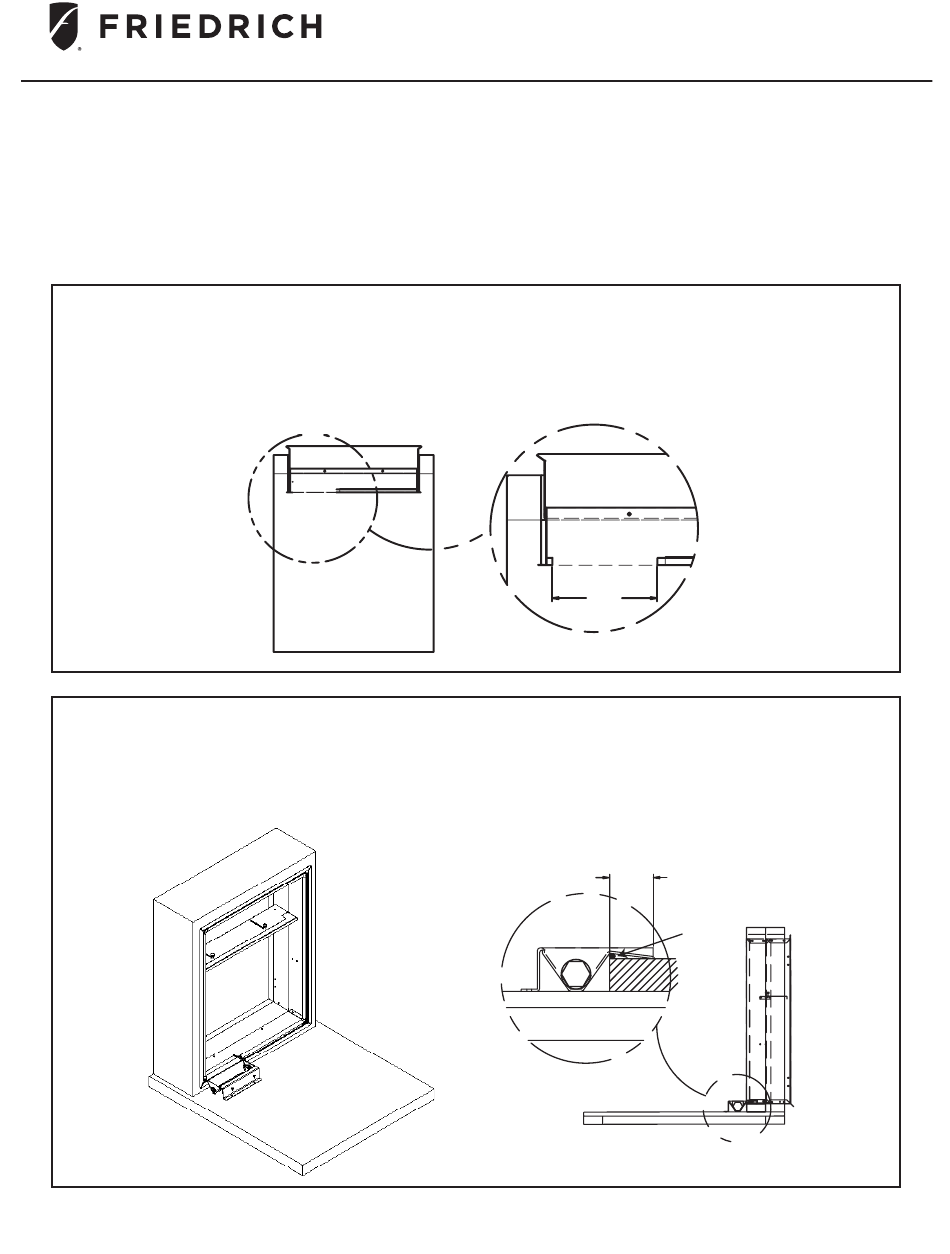

Remove an 8" portion of the weather seal gasket from the bottom left surface of the plenum.
To remove: Cut the gasket in the lower left corner of the plenum. Then make a second cut 8" from the left
corner. The gasket should peel away from the plenum leaving a clean mounting surface (See detail A).

STEP 2: SEAL AND SET PAN

Prior to placing the drain pan into the opening run a 1/4" bead of sealant the entire width of the removed
gasket. The secondary overflow lip must extend into the plenum to prevent water leaks. The pan should
be mounted against the 3/4" flange of the plenum, refer to view A.
920-150-01 (8-17)
A
8.00
DETAIL A
2.00
A
Sealant
Model VPDP1
B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VPDP1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Friedrich VPDP1

Summary of Contents for Friedrich VPDP1

  • Page 1 Model VPDP1 Installation Instructions DRAIN PAN For VEA24, VHA18, and VHA24 units only. Please read these instructions completely before attempting installation. NOTE: This drain pan must be installed with all VEA24, VHA18 and VHA24 units. STEP 1: CUT OPENING IN GASKET Remove an 8"...
  • Page 2 STEP 3: INSTALL DRAIN PAN Attach the drain pan to the closet floor with the appropriate field supplied hardware. IMPORTANT - To prevent water leaks use only the factory supplied mounting holes. NEVER make penetrations in the drain pan itself. STEP 4: INSTALL DRAIN PLUG The drain pan comes with both left and right-hand drain connections locations.
  • Page 3 STEP 5: INSTALL DRAIN LINE Condensate line routing options are shown below. Choose the one that best suits your installation. Never run the condensate line as shown in Option 4 below, as the drain line will come into contact with the factory-installed isolators beneath the unit.
  • Page 4 FRIEDRICH AIR CONDITIONING CO. 10001 Reunion Place, Suite 500 (210) 546-0500 www.friedrich.com 920-150-01 (8-17)
