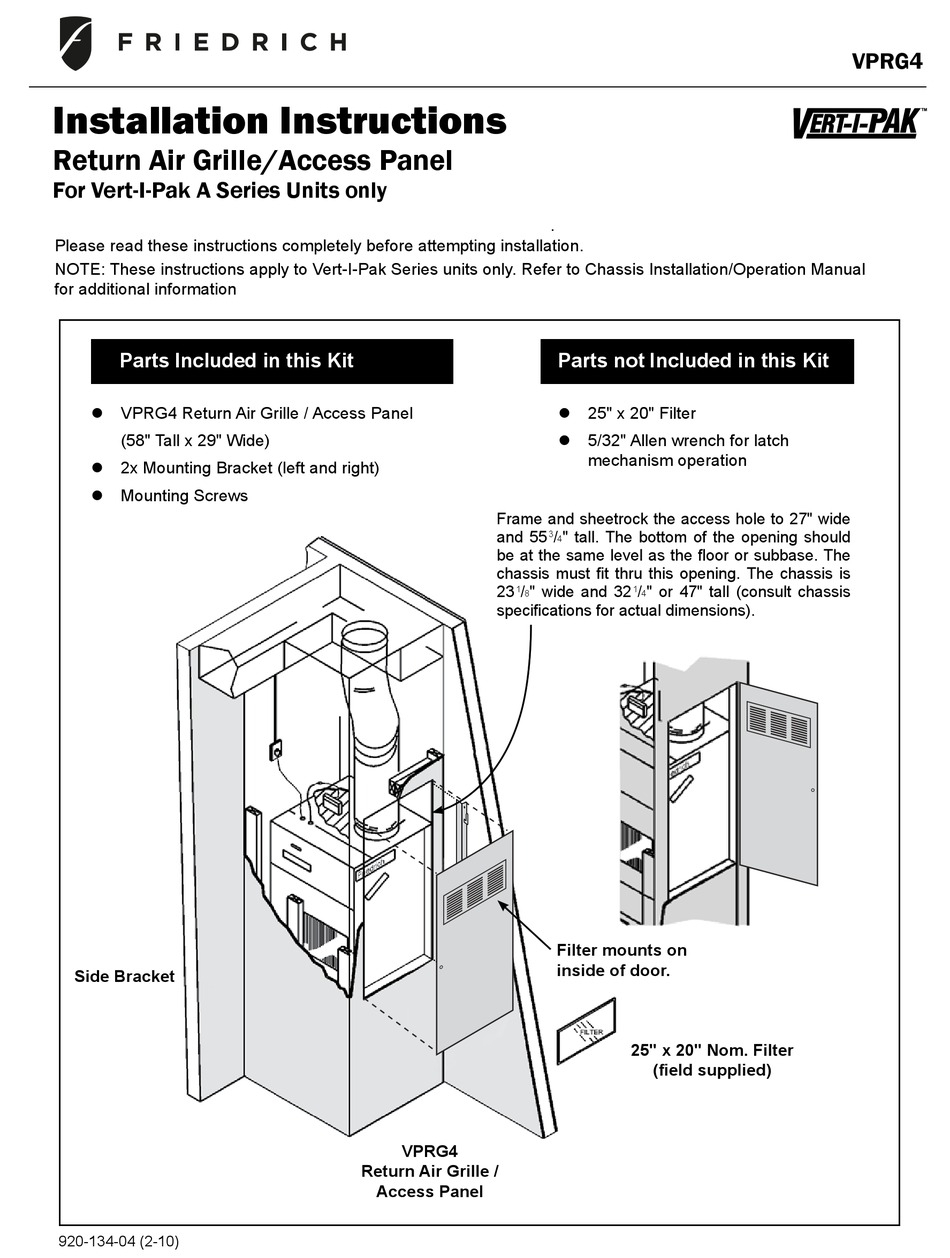

Installation Instructions
Return Air Grille/Access Panel
For Vert-I-Pak A Series Units only
Please read these instructions completely before attempting installation.
NOTE: These instructions apply to Vert-I-Pak Series units only. Refer to Chassis Installation/Operation Manual
for additional information
Parts Included in this Kit
VPRG4 Return Air Grille / Access Panel
(58" Tall x 29" Wide)
2x Mounting Bracket (left and right)
Mounting Screws
Side Bracket
920-134-04 (2-10)
Frame and sheetrock the access hole to 27" wide
and 55
be at the same level as the floor or subbase. The
chassis must fit thru this opening. The chassis is
23
/
" wide and 32
1
8
specifications for actual dimensions).
VPRG4
Return Air Grille /
Access Panel
.
Parts not Included in this Kit
25" x 20" Filter
5/32" Allen wrench for latch
mechanism operation
/
" tall. The bottom of the opening should
3
4
/
" or 47" tall (consult chassis
1
4
Filter mounts on
inside of door.
25" x 20" Nom. Filter
(field supplied)
VPRG4
