FRIEDRICH
Installation Instructions
Lateral Duct Accessory Kit
For Use with F Series Packaged Terminal Air Conditioner or Heat Pump
Introduction:
These instructions cover the installation of the Lateral Duct Accessory Kit for Packaged Terminal Air
Conditioner (PTAC) units. Please read these instructions completely before attempting installation.
Package Contents
(See Fig 1):
ITEM
Plenum
Extension Duct
Extension Duct Wall Trim Kit
Wall Register
End Cap
Attachment Screws
Right Support Bracket
Left Support Bracket
Tools Required: Power drill, 1/8" drill bit, hacksaw, Phillips screwdriver and utility knife.
General
The Lateral Duct Accessory Kit allows one PTAC unit to heat or cool two rooms. The kit mounts to
the wall sleeve and can be installed for either right or left side duct applications. The amount of air
that can be diverted to an adjoining room is adjustable from 20 to 30 percent. (See Table 1)
BAFFLE POSITION
Position 1 (factory default)
Position 2
Position 3
Pre-lnstal lation
Consider the following before installing the Lateral Duct Accessory:
•
Maximum duct extension length is 4 feet.
•
Duct run must be straight and horizontal; no bends or turns.
•
Minimum recommended clearance between unit and adjoining room wall is 6 inches.
•
Provisions must be made for return air from the adjoining room.
•
The PTAC unit does not have to be removed for lateral duct installation.
PDXDAA & PDXDEA

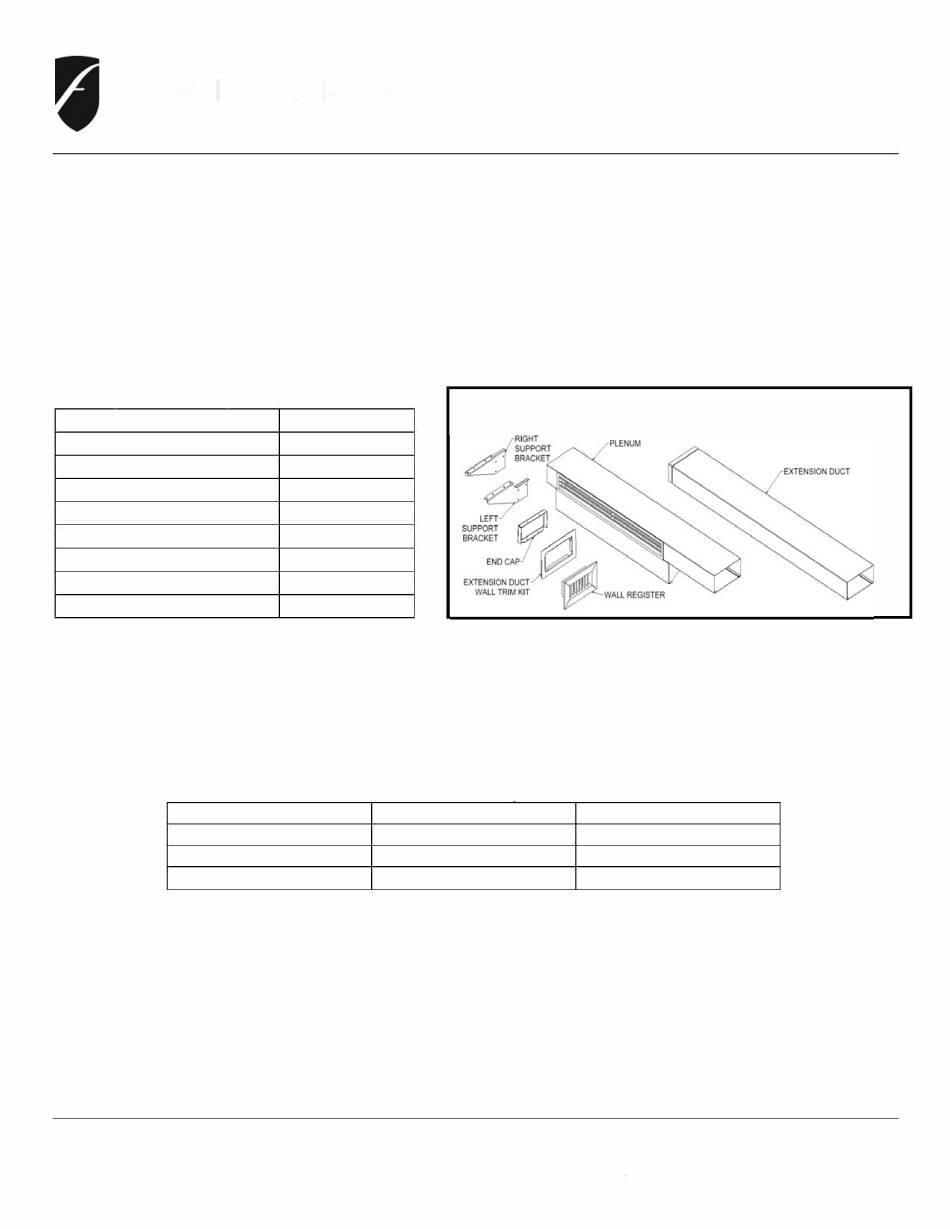

Figure 1- Components for Lateral Duct Accessory Kit
QUANTITY
1
1
1
1
1
14
1
1
-
ow
T bl 1
a e
A"rfl
I
UNIT FRONT
80%
75%
70%
PTAC Direct Sales, Inc.
185 S. Kimball Ave. Suite 130
Southlake, TX 76092 877.454.7822 (T)
www.PTACdirect.com
Model PDXDAA & PDXDEA
Ad"
IJus mens
t
t
ADJACENT ROOM
20%
25%
30%
Pg 1/5
Advertisement
Table of Contents
Related Manuals for Friedrich PDXDAA
Summary of Contents for Friedrich PDXDAA
- Page 1 FRIEDRICH Model PDXDAA & PDXDEA Installation Instructions Lateral Duct Accessory Kit For Use with F Series Packaged Terminal Air Conditioner or Heat Pump Introduction: These instructions cover the installation of the Lateral Duct Accessory Kit for Packaged Terminal Air Conditioner (PTAC) units. Please read these instructions completely before attempting installation.
- Page 2 FRIEDRICH Model PDXDAA & PDXDEA 4. Secure bracket (be sure to use correct bracket Installation as there is a left and right bracket) with 3 screws provided. Do not over tighten. See Fig. 4. WARNING Figure 4 - Support Bracket Attached to Wall Sleeve �I...
- Page 3 FRIEDRICH Model PDXDAA & PDXDEA Figure 7 - Side View Showing Measurements 7. Remove and discard discharge grille by for Extension Opening removing attachment screws from inside of 1/8" •--X--- front panel. See Fig 6. Figure 6 - Back View of Front Panel...
- Page 4 FRIEDRICH Model PDXDAA & PDXDEA NOTE: The final length of duct may be cut to up to 17. Mount extension duct by sliding extension duct � in. short of outside of wall opening as the into the wall opening (or previously installed Wall Register inner flange will cover this �...
- Page 5 See Table 1. 24. Replace plenum discharge grille. The Installation of the Lateral Duct Accessory Kit is now complete. Thank you for purchasing this Friedrich accessory. Please contact us if you have comments or questions. PDXDAA & PDXDEA Pg 5/5 PTAC Direct Sales, Inc.
