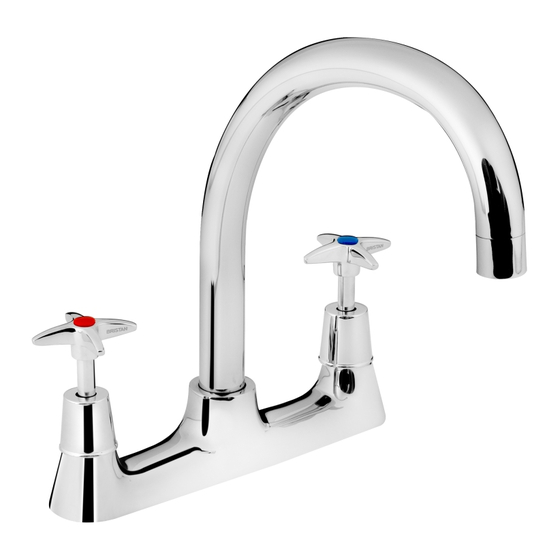

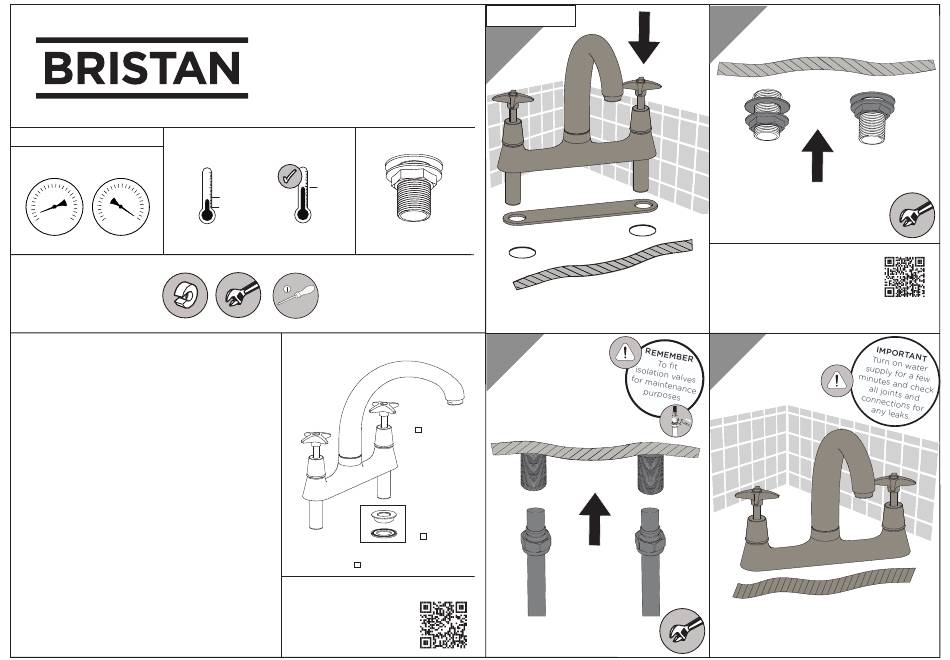

Bristan VAX DSM C Installation Instructions & User Manual

Specifications
Cold Water Supply
Dynamic Water Pressure
Min: 0.2 bar
Max: 5.0 bar
3.0 3.0
2.0 2.0
1.0 4.0 1.0 4.0
5.0 5.0
0. 0.
Pressure Pressure
BAR BAR
Min: 5°C Max: 25°C
Maximum Static Pressure: 10.0 bar
Tools You'll Need
Pipe Cutter
Prior to Installation
All products manufactured and supplied by Bristan are safe to use
provided that they are installed, operated and receive regular
maintenance in accordance with these instructions.
This product needs to be installed in accordance with, and meet the
requirements of the Water Supply (Water Fittings) Regulations 1999
and current by-laws. For full Installation Requirements & Notes (IRN)
please visit wras.co.uk/directory.
Isolation valves must be fitted to the inlet water supplies to ensure
ease of future maintenance.
Before installing this product the water supply must be
thoroughly flushed in order to remove any swarf, solder etc.
This product must not be modified in any way as this will
invalidate the guarantee.
Full access must be made available for future
maintenance/servicing purposes.
If in doubt, contact a registered plumber or your Local Water
Authority or the Secretary of the Institute of Plumbing,
address as follows:-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex,
RM12 6NB, Tel: 01708 472791
Installation Instructions
& User Guide
Please leave these instructions
with the end user
Product Code: VAX DSM C (D3)
Inlet Water Temperature Inlet Connections
Hot Water Supply
60°C
25°C
5°C
60°C Recommended
Adjustable Spanner Flat Screw Driver
Pack Contents
x2
Spare Parts
To replace any spare parts
for your tap, why not
scan the QR Code or
visit www.bristan.com
and search for your product.
Installation
1
1/2" BSP
ensuring the plinths are
3
x1
Hot
x2
Connect the hot and cold water
supplies to the threaded tails.
2
Secure the taps to the basin by
using the washer and metal
backnut below the basin.
Servicing Your Tap
We recommend servicing your tap at least
once every year to prolong its life. To see a
Fit the tap to the bath, video showing how to remove the cartridge
for servicing, scan the QR code with your
smart phone or tablet.
in place.
Alternatively visit www.youtube.com/BristanTV
4
Cold
Turn on the water supply.
