Bristan QD SHXSMFF C D3 Installation Instructions & User Manual

Bristan QD SHXSMFF C D3 Installation Instructions & User Manual

Advertisement

Quick Links

Specifications
Cold Water Supply
Working Pressures
Min: 0.2 bar
Max: 5.0 bar
3.0
2.0
3.0
2.0
4.0
1.0
1.0
4.0
Min: 5°C Max: 25°C
0.2
5.0
5.0
0.2
Pressure
Pressure
BAR
BAR
Factory pre-set
Maximum Static Pressure: 10.0 bar
42°C
Tools You'll Need
Pencil
Flat head
Drill
Screwdriver
Prior to Installation
All products manufactured and supplied by Bristan are safe to use provided that
they are installed, operated and receive regular maintenance in
accordance with these instructions.
This product needs to be installed in accordance with, and meet the
requirements of the Water Supply (Water Fittings) Regulations 1999 and
current by-laws. For full Installation Requirements & Notes (IRN) please
visit wras.co.uk/directory.
Isolation valves must be fitted to the inlet water supplies to ensure ease of future
maintenance.
Before installing this product the water supply must be thoroughly flushed in
order to remove any swarf, solder etc.
This product must not be modified in any way as this will invalidate the
guarantee.
Full access must be made available for future maintenance/servicing purposes.
Before drilling into walls, check that there are no hidden electrical wires,
cables or water supply pipes. This can be checked with the aid of an
electronic detector.
If power tools are used do not forget to:
- Wear eye protection
- Unplug equipment after use
If in doubt, contact a registered plumber or your Local Water Authority or
the Secretary of the Institute of Plumbing, address as follows:-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex,
RM12 6NB, Tel: 01708 472791
Installation Instructions
& User Guide
Please leave these instructions
with the end user

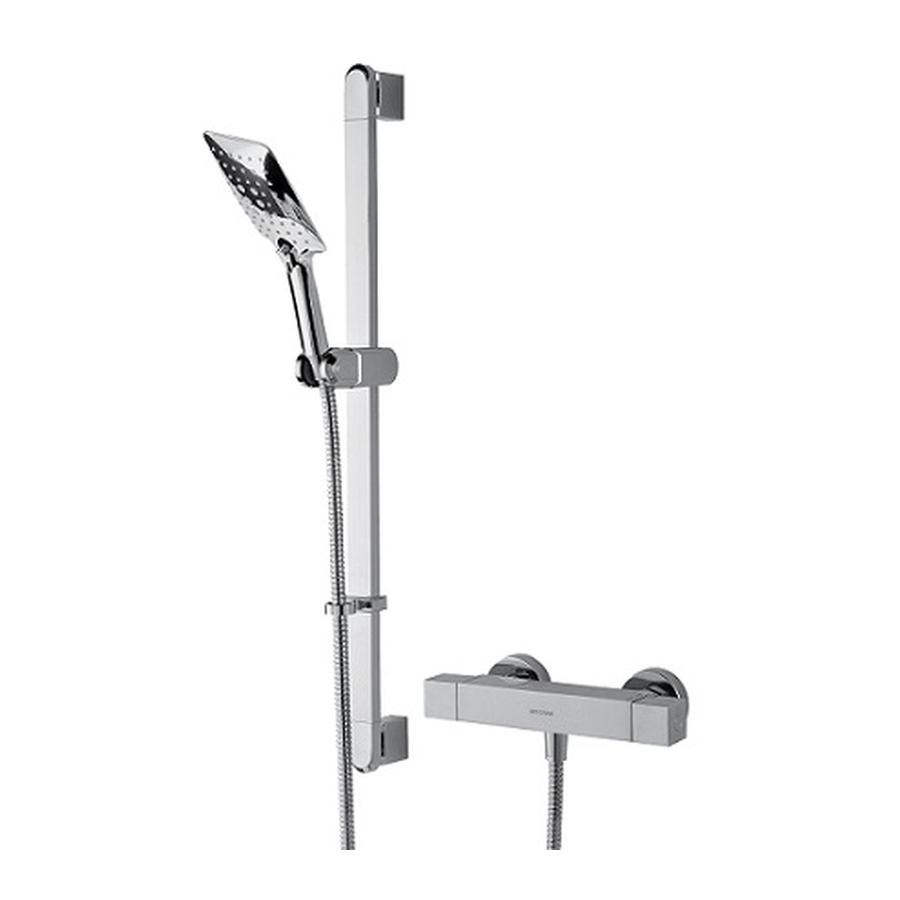

Product Code: QD SHXSMFF C (D3)
Inlet Water Temperature
Hot Water Supply
65°C
25°C
60°C
5°C
60-65°C Recommended
IMPORTANT
The inlet hot water must
be at least 10°C above the
required blend temperature.
Cross head
Adjustable
Pipe Cutter
Hexagonal Keys
Screwdriver
Spanner
Pack Contents
x1
x1
x1
x1

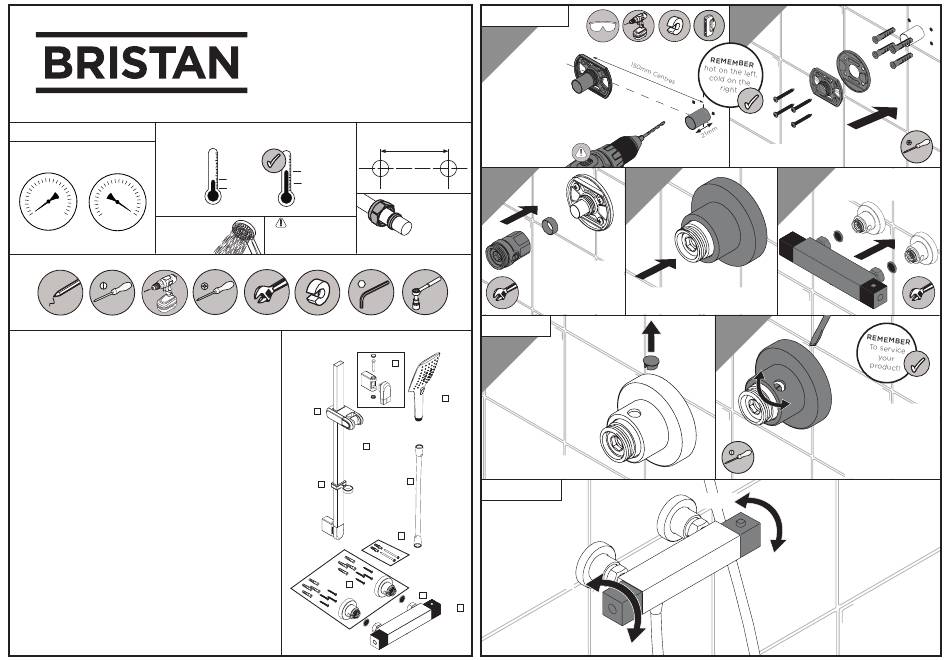

Installation
1
Identify the
required position of
the valve and prepare
the water supply pipes.
Supply pipes should
be 150mm apart.
Inlet Dimensions
Using the backplate
supplied with the
150mm
wall mount, mark
Centres
and drill holes.
3
Inlet Connections
15mm
Compression
Secure the isolators
onto the backplates;
ensuring the olives
are positioned
over the pipework
Socket Spanner
Isolation
1
x2
x1
Remove the concealing
cap from the shroud.
x1
Operation
x1
On
On
x2
x1
2
Secure the rubber and metal
4
Secure the shrouds against
the rubber fixing plates.
correctly.
2
Hot
Hot
Off
Off
backplates into place.
5
Secure the shower to
the wall mount, ensuring
filters are in place.
Rotate the shroud until
the opening aligns with
the isolation screw.
Turn the screw to isolate
the water. Reverse the
process when turning
the water back on.
Cold
Cold
