Bristan VAL2 DSM C CD Installation Instructions & User Manual

Specifications
Dynamic Water Pressure Inlet Water Temperature
Max: 5.0 bar
Min: 0.2 bar
2.0 3.0
1.0
4.0
0 5.0
Pressure
BAR
Maximum Static Pressure: 10.0 bar Maximum Hot 60°C
Pack Contents

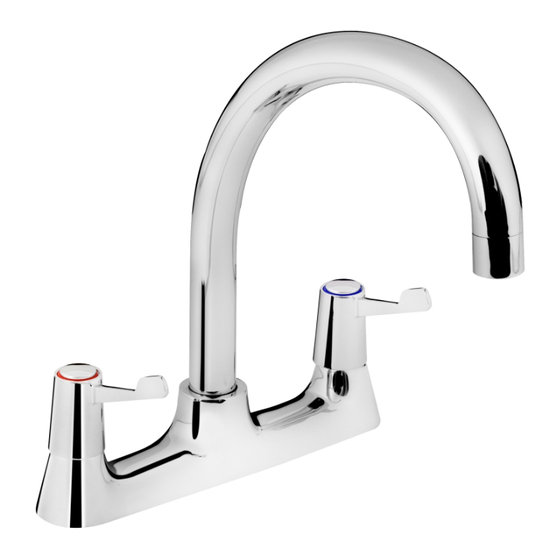

x1 Lever Deck Sink Mixer
Tools Required for Installation/ Maintenance
x1
Gasket Washer
x2 Washer
x2
Backnut Adjustable Spanner
Prior to Installation
All products manufactured and supplied by Bristan are safe to use provided that they are installed, operated and
receive regular maintenance in accordance with these instructions.
This product needs to be installed in accordance with, and meet the requirements of The Water Supply (Water
Fittings) Regulations (Northern Ireland) 2009 and The Water Supply (Water Fittings) (Scotland) Byelaws 2014.
For full Installation Requirements & Notes (IRN) please visit www.wrasapprovals.co.uk/approvals-directory
Isolation valves must be fitted to the inlet water supplies to ensure ease of future maintenance.
Before installing this product the water supply must be thoroughly flushed in order to remove any swarf, solder etc.
Full access must be made available for future maintenance/servicing purposes.
This product must not be modified in any way as this will invalidate the guarantee.
Installation Instructions
& User Guide
Please leave these instructions
with the end user
Product Code: VAL2 DSM C CD (D2)
Inlet Connections Outlet
60°C
Housed M22
1/2" BSP
Flow Straightener
Operation
360°
Swivel
Hot
On
25mm
Size 1
Pipe Cutter Philips Head Box Spanner
Screwdriver (Inlets)
Spare Parts
To replace any spare parts
for your tap, why not
scan the QR Code or
visit www.bristan.com
and search for your
Installation
1
Place the gasket on the sink
over the tap holes
Then feed the legs through
the gasket and tap holes
3
Cold
On
Connect the hot and cold
water supplies to the
threaded tails.
17mm
Socket Spanner
(Cartridge)
Hot
product.
2
Secure the taps to the sink by
using the washer and metal
backnut below the sink.
4
Cold
Turn on the water supply.
