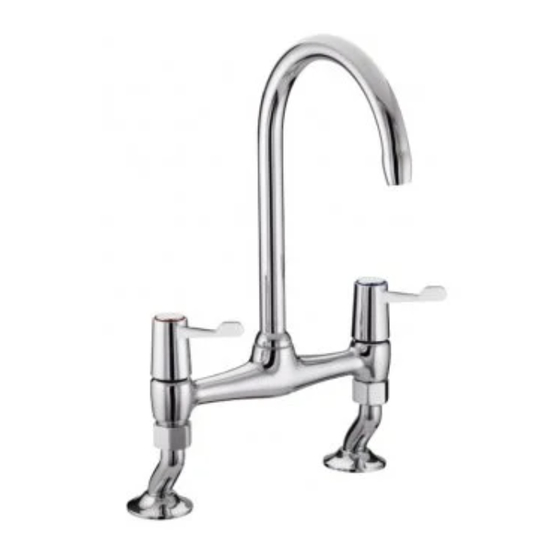

Bristan VAL2 BRDSM C CD Installation Instructions & User Manual

Specifications
Maximum Inlet Water Temperature
60-65°C
Maximum Static Pressure: 10.0 bar
recommended
Crosshead Screwdriver
Prior to Installation
All products manufactured and supplied by Bristan are safe
provided they are installed, used correctly and receive regular
maintenance in accordance with these instructions.
This product has been tested to the Water Regulations Advisory
Scheme (WRAS) and satisfies the requirements of the Water
Supply (Water Fittings) Regulations 1999 and current bylaws.
For full Installation Requirements & Notes (IRN)
please visit wras.co.uk/directory.
We recommend isolation valves to be fitted to the inlet water
supplies to ensure ease of future maintenance.
Before installing these taps the water supply must be thoroughly
flushed in order to remove any swarf, solder etc.
This product must not be modified in any way as this will
invalidate the guarantee.
Installation Instructions
& User Guide
Please leave these instructions
with the end user
Product Code: VAL2 BRDSM C CD (D2)
Dynamic Water Pressure
Min: 0.2 bar Max: 5.0 bar
3.0
2.0 3.0
2.0
4.0
1.0 4.0
1.0
0.2 5.0
0.2 5.0
Pressure
Pressure
BAR BAR
Tools You'll Need
Adjustable Spanner Flat Screwdriver Pipe Cutter
Pack Contents
2
x
2
x
Spare Parts
To replace any spare parts
for your tap, why not
scan the QR Code or
visit www.bristan.com
and search for your product.

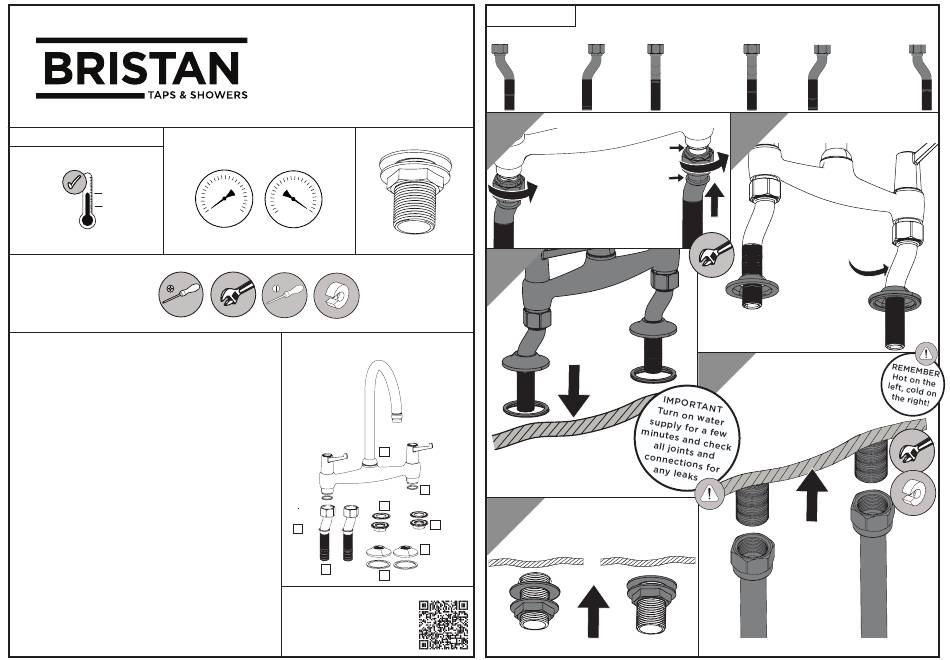

Installation
Choose your desired leg position for the correct inlet centres.
160
mm
1
Inlet Connections
Screw the legs to the tap
washers and lower o'ring
1/2"BSP
3
1
x
Place the washers over
tap holes and feed the tap
through the holes
2
x
2 4
x
2
Secure the taps to the sink by
x
using the washer and metal
backnut below the sink.
2
x
2
x
200
mm
body, ensuring the top
are in place.
5
240
mm
2
Screw the plinths on
to the tap legs.
Connect the hot and
cold water supplies to
the threaded tails.
