7.1

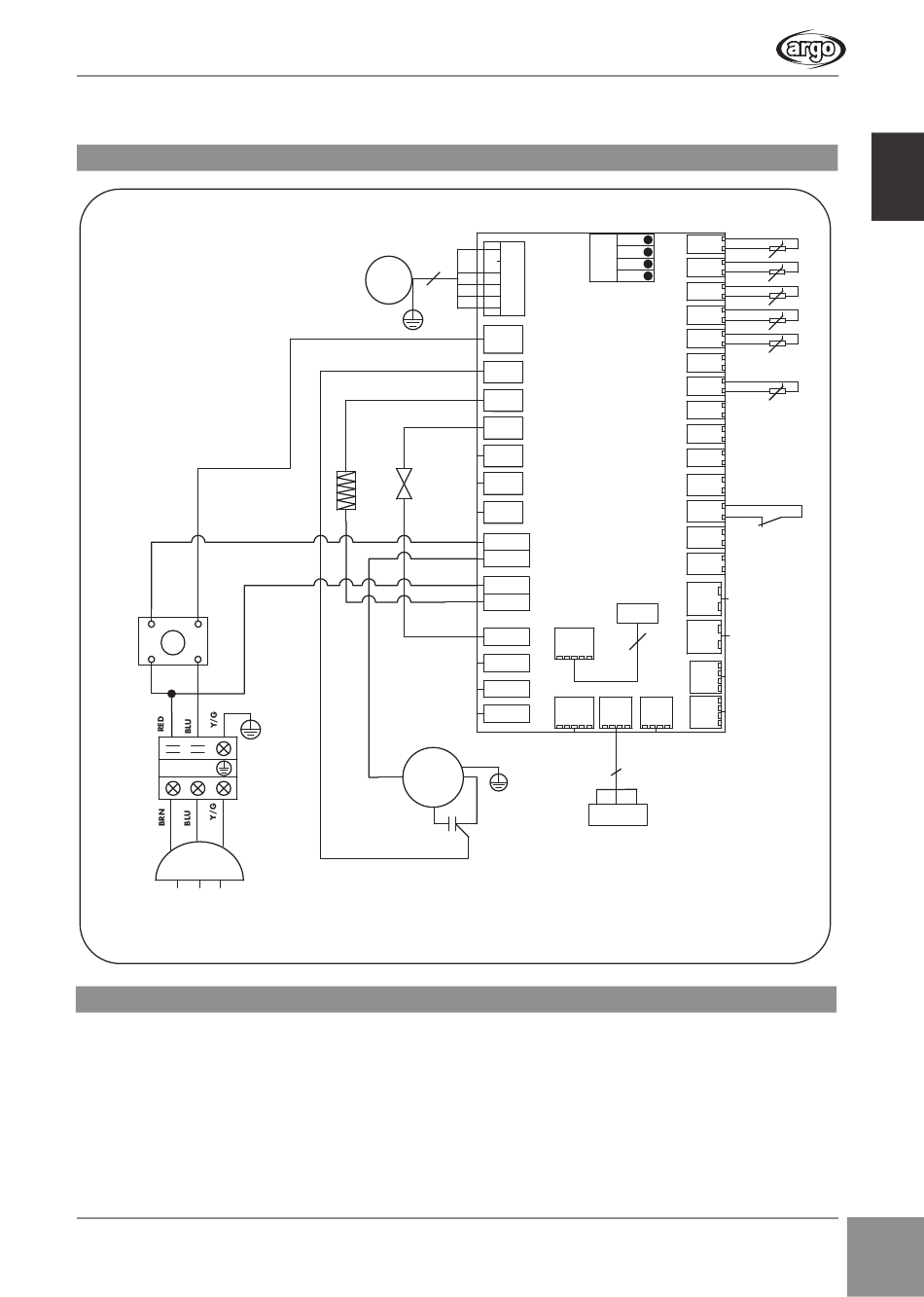

Wiring diagram for models APHPDHW300S and APHPDHW200

AT：Ambient temperature
BTT：Bottom of tank temperature
COMP：Compressor
CT：Coil temperature
EEV: Electronic expand valve
E2V： Electromagnetic 2 way valve
ET：Exhaust temperature
FM：Fan motor
HP：High pressure protection
SUT：Suction temperature
TTT：Top of tank temperature
2 4
2 4
MTS
RESET
1 3
1 3
L
L N
TO POWER SUPPLY
230V~/50Hz

7.2 PV contact

Contact AN10 can be used for Photovoltaic (PV) signal.
It's a dry contact which, when closed, makes
program switch from parameter R01 to parameter R14
for the hot water set point. This allows to set R14 higher
than R01, for storing more heat in the tank while the PV
system supplies electricity.
The same contact can be used for Smart Grid signals,
being sent from power companies when there is low
price supply of electricity. This enables the heat pump to
reduce even more the heating costs.
WIRING DIAGRAM
FM 5
CN1
Y/G
4
ACN
N1
N1
N2
N2
N3
N3
N4
N2 N3
E2V
N5
HT
E2V
N6
L1
2
ACL
CC
LOUT1
L
ACL
L1
LOUT2
E2V
LOUT3
LOUT4
LOUT5
LOUT6
Y/G
COMP
CC
CC CR
BLK
CR
WHT
CS
CS
N1
RED C1
the
12V
AN01
GND
CN2
5V
AN02
GND
AN03
AN04
AN05
AN06
AN07
AN08
AN09
PC1006
AN10
AN11
AN12
AN13
AN14
OUT1
EEV
5
OUT2
CN6
CN4
CN9 CN8 CN7
CN5
4
Controller
The type of fuse is 5×20_5A/250VAC
EN
AT
t
5K
t BTT
5K
TTT
t
5K
CT
t
5K
SUT
t
5K
ET
t
50K
HP
