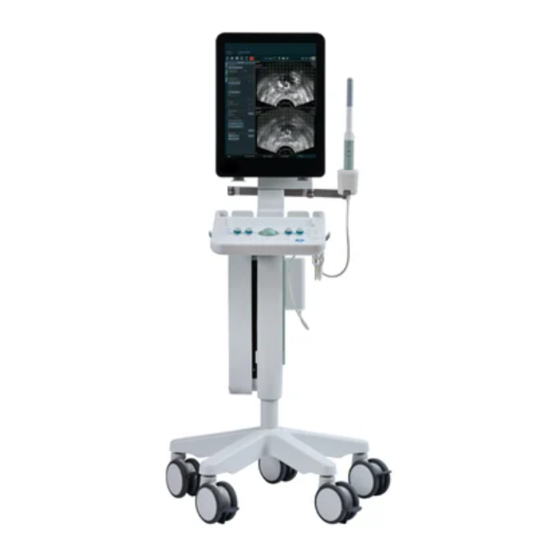

bkFusion TR Steps
Patient, Transducer,
Preset Modifications
The top controls for altering exam information
is inactive when using bkFusion. You will not
be able to modify the following:
Enter Patient ID
Change Transducer
Change Preset
If you have any issues or problems using
bkFusion, please contact your BK Medical
representative.
BK Medical Aps, Mileparken 34, 2730 Herlev, Denmark. T +45 4452 8100

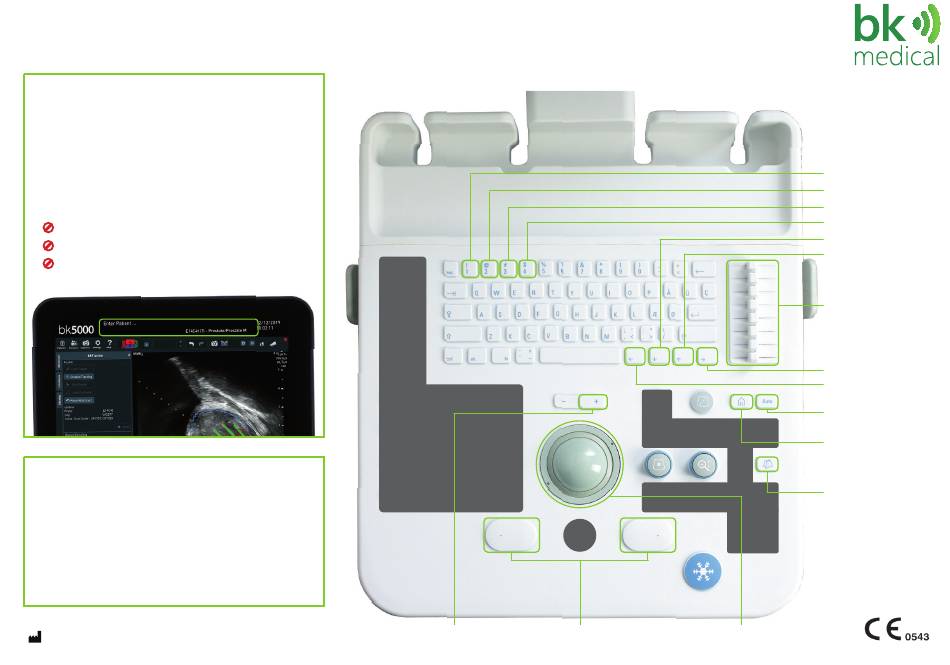

Quick Guide
Keyboard functions with bkFusion for bk3000/bk5000
Right mouse click
Left mouse click
Reset zoom
Zoom in
Zoom in more
Zoom out
Scroll down
Scroll up
TGC
Next page
Previous page
Adjust the TGC
to default level
Return to
default preset
Change
planes on the
transducer
Trackball
