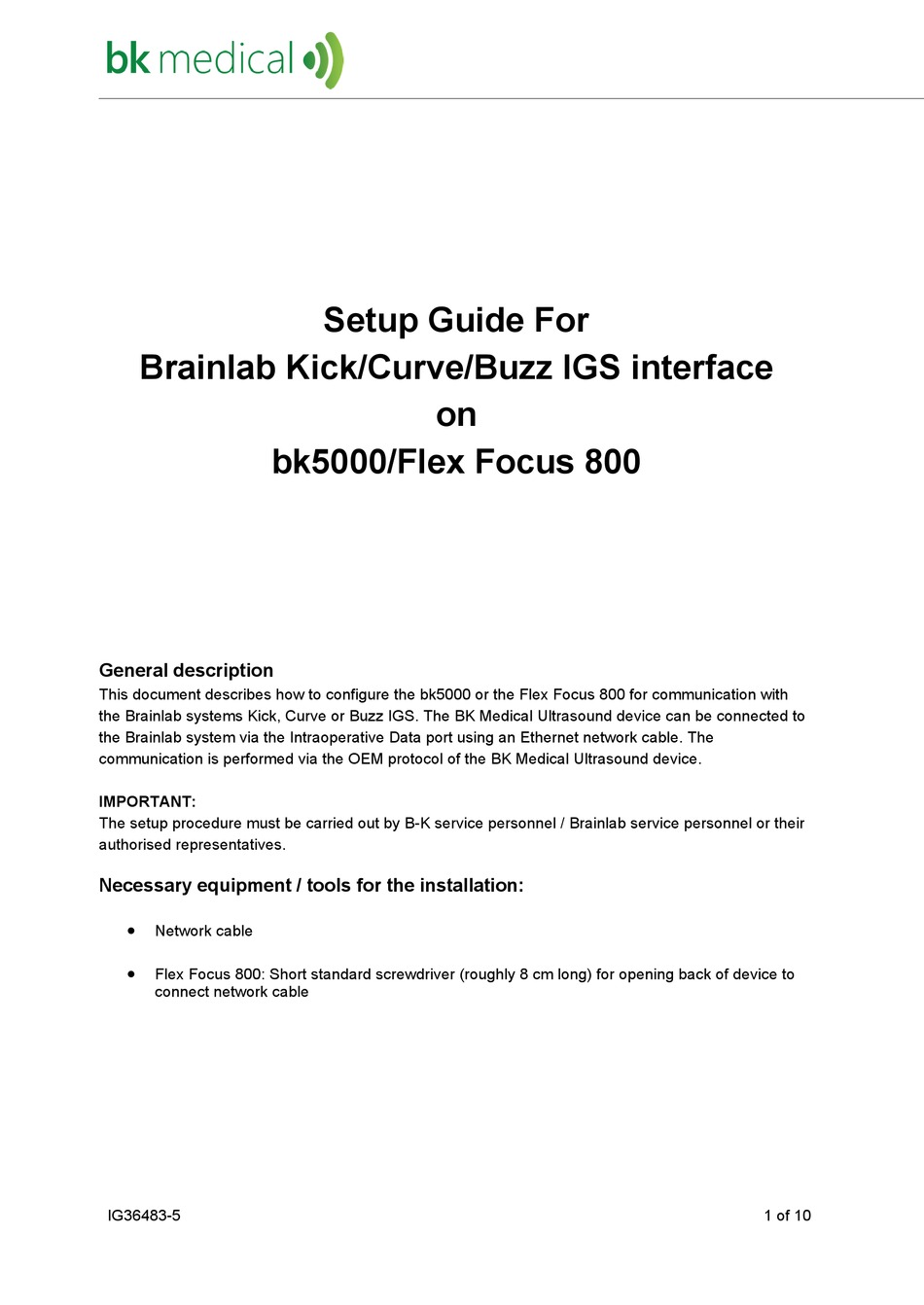

Brainlab Kick/Curve/Buzz IGS interface
bk5000/Flex Focus 800
General description
This document describes how to configure the bk5000 or the Flex Focus 800 for communication with
the Brainlab systems Kick, Curve or Buzz IGS. The BK Medical Ultrasound device can be connected to
the Brainlab system via the Intraoperative Data port using an Ethernet network cable. The
communication is performed via the OEM protocol of the BK Medical Ultrasound device.
IMPORTANT:
The setup procedure must be carried out by B-K service personnel / Brainlab service personnel or their
authorised representatives.
Necessary equipment / tools for the installation:
Network cable
Flex Focus 800: Short standard screwdriver (roughly 8 cm long) for opening back of device to
connect network cable
IG36483-5
Setup Guide For
on
1 of 10

Advertisement

loading
Need help?

Need help?

Do you have a question about the bk5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BK Medical bk5000

Summary of Contents for BK Medical bk5000

  • Page 1 Focus 800 General description This document describes how to configure the bk5000 or the Flex Focus 800 for communication with the Brainlab systems Kick, Curve or Buzz IGS. The BK Medical Ultrasound device can be connected to the Brainlab system via the Intraoperative Data port using an Ethernet network cable. The communication is performed via the OEM protocol of the BK Medical Ultrasound device.

  • Page 2: Installation Preparations

    Installation preparations 1. The BK Medical Ultrasound device must be equipped with the following items: Scanner Flex Focus 800 bk5000 SW Version 4.10.x 5.14.8 5.16.2 (distribution build number (min.) must be 6.7.20524.17) Brainlab UA1518 Neuro Pro  UA2334  UA2334 Brainlab Neuro Navigation...
  • Page 3 1 Network and OEM Configuration 1.1 Verify licenses and firmware 1. Connect the network cable from the Intraoperative port on the Kick / Curve / Buzz IGS to the LAN port on the bk5000 / Flex Focus 800 bk5000 Flex Focus 800...
  • Page 4 8. Check the “Console Software” of the BK SW version If the Console SW does not comply with the table in page 2, please contact your BK Medical authorized service personnel to upgrade the SW on the BK Medical Ultrasound device.
  • Page 5 Note: for being able to communicate, the IP address of the Brainlab Navigation systems’ Intraoperative Data port and the IP address of the BK Medical Ultrasound device need to be in the same subnet and need to have the same subnet mask! You can use e.g. the same IP address +/- 1 at the end [e.g.
  • Page 6 1.4 How to Set the Brainlab Preset to Default (only on Flex Focus 800 or bk5000 (SW 5.14.8)) Whenever available, you should set the “Brainlab” preset as the default imaging preset. This helps to give a better overlay in the ultrasound software. Otherwise choose another “Neuro” preset as default if available.

  • Page 7: Firewall Configuration

    2 Firewall Configuration You need to open a firewall exception on the BK Medical Ultrasound device for port 7915 to enable the communication via OEM protocol between navigation system and BK Medical Ultrasound device. An instruction to configure a firewall exception on the two devices is described below.
  • Page 8 2.3 Configure Firewall Exception on Flex Focus 800 1. Press the [Network] button in the OEM Interface Dialog. 2. Press the [Down] arrow in the windows dialog to get to the Control Panel. 3. Click on [Windows Firewall]. 4. Click on [Exceptions] tab. 5.
  • Page 9 2.4 Enable Ping on Flex Focus 800 Enable pinging between the systems by enabling echo request in ICMP. 1. On the Windows Firewall Window, go to the [Advanced] tab. 2. Select [Settings] in the section “ICMP”. 3. Make sure that “Allow incoming echo requests” is checked.
  • Page 10 3 Coexistence with Varian or Master Demo license on Flex Focus 800 If you have a Varian License or a Master Demo license on your BK Medical Ultrasound device, there is a setting that you need to adjust for every pro package of every transducer: 1.
