- Page 1 User Guide Type 8823 Convex Array Transducer English BB1740-C June 2012 For Professional Users Only...
- Page 2 If you receive an email message from us asking for your feedback, we hope you will be willing to answer some questions about your experience buying and using our products. Your opinions are important to us. You are of course always welcome to contact us via your BK Medical representative or by contacting us directly.
-
Page 3: Table Of Contents
Contents Introduction ............5 Scanning Plane . -
Page 5: Introduction

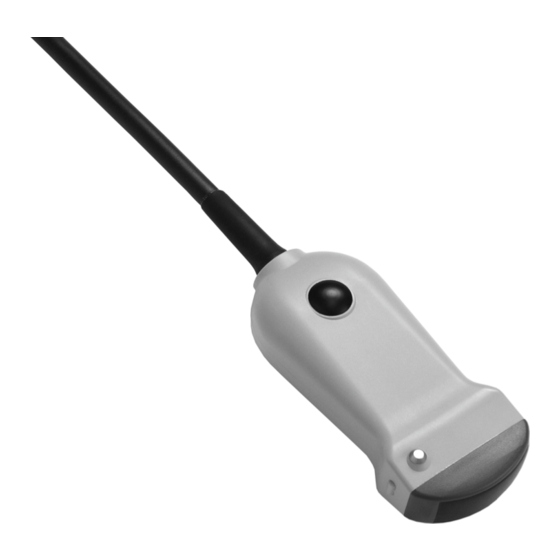

Introduction This is the user guide for Convex Array Transducer Type 8823 and must be used together with Care, Cleaning & Safety which contains important safety information. 8823 is an abdominal transducer suitable for intercostal examinations. Figure 1. Convex Array Transducer Type 8823. -
Page 6: Service And Repair
Service and Repair WARNING Service and repair of BK Medical electromedical equipment must be carried out only by the manufacturer or its authorized representatives. BK Medical reserves the right to disclaim all responsibility, including but not limited to responsibility for the operating safety, reliability and performance of equipment serviced or repaired by other parties. -
Page 7: Starting Scanning
Re- apply the gel frequently to ensure good screen images. WARNING Use only water-soluble agents or gels. Petroleum or mineral oil-based materials may harm the cover materials. 8823 User Guide (BB1740-C) -
Page 8: Using The Transducer Control Button
To change the orientation of the image on the monitor, refer to the applicable scanner user guide for instructions. Puncture and Biopsy Facilities Puncture and biopsy are possible with The 8823 transducer. The puncture attachments are illustrated in the following pages with a brief description of their use and operating instructions. -
Page 9: Ua1341
52 mm. The distance between the dots is 10 mm, see Figure 8 for details. Figure 4. 8823 with UA1250 mounted. All parts of the puncture attachment UA1250 can be autoclaved or disinfected by immersion in a suitable solution. - Page 10 Please consult the Reference Guide that accompanies the single-use needle guides for more detailed instructions on how to assemble the puncture attachment and needle guide. Cover Bracket Figure 6. 8823 with reusable bracket and transducer cover. June 2012 8823 User Guide (BB1740-C)
-
Page 11: Performing Puncture And Biopsy
Bracket Needle guide Figure 7. 8823 with single-use needle guide (UA0013) attached. The distance from the guide channel entrance of the puncture attachment to the first dot on the scan image puncture line is 52 mm. The distance between the dots is 10 mm, see Figure 8 for details. -
Page 12: Rf Ablation
When performing a biopsy, always make sure that the needle is fully drawn back inside the needle guide before moving the probe. Figure 8. Puncture line for UA1250 or UA1341 with 8823. The transducer and puncture attachment can be removed without disturbing the position of the needle during puncture. -
Page 13: Cleaning After Puncture And Biopsy
See the applicable scanner user guide for further details. WARNING For contaminated disposals such as transducer covers or needle guides, follow disposal control policies established for your office, department or hospital. 8823 User Guide (BB1740-C) - Page 14 June 2012 8823 User Guide (BB1740-C)
- Page 16 LEGAL MANUFACTURER : BK Medic al ApS , Milepa rken 34, 2730 Herlev, Denma rk. Tel.: +45 44528100 Fax : +45 44528199 E mail: info@bkmed.dk...
