Fisher Scientific 15212985 Instruction Manual

FISHER SCIENTIFIC

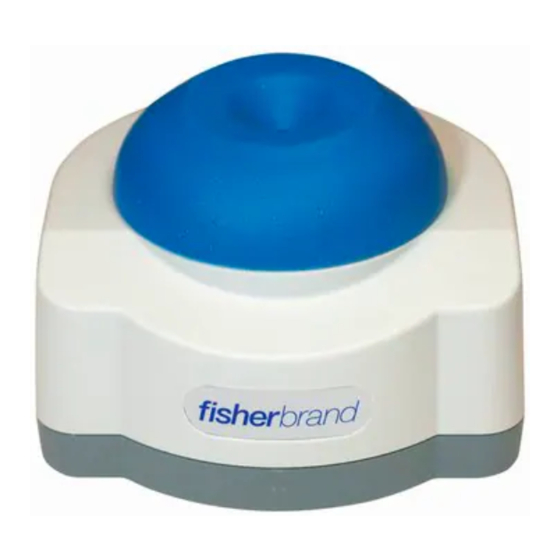

MINI VORTEX MIXER
Model 15212985 Instruction Manual
The Mini Vortex Mixer is a compact, very powerful, vortex mixer designed for vortexing micro tubes of all
sizes (0.4ml to 50ml).
It implements dynamic balance technology to provide smooth speed control and quiet operation with low
excess vibration.
I. Product Specifications:
Speed: Fixed: 2800 rpm
•
Operation: TOUCH mix
•
Head: Rubber cup standard for single tube mixing
•
Dimensions (WxDxH): 96 x 97 x 64mm
•
Weight: 0.5kg / 1 lb
•
Electrical: 100 to 240V, 50-60Hz, 0.6 amps
•
Operating environment: 4˚ C to 65˚ C;
•
Warranty: 2 years
•
II. Product Set-Up:
• Place the vortex mixer on a clean, flat, stable surface and press down slightly to allow the feet to adhere. Plug the
vortex mixer into a properly grounded outlet.
III. Product Operation:
Take the tube/vessel to be mixed and pressed downward against the head to activate the vortex mixing action.
•
When finished mixing, lift the tube upward.
IV. Care and Maintenance:
• No routine maintenance is required other that to keep the unit clean. Cleaning can be done with a damp cloth.
Avoid the use of solvents as they may attack the rubber cup head or the ABS plastic housing.
© 2015 Thermo Fisher Scientific Inc. All rights reserved.
Trademarks used are owned as indicated at www.fishersci.com/trademarks.
