4.3. Piping

■Tubing
If Rc1/8 port use as vacuum pressure supply port, please mount the plug (part number: M-5P) to M5x0.8
vacuum pressure supply (PV) port.
Please order one-touch fitting and tube separately for mounting to Rc1/8 port.
(Recommended one-touch fitting: KQ2L08-01NS, recommended tube: TU0805)
Connect a tube to the vacuum pressure supply (PV) port.
(Refer to the P.18 " 2 ) Tube attachment " )
To remove the tube, push the release button and pull out the tube.

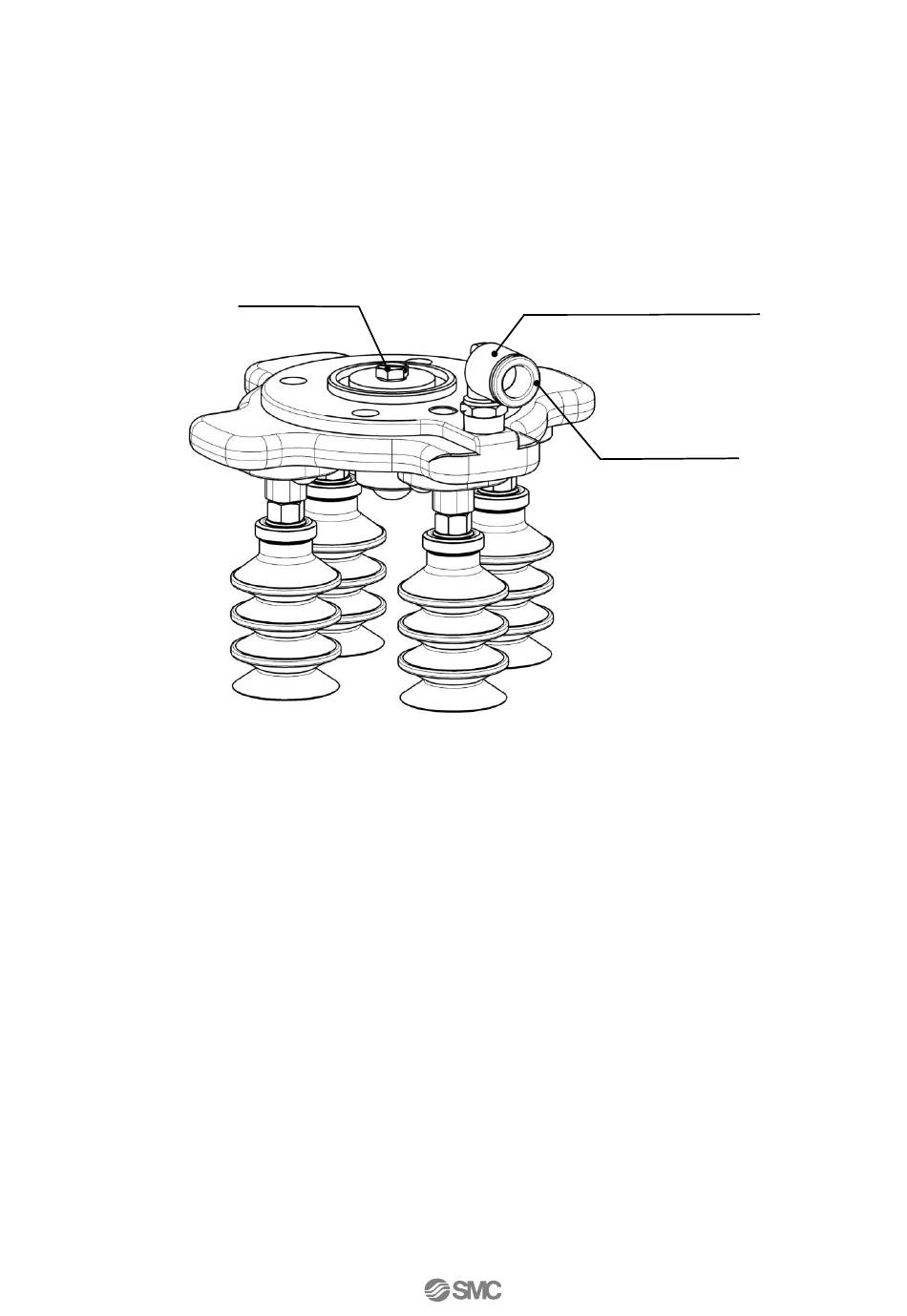

Plug(M-5P)
One-touch fitting
for vacuum pressure supply
(Port size Rc1/8）
Release button
-9-
No. TQ1230001-OM107
