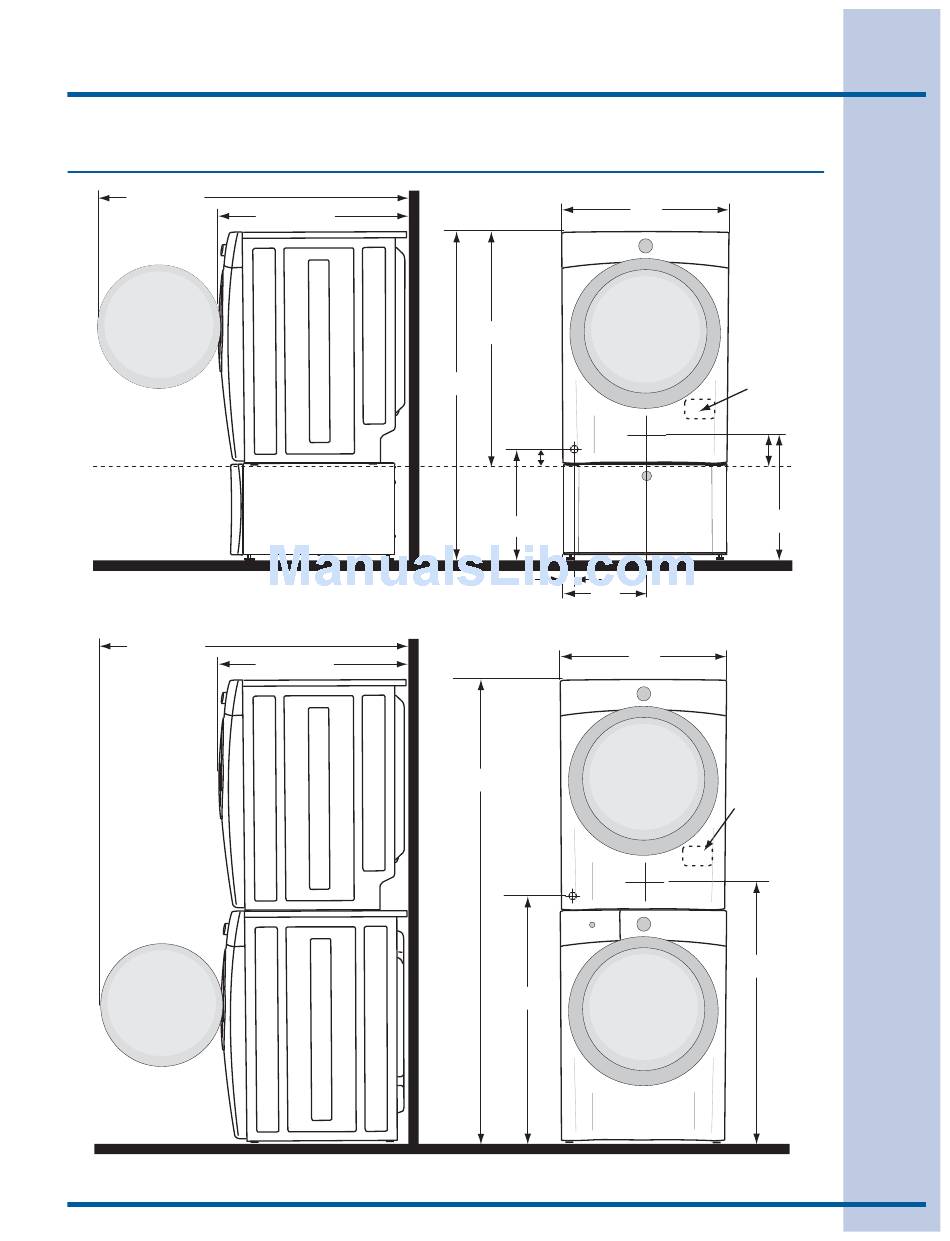

Installed dryer dimensions
50.6" (128.5cm)*
to clear open door
to front of closed door
freestand dryer
on floor
floor line
dryer mounted on
optional pedestal
floor line
* To obtain these minimal depth dimensions, dryer must either be vented straight back or
with a quick-turn 90° elbow. Connection of water inlet hose on Steam Models adds 3/4 in.
(2 cm) to installation depth. Upward venting of exhaust on pedestal-mounted or freestanding
dryer adds approximately 4 in. (10.2 cm) to installation depth. Downward venting of exhaust
on pedestal-mounted dryer adds approximately 1.7 in. (4.3 cm) to installation depth.
50.6" (128.5cm)*
to clear open door
* To obtain these minimal depth dimensions, dryer must either be vented straight back or with a quick-turn 90° elbow.
Connection of water inlet hose on Steam Models adds 3/4 in. (2 cm) to installation depth. Upward or downward venting
of exhaust on stacked dryer adds approximately 4 in. (10.2 cm) to installation depth.
Installation Requirements
31.50" (80cm)*
31.50" (80cm)*
to front of closed door
38.00"
(96.5cm)
53.00"
(134.5cm)
gas supply
pipe on rear
of gas unit
1.4"
(3.5cm)
16.25"
(41.5cm)
3.75"
(9.5cm)
13.50"
(34.5cm)
to center of rear vent
75.75"
(192.5cm)
gas supply
pipe on rear
of gas unit
39.00"
(99cm)
27.00"
(68.5cm)
electrical
supply on
rear of unit
centerline
height for
rear vent
3.40"
(8.5cm)
18.25"
(46.5cm)
27.00"
(68.5cm)
electrical
supply on
rear of unit
centerline
height for
rear vent
41.00"
(104cm)
9
