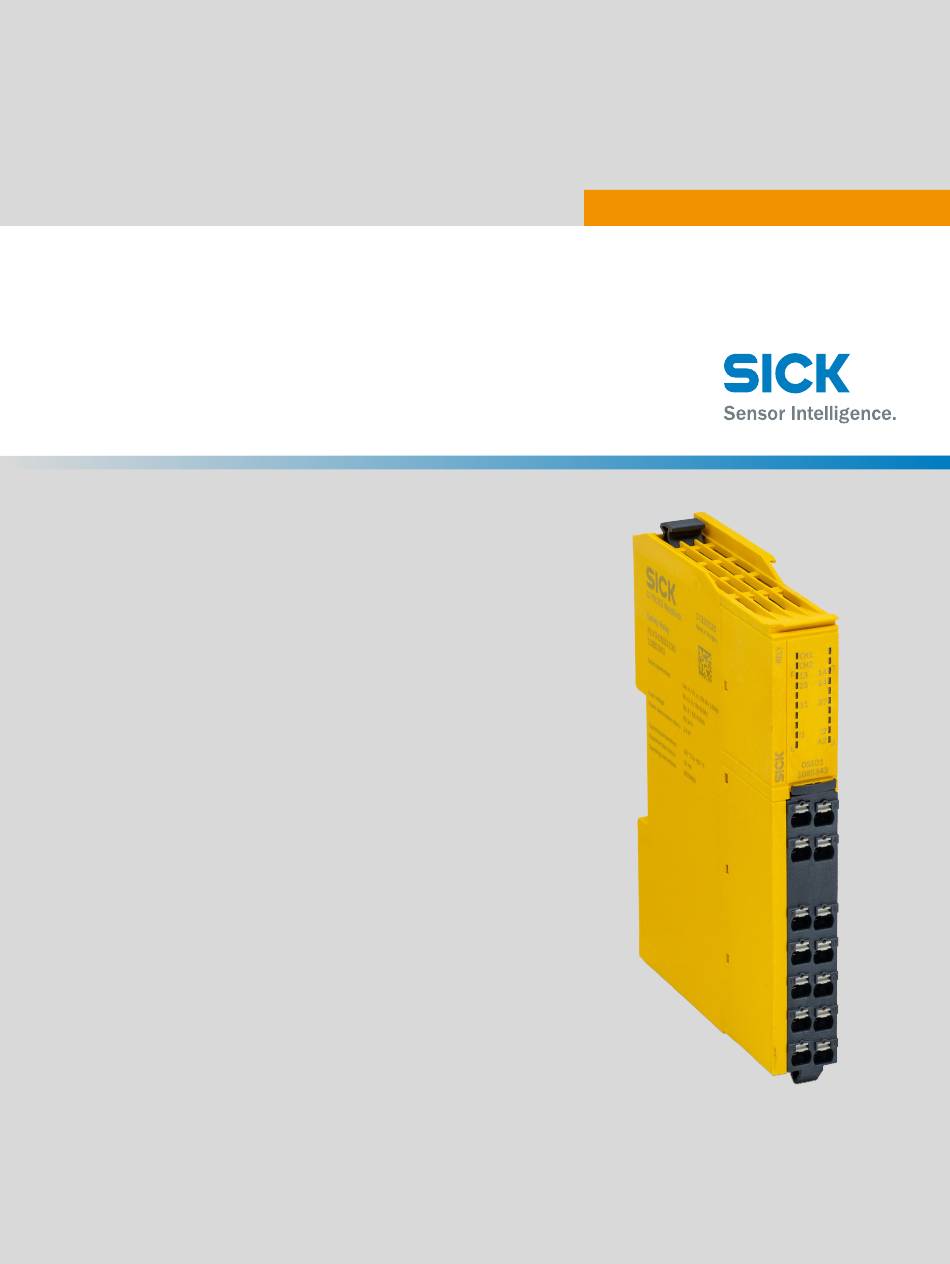

O P E R A T I N G I N S T R U C T I O N S

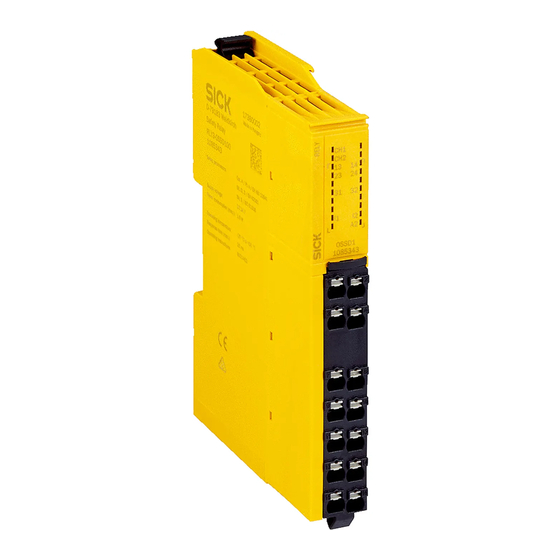

ReLy OSSD1
Safety relay

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ReLy OSSD1 and is the answer not in the manual?

Questions and answers

Related Manuals for SICK ReLy OSSD1

Summary of Contents for SICK ReLy OSSD1

  • Page 1 O P E R A T I N G I N S T R U C T I O N S ReLy OSSD1 Safety relay...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Module exchange..................Electrical installation................ 19 Device connection..................Commissioning.................. 21 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...
  • Page 4 List of figures..................33 List of tables..................34 O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 5: About This Document

    The following symbols and conventions are used in this document: 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...
  • Page 6 Ö The LED is flashing. O The LED is illuminated continuously. O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 7: Safety Information

    At altitudes of over 4,000 m above sea level • In explosion-hazardous areas 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...

  • Page 8: Requirements For The Qualification Of Personnel

    For maintenance, you must be able to assess if the machine is operating safely. O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK...

  • Page 9: Product Description

    Feedback current path (for use as external device monitoring, not safe) 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...

  • Page 10: Compatible Sensor Types

    Further topics • "Status indicator (LED)", page 22 O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 11: Project Planning

    Sufficient distance must be kept for the connected cables before the module (front side). 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...

  • Page 12: Electrical Integration

    The electrical voltage supply has a suitable electrical fuse. Further topics • "Data sheet", page 24 O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 13: Enabling Current Paths

    3) PELV Figure 4: ReLy OSSD1 connection diagram 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...

  • Page 14: Testing Plan

    Check the device for signs of misuse or manipulation • Thorough check of the safety function O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK Subject to change without notice...
  • Page 15 7, page 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...

  • Page 16: Mounting

    Attach the end clamps on the mounting rail on the left and right of the module. Figure 6: Mounting the end clamps O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK...

  • Page 17: Disassembly

    Figure 8: Removing the plug 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...

  • Page 18: Mount The Front Connector

    ✓ The front connector engages with an audible click. O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 19: Electrical Installation

    Enabling current path 23, 24 Enabling current path 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...
  • Page 20 "Data sheet", page 24 • "Electrical integration", page 12 O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 21: Commissioning

    Carry out the checks specified in the test plan of the manufacturer of the machine and the operating entity. 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...

  • Page 22: Troubleshooting

    Voltage on I1 O Green Voltage on I2 O Green O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 23: Decommissioning

    SICK will be glad to help you dispose of these devices on request. 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...

  • Page 24: Technical Data

    Table 8: Mechanical data Weight 130 g Mounting Mounting rail (IEC 60715) O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 25: Inputs (I1, I2)

    12, page 29 Sum current ≤ 12 A 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...

  • Page 26: Insulation Coordination - Enabling Current Paths (13/14, 23/24) To The 24 V Cir- Cuit

    Positively guided Contact material Silver alloy, gold flash plated O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 27: Ambient Data

    According to IEC 60947-5-1 Prerequisite: The front plug is mounted. 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...

  • Page 28: Breaking Capacity Without Continuous Arcing

    Figure 11: Breaking capacity without continuous arcing Inductive load L/R 40 ms Resistive load O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 29: Dimensional Drawings

    20,1 87,7 85,5 78,7 Figure 13: Dimensional drawing 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...

  • Page 30: Internal Circuitry

    Figure 14: Internal circuitry (hardware version 1.11.0 and above) O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 31: Ordering Information

    ReLy OSSD1 Opto-electronic protec‐ RLY3-OSSD100 1085343 tive devices 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...

  • Page 32: Annex

    • EMC DIRECTIVE 2014/30/EU • MACHINERY DIRECTIVE 2006/42/EC O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 33: List Of Figures

    14. Internal circuitry (hardware version 1.11.0 and above)...........30 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...

  • Page 34: List Of Tables

    13. Feedback current path (31, 32)................26 14. Ambient data.......................27 15. Ordering information....................31 O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 8020860/1FH0/2022-10-27 | SICK Subject to change without notice...
  • Page 35 LIST OF TABLES 8020860/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD1 Subject to change without notice...
