O P E R A T I N G I N S T R U C T I O N S

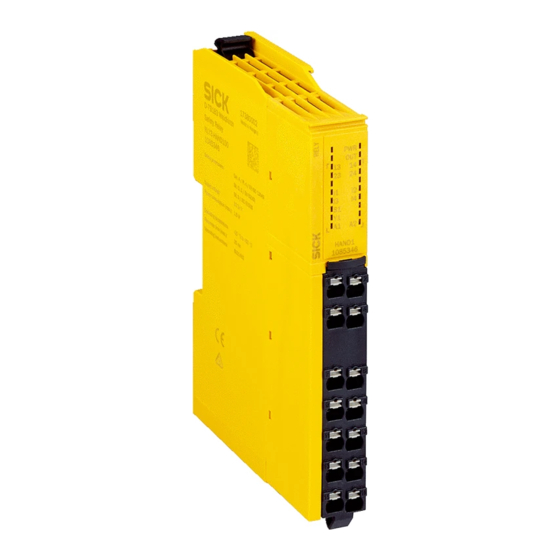

ReLy HAND1
Safety relay

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ReLy HAND1 and is the answer not in the manual?

Questions and answers

Related Manuals for SICK ReLy HAND1

Summary of Contents for SICK ReLy HAND1

  • Page 1 O P E R A T I N G I N S T R U C T I O N S ReLy HAND1 Safety relay...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Electrical installation................ 18 Device connection..................Commissioning.................. 20 Safety......................8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...
  • Page 4 List of figures..................31 List of tables..................32 O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 5: About This Document

    Data sheets and application examples • CAD data and dimensional drawings 8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...

  • Page 6: Symbols And Document Conventions

    Ö The LED is flashing. O The LED is illuminated continuously. O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 7: Safety Information

    At altitudes of over 4,000 m above sea level • In explosion-hazardous areas 8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...

  • Page 8: Requirements For The Qualification Of Personnel

    O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK...

  • Page 9: Product Description

    The safety relay is suitable for volt-free safety sensors and safety switches, e.g.: 8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...

  • Page 10: External Device Monitoring

    Further topics • "Status indicator (LED)", page 21 O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 11: Project Planning

    Sufficient distance must be kept for the connected cables before the safety relay (front side). 8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...

  • Page 12: Electrical Integration

    Hazard due to lack of effectiveness of the protective device Ensure the enabling current paths are supplied by the same voltage supply. O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK...

  • Page 13: Application Diagnostic Output

    "Thorough check", page 8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...

  • Page 14: Minimum Requirements For The Regular Thorough Check

    The minimum test interval depends on the applicable safety capability of the overall application, see table 5, page O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 15: Mounting

    Figure 5: Mounting Attach safety relay to mounting rail. 8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...

  • Page 16: Disassembly

    O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK...
  • Page 17 The front connector engages with an audible click. 8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...

  • Page 18: Electrical Installation

    • The cables for the control devices must be laid with protection. O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK Subject to change without notice...
  • Page 19 Further topics • "Connection diagrams", page 13 8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...

  • Page 20: Commissioning

    The thorough checks must be carried out by qualified safety personnel or specially qual‐ ified and authorized personnel, and must be documented in a traceable manner. O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK...

  • Page 21: Troubleshooting

    Enabling current paths closed O Green Enabling current paths open 8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...

  • Page 22: Decommissioning

    We will be glad to help you dispose of these devices on request. O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK...

  • Page 23: Technical Data

    Fine wire (1×) 0.2 mm … 1.5 mm 8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...
  • Page 24 4,000 m above sea level 10 V AC … 150 V AC O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK Subject to change without notice...
  • Page 25 In accordance with IEC 61000-6-2 In accordance with IEC 60947-5-1 8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...
  • Page 26 Figure 10: Switch-off delay without continuous arcing Inductive load L/R 40 ms Resistive load O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 27: Dimensional Drawings

    Switching current (A) 10.2 Dimensional drawings Figure 12: Dimensional drawing 8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...

  • Page 28: Internal Circuitry

    TECHNICAL DATA 10.3 Internal circuitry Figure 13: Internal circuitry O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 29: Ordering Information

    RLY3-HAND1 1085346 units, type III C (EN 574) 8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...

  • Page 30: Annex

    (part number: see the type label entry in the “Ident. no.” field). O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK...

  • Page 31: List Of Figures

    12. Dimensional drawing....................27 13. Internal circuitry......................28 8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...

  • Page 32: List Of Tables

    10. Electrical data - enabling current paths (13, 14, 23, 24)........24 11. Ambient data.......................25 12. Ordering information....................29 O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK Subject to change without notice...
  • Page 33 LIST OF TABLES 8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...
  • Page 34 LIST OF TABLES O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 8020872/ZX84/2018-11-15 | SICK Subject to change without notice...
  • Page 35 LIST OF TABLES 8020872/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy HAND1 Subject to change without notice...
