O P E R A T I N G I N S T R U C T I O N S

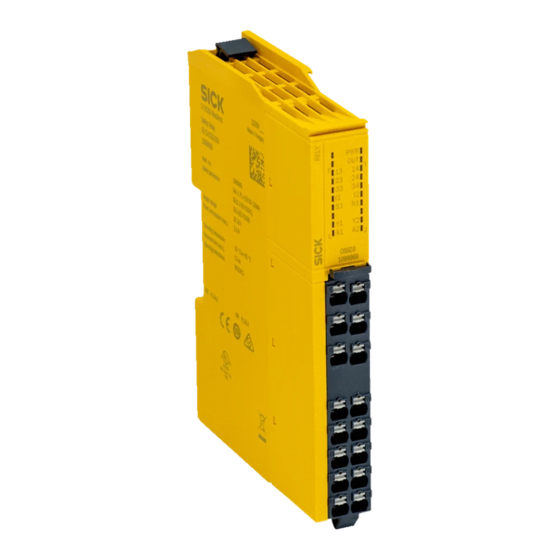

ReLy OSSD3
Safety relay

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ReLy OSSD3 and is the answer not in the manual?

Questions and answers

Related Manuals for SICK ReLy OSSD3

Summary of Contents for SICK ReLy OSSD3

  • Page 1 O P E R A T I N G I N S T R U C T I O N S ReLy OSSD3 Safety relay...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Disassembly....................Module exchange..................Electrical installation................ 18 Device connection..................8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...
  • Page 4 List of figures..................32 List of tables..................33 O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK Subject to change without notice...

  • Page 5: About This Document

    Data sheets and application examples • CAD data and dimensional drawings 8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...

  • Page 6: Symbols And Document Conventions

    Ö The LED is flashing. O The LED is illuminated continuously. O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK Subject to change without notice...

  • Page 7: Safety Information

    At altitudes of over 4,000 m above sea level • In explosion-hazardous areas 8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...

  • Page 8: Requirements For The Qualification Of Personnel

    O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK...

  • Page 9: Product Description

    2 application diagnostic outputs (not safe) • Test output (not safe) 8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...

  • Page 10: Compatible Sensor Types

    Further topics • "Status indicator (LED)", page 22 O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK Subject to change without notice...

  • Page 11: Project Planning

    Sufficient distance must be kept for the connected cables before the module (front side). 8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...

  • Page 12: Electrical Integration

    Application diagnostic output Y1 is based on the push-pull principle, meaning it can both absorb and apply current. O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK...

  • Page 13: Restart Interlock

    (contactors) have dropped out when the device is switched on. Further topics • "Device connection", page 18 8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...

  • Page 14: Connection Diagrams

    The minimum test interval depends on the applicable safety capability of the overall application, see table 5, page O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK Subject to change without notice...

  • Page 15: Mounting

    Figure 5: Mounting Attach module to mounting rail. 8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...

  • Page 16: Disassembly

    Figure 7: Dismantle front connector O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK Subject to change without notice...

  • Page 17: Mount The Front Connector

    The front connector engages with an audible click. 8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...

  • Page 18: Electrical Installation

    ISO 13849-1 and SILCL in accordance with IEC 62061 (e.g. shielded single sheathed cables, separate installation). O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK...

  • Page 19: Terminals On Front Connector

    RC elements. The response times will increase depending on the sup‐ pressor used. 8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...
  • Page 20 ELECTRICAL INSTALLATION Further topics • "Connection diagrams", page 14 O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK Subject to change without notice...

  • Page 21: Commissioning

    8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...

  • Page 22: Troubleshooting

    Ö Green Reset required Reset pushbutton actuated O Green O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK Subject to change without notice...

  • Page 23: Decommissioning

    SICK will be glad to help you dispose of these devices on request. 8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...

  • Page 24: Technical Data

    Fine wire (1×) 0.2 mm … 1.5 mm O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK Subject to change without notice...
  • Page 25 ≤ 100 m Cable resistance ≤ 10 Ω 8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...
  • Page 26 Enclosure rating IP20 (IEC 60529) Ambient operating temperature O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK Subject to change without notice...

  • Page 27: Switch-Off Delay Without Continuous Arcing

    Figure 10: Switch-off delay without continuous arcing Inductive load L/R 40 ms Resistive load 8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...

  • Page 28: Dimensional Drawings

    20,1 87,7 85,5 78,7 Figure 12: Dimensional drawing O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK Subject to change without notice...

  • Page 29: Internal Circuitry

    TECHNICAL DATA 10.3 Internal circuitry Figure 13: Internal circuitry 8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...

  • Page 30: Ordering Information

    Opto-electronic protec‐ RLY3-OSSD3 1099969 tive devices, magnetic safety switches O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK Subject to change without notice...

  • Page 31: Annex

    (part number: see the type label entry in the “Ident. no.” field). 8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...

  • Page 32: List Of Figures

    12. Dimensional drawing....................28 13. Internal circuitry......................29 O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK Subject to change without notice...

  • Page 33: List Of Tables

    11. Electrical data - enabling current paths (13, 14, 23, 24, 33, 34)......26 12. Ambient data.......................26 13. Ordering information....................30 8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...
  • Page 34 LIST OF TABLES O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 8023925/2019-10-11 | SICK Subject to change without notice...
  • Page 35 LIST OF TABLES 8023925/2019-10-11 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy OSSD3 Subject to change without notice...
