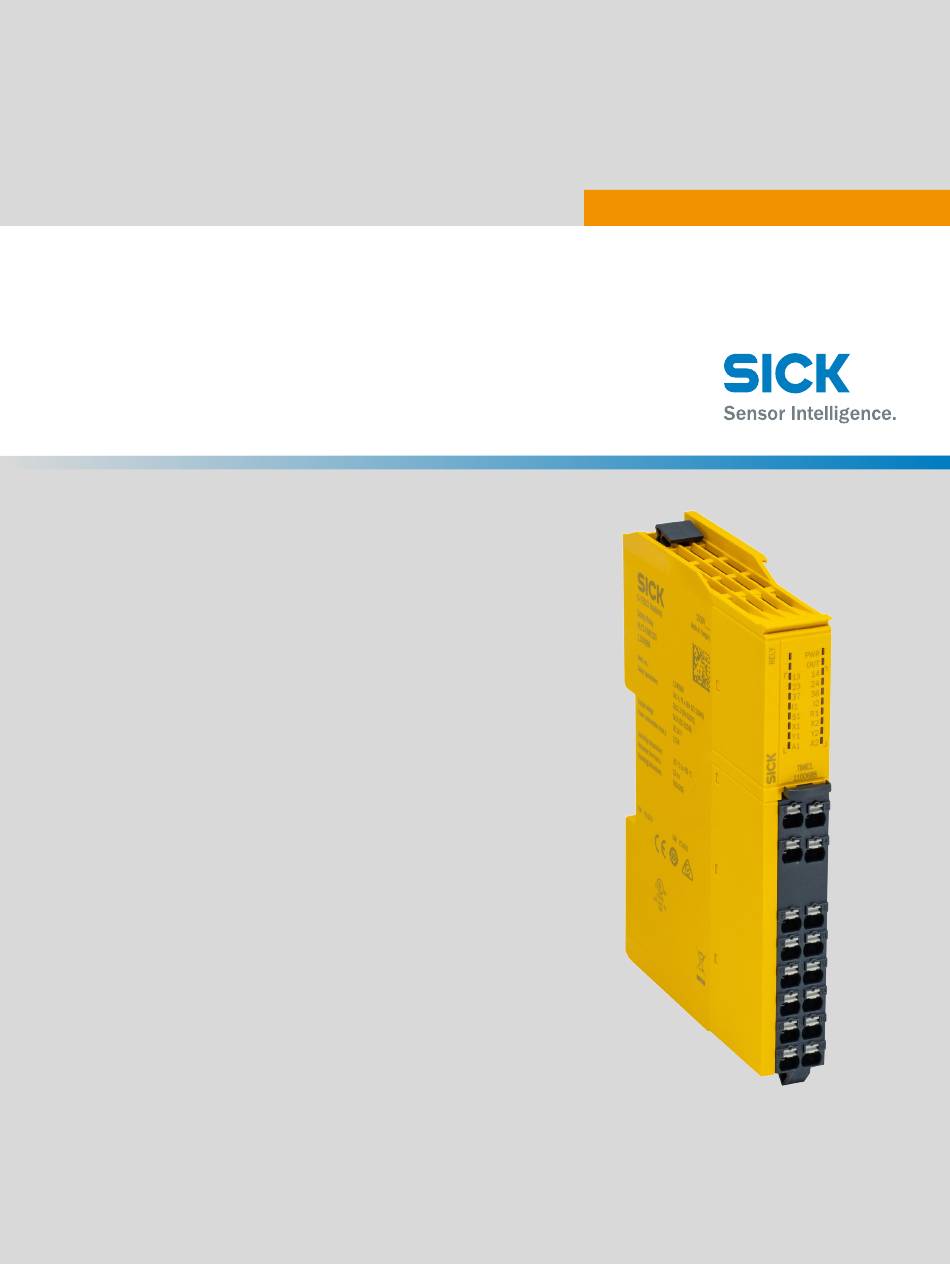

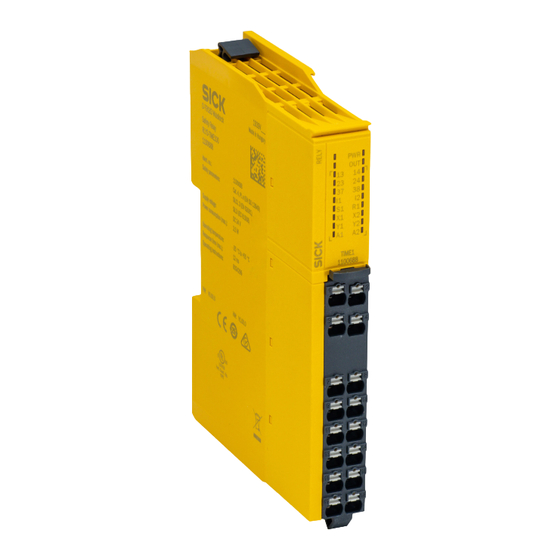

  • Page 1 O P E R A T I N G I N S T R U C T I O N S ReLy TIME1 Safety relay...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Planning the regular thorough check........Mounting..................... 18 Mounting procedure................. Disassembly....................8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...
  • Page 4 List of figures..................41 List of tables..................42 O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 5: About This Document

    Guide for Safe Machinery Six steps to a safe machine 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 6: Symbols And Document Conventions

    Ö The LED is flashing. O The LED is illuminated continuously. O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 7: Safety Information

    4 A and a minimum of 30 V DC in accordance with UL 248. 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 8: Inappropriate Use

    For maintenance, you must be able to assess if the machine is operating safely. O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK...

  • Page 9: Product Description

    Input for reset pushbutton or external device monitoring 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 10: Compatible Sensor Types

    Further topics • "Configuring sensor type", page 25 O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 11: Status Indicators

    Further topics • "Status indicator (LED)", page 28 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 12: Project Planning

    Sufficient distance must be kept for the connected cables before the module (front side). O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK...

  • Page 13: Electrical Integration

    The electrical voltage supply has a suitable electrical fuse. Further topics • "Data sheet", page 31 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 14: Enabling Current Paths

    Input sensor Enabling current path Figure 4: Sequence/timing diagram O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 15: Restart Interlock

    Further topics • "Device connection", page 21 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 16: Connection Diagrams

    After exceptional events, such as after manipulation has been detected, after modification of the machine, or after replacing components O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK...

  • Page 17: Planning The Regular Thorough Check

    7, page 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 18: Mounting

    Attach the end clamps on the mounting rail on the left and right of the module. Figure 7: Mounting the end clamps O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK...

  • Page 19: Disassembly

    Figure 9: Removing the plug 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 20: Mount The Front Connector

    ✓ The front connector engages with an audible click. O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 21: Electrical Installation

    ISO 13849-1 and SIL in accordance with IEC 62061 (e.g. shielded single sheathed cables, separate installation). 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 22: Terminals On Front Connector

    Use without restart interlock, without external device monitoring (EDM): Connect R1 and S1 with a wire jumper. O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK...
  • Page 23 "Data sheet", page 31 • "Electrical integration", page 13 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 24: Configuration

    Prerequisites The safety relay is disconnected from the voltage supply. O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 25: Configuring Sensor Type

    Safety sensors with dual-channel cross-circuit monitored semi- OSSD conductor outputs 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 26: Activating Configuration

    Connect the safety relay to the supply voltage. ✓ The PWR LED flashes red (1 Hz). O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 27: Commissioning

    Carry out the checks specified in the test plan of the manufacturer of the machine and the operating entity. 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 28: Troubleshooting

    Reset required Ö Green O Green Reset pushbutton actuated O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK Subject to change without notice...
  • Page 29 TROUBLESHOOTING Complementary information • "Configuration", page 24 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 30: Decommissioning

    SICK will be glad to help you dispose of these devices on request. O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK...

  • Page 31: Technical Data

    The release-delayed enabling current path opens at the latest after the configured release delay. 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 32: Mechanical Data

    Protect supply voltage against short-circuit. The power-up delay doubles with a new configuration. O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK...

  • Page 33: Inputs (I1, I2, S1)

    ≤ 16 ms tive opening, e.g., reed switch OSSD ≤ 12 ms 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 34: Enabling Current Path (13/14, 23/24, 37/38)

    At altitudes up to 2,000 m above sea level 6 kV O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 35: Each Other

    According to IEC 60947-5-1 Prerequisite: The front plug is mounted. 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 36: Breaking Capacity Without Continuous Arcing

    Figure 15: Breaking capacity without continuous arcing Inductive load L/R 40 ms Resistive load O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 37: Electrical Endurance Of Contacts 13/14 And 23/24

    Figure 17: Electrical endurance of contacts 37/38 Switching operations × 1,000 Switching current (A) 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 38: Dimensional Drawings

    Figure 18: Dimensional drawing 11.3 Internal circuitry Figure 19: Internal circuitry O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 39: Ordering Information

    RLY3-TIME100 1100688 electronic protective devices, magnetic safety switches 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 40: Annex

    • EMC DIRECTIVE 2014/30/EU • MACHINERY DIRECTIVE 2006/42/EC O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK Subject to change without notice...

  • Page 41: List Of Figures

    18. Dimensional drawing....................38 19. Internal circuitry......................38 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 42: List Of Tables

    35 17. Ambient data.......................35 18. Ordering information....................39 O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/1FH0/2022-10-27 | SICK Subject to change without notice...
  • Page 43 LIST OF TABLES 8024303/1FH0/2022-10-27 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...
