O P E R A T I N G I N S T R U C T I O N S

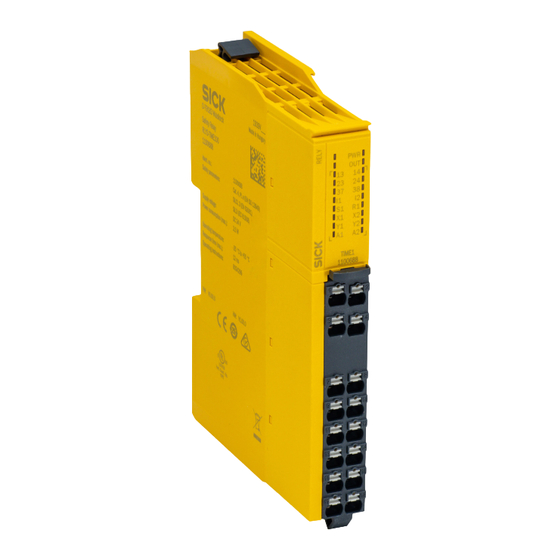

ReLy TIME1
Safety relay

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ReLy TIME1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SICK ReLy TIME1

Summary of Contents for SICK ReLy TIME1

  • Page 1 O P E R A T I N G I N S T R U C T I O N S ReLy TIME1 Safety relay...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Mounting procedure................. Disassembly....................Module exchange..................Electrical installation................ 19 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...
  • Page 4 List of figures..................38 List of tables..................39 O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK Subject to change without notice...

  • Page 5: About This Document

    Data sheets and application examples • CAD data and dimensional drawings 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 6: Symbols And Document Conventions

    Ö The LED is flashing. O The LED is illuminated continuously. O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK Subject to change without notice...

  • Page 7: Safety Information

    The safety relay is not suitable for the following applications (this list is not exhaustive): 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 8: Requirements For The Qualification Of Personnel

    O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK...

  • Page 9: Product Description

    1 enabling current path for stop category 1 applications (safe) 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 10: Compatible Sensor Types

    (except for the upper 2 lines) also show the pin assignment of the terminals on the front connector. O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK...
  • Page 11 Further topics • "Status indicator (LED)", page 26 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 12: Project Planning

    Sufficient distance must be kept for the connected cables before the module (front side). O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK...

  • Page 13: Electrical Integration

    Application diagnostic output Y1 is based on the push-pull principle, meaning it can both absorb and apply current. 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 14: Restart Interlock

    (contactors) have dropped out when the device is switched on. Further topics • "Device connection", page 19 O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK Subject to change without notice...

  • Page 15: Connection Diagrams

    6, page 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 16: Mounting

    Figure 5: Mounting Attach module to mounting rail. O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK Subject to change without notice...

  • Page 17: Disassembly

    Figure 7: Dismantle front connector 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 18: Mount The Front Connector

    ✓ The front connector engages with an audible click. O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK Subject to change without notice...

  • Page 19: Electrical Installation

    ISO 13849-1 and SILCL in accordance with IEC 62061 (e.g. shielded single sheathed cables, separate installation). 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 20: Terminals On Front Connector

    Use without restart interlock, without external device monitoring (EDM): Connect R1 and S1 with a wire jumper. O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK...
  • Page 21 Further topics • "Connection diagrams", page 15 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 22: Configuration

    Prerequisites The safety relay is disconnected from the voltage supply. O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK Subject to change without notice...

  • Page 23: Configuring Sensor Type

    "Compatible sensor types", page 10 • "Activating configuration", page 24 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 24: Activating Configuration

    ✓ The PWR LED flashes red (1 Hz). O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK Subject to change without notice...

  • Page 25: Commissioning

    8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 26: Troubleshooting

    Reset required Ö Green Reset pushbutton actuated O Green O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK Subject to change without notice...
  • Page 27 TROUBLESHOOTING Complementary information • "Configuration", page 22 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 28: Decommissioning

    SICK will be glad to help you dispose of these devices on request. O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK...

  • Page 29: Technical Data

    Spring terminals Stripping length 8 mm Wire cross-section 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...
  • Page 30 – 3 V) … U Test pulse interval 40 ms O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK Subject to change without notice...
  • Page 31 Contact fuse with safety fuse gG or circuit Max. 6 A breaker C 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...
  • Page 32 In accordance with IEC 61000-6-2 In accordance with IEC 60947-5-1 O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK Subject to change without notice...

  • Page 33: Switch-Off Delay Without Continuous Arcing

    Figure 13: Switch-off delay without continuous arcing Inductive load L/R 40 ms Resistive load 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 34: Electrical Endurance Of Contacts 13/14 And 23/24

    Figure 15: Electrical endurance of contacts 37/38 Switching operations × 1,000 Switching current (A) O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK Subject to change without notice...

  • Page 35: Dimensional Drawings

    Figure 16: Dimensional drawing 11.3 Internal circuitry Figure 17: Internal circuitry 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 36: Ordering Information

    RLY3-TIME100 1100688 electronic protective devices, magnetic safety switches O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK Subject to change without notice...

  • Page 37: Annex

    (part number: see the type label entry in the “Ident. no.” field). 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...

  • Page 38: List Of Figures

    16. Dimensional drawing....................35 17. Internal circuitry......................35 O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 8024303/2019-12-18 | SICK Subject to change without notice...

  • Page 39: List Of Tables

    14. Electrical data - enabling current path, release-delayed (37, 38)......32 15. Ambient data.......................32 16. Ordering information....................36 8024303/2019-12-18 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy TIME1 Subject to change without notice...
