O P E R A T I N G I N S T R U C T I O N S

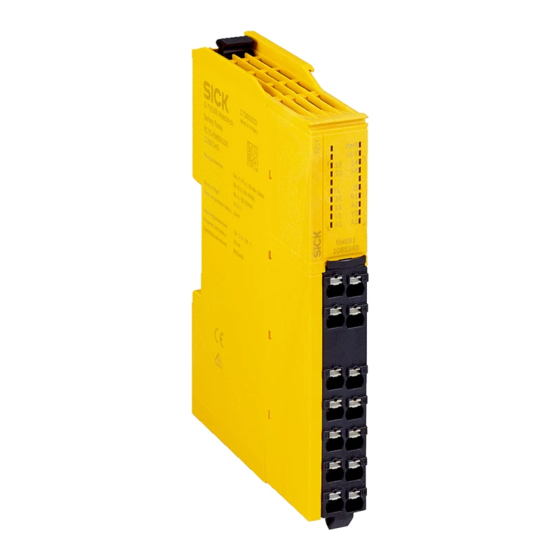

ReLy EMSS1
Safety relay

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ReLy EMSS1 and is the answer not in the manual?

Questions and answers

Related Manuals for SICK ReLy EMSS1

Summary of Contents for SICK ReLy EMSS1

  • Page 1 O P E R A T I N G I N S T R U C T I O N S ReLy EMSS1 Safety relay...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Disassembly....................Device replacement.................. Electrical installation................ 20 Device connection..................8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...
  • Page 4 List of figures..................34 List of tables..................35 O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 5: About This Document

    Data sheets and application examples • CAD data and dimensional drawings 8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...

  • Page 6: Symbols And Document Conventions

    Ö The LED is flashing. O The LED is illuminated continuously. O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 7: Safety Information

    At altitudes of over 4,000 m above sea level • In explosion-hazardous areas 8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...

  • Page 8: Requirements For The Qualification Of Personnel

    O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK...

  • Page 9: Product Description

    2 application diagnostic outputs (not safe) • 3 test outputs (not safe) 8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...

  • Page 10: Compatible Sensor Types

    Reset pushbutton input, exter‐ nal device monitoring (EDM) O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK Subject to change without notice...
  • Page 11 Further topics • "Status indicator (LED)", page 24 8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...

  • Page 12: Project Planning

    Sufficient distance must be kept for the connected cables before the safety relay (front side). O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK...

  • Page 13: Electrical Integration

    The application diagnostic output is not safe. 8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...

  • Page 14: Restart Interlock

    (contactors) have dropped out when the device is switched on. Further topics • "Device connection", page 20 O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 15: Connection Diagrams

    "Thorough check", page 8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...

  • Page 16: Minimum Requirements For The Regular Thorough Check

    The minimum test interval depends on the applicable safety capability of the overall application, see table 5, page O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 17: Mounting

    Figure 6: Mounting Attach safety relay to mounting rail. 8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...

  • Page 18: Disassembly

    O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK...

  • Page 19: Dismantling Front Connector

    The front connector engages with an audible click. 8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...

  • Page 20: Electrical Installation

    ISO 13849-1 and SILCL in accordance with IEC 62061 (e.g. shielded single sheathed cables, separate installation). O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK...

  • Page 21: Terminals On Front Connector

    RC elements. The response times will increase depending on the sup‐ pressor used. 8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...
  • Page 22 ELECTRICAL INSTALLATION Further topics • "Connection diagrams", page 15 O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 23: Commissioning

    8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...

  • Page 24: Troubleshooting

    Ö Green Reset required Reset pushbutton actuated O Green O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 25: Decommissioning

    We will be glad to help you dispose of these devices on request. 8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...

  • Page 26: Technical Data

    Fine wire (1×) 0.2 mm … 1.5 mm O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK Subject to change without notice...
  • Page 27 Type of output PNP semiconductor output, short-circuit pro‐ tected 8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...
  • Page 28 –25 °C … +55 °C (UL/CSA: surrounding air temperature) O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 29: Switch-Off Delay Without Continuous Arcing

    Figure 11: Switch-off delay without continuous arcing Inductive load L/R 40 ms Resistive load 8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...

  • Page 30: Dimensional Drawings

    Switching current (A) 10.2 Dimensional drawings Figure 13: Dimensional drawing O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 31: Internal Circuitry

    TECHNICAL DATA 10.3 Internal circuitry Figure 14: Internal circuitry 8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...

  • Page 32: Ordering Information

    Part number ReLy EMSS1 Interlock safety switch RLY3-EMSS1 1085345 O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 33: Annex

    (part number: see the type label entry in the “Ident. no.” field). 8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...

  • Page 34: List Of Figures

    13. Dimensional drawing....................30 14. Internal circuitry......................31 O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 8020868/ZX84/2018-11-15 | SICK Subject to change without notice...

  • Page 35: List Of Tables

    11. Electrical data - enabling current paths (13, 14, 23, 24)........28 12. Ambient data.......................28 13. Ordering information....................32 8020868/ZX84/2018-11-15 | SICK O P E R A T I N G I N S T R U C T I O N S | ReLy EMSS1 Subject to change without notice...
