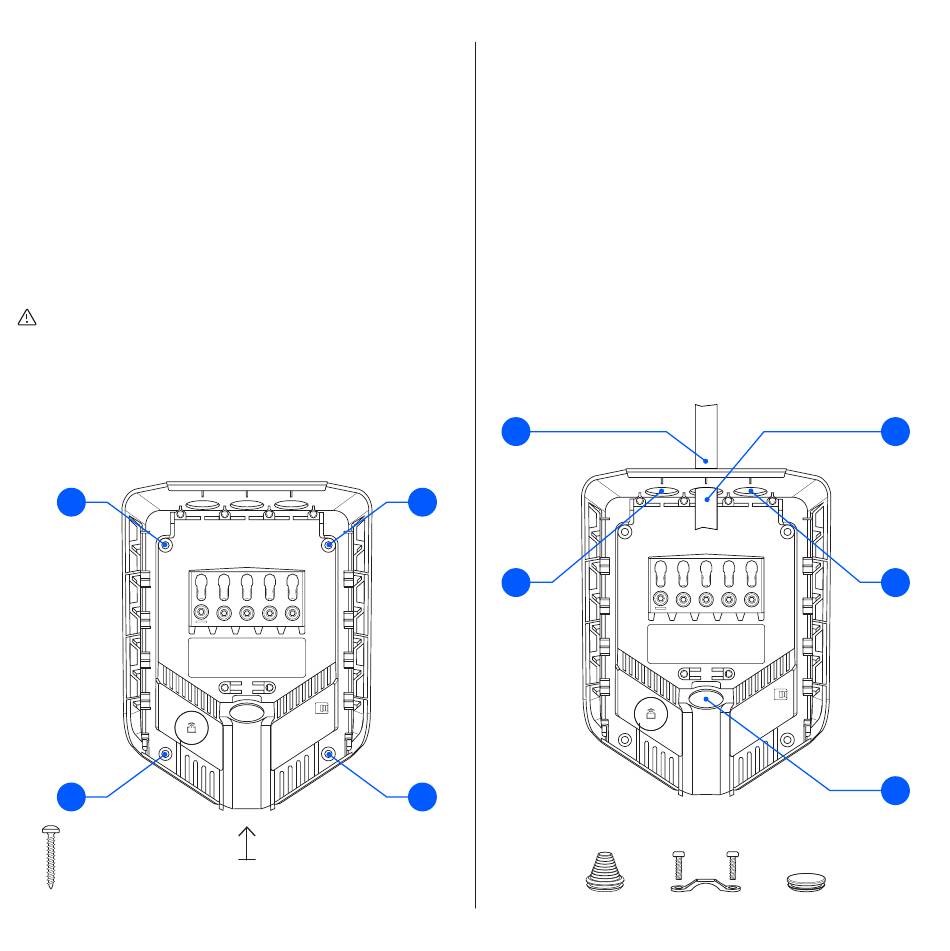

Backplate
Mounting
1.
Turn off the power before proceeding with the
installation.
2.
Fix the backplate to a wall or structure with
sufficient load-bearing capacity using the 4 screws
provided in the mounting kit. Use suitable wall
plugs for mounting and observe the recommended
installation height.
CAUTION
The installation wall must cover the entire back of the
product.
NOTE
If you are going to install multiple backplates, now would
be a good time to mount them as well.
2
2
2
Recommended installation height
9
130–140 cm
3
Backplate
Preparing
1.
Shorten the sealing plug to fit the cable. The hole
should be slightly smaller to ensure a good seal.
2.
Insert the cable through one of the 4 cable entries
and secure it to the backplate with the strain relief
provided.
3.
Close all cable entries that are not in use with the
blind sealing plugs supplied.
1
2
3
2
1
2
2
3
3
3
