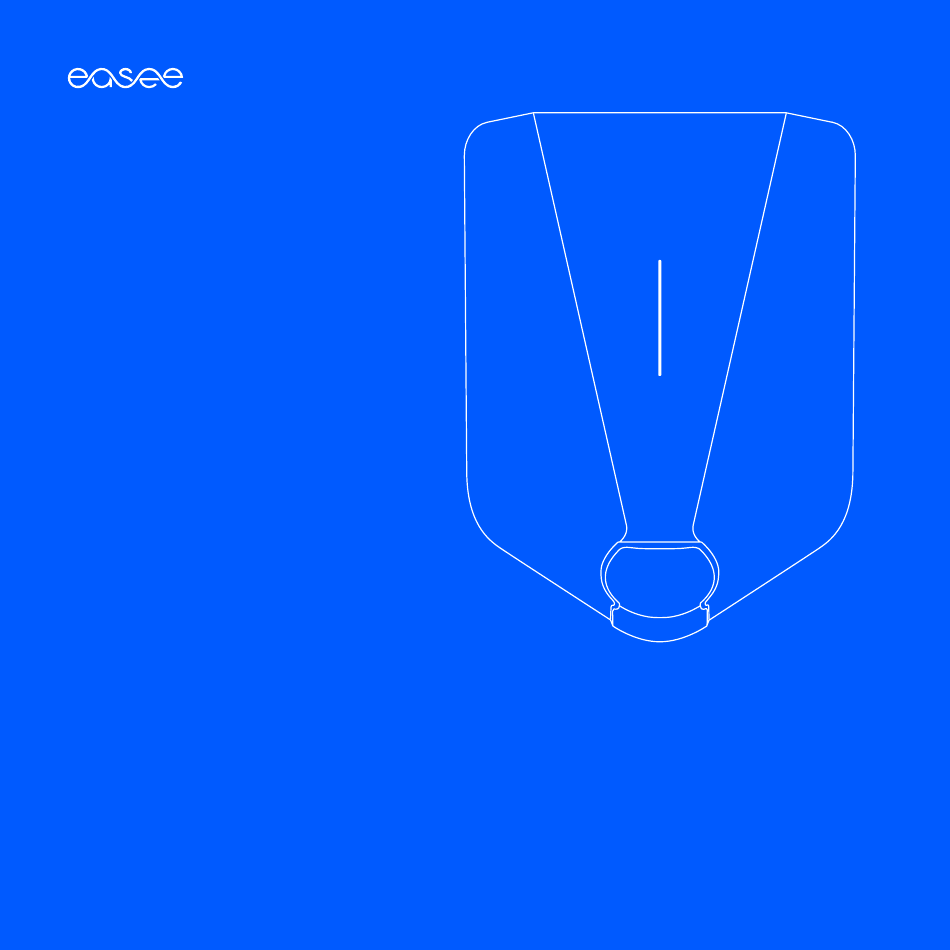

- Page 1 Installer guide Easee Home Easee Charge...
-
Page 2: Warnings And Cautions
Introduction Read the Important product information guide in the product packaging or at easee.com/manuals before installing the product. Installation and operation of the product require a mobile device with internet connection. WARNINGS AND CAUTIONS A Warning indicates a condition, hazard or unsafe practice that can result in serious personal injury or death. -
Page 3: Product Overview
Product overview Front cover Chargeberry Backplate Protects the electronics from Contains the electronics For attaching and connecting to external influences. for charging the vehicle. the charging infrastructure. Installation kit Tool Strain relief Blind plug Sealing plug... -
Page 4: Technical Specifications
1 or 3 (fully dynamic) Voltage 3x 230/400V AC (±10%) Mains frequency 50/60 Hz Easee Home Load balancing of up to 3 units per circuit Easee Charge Load balancing of up to 101 units per circuit Built-in energy meter (±2 %) - Page 5 Insulation class Overvoltage category Installation Installation network TN, IT or TT (detected automatically) Installation circuit breaker Max 40 A (Easee Home) and 80 A (Easee Charge) Wire cross-section up to 16 mm (single cable)/ up to 10 mm (parallel connection) Cable diameter 8–22 mm...
-
Page 6: Planning The Installation
Shackle height (outer dimensions) 19 - 20 mm be used to assign the Charging Robots to the correct location in the Easee Cloud. A Site Key will Shackle thickness 3.2 - 4 mm automatically be generated when creating a new... - Page 7 • The installation, including cable, junction boxes etc., includes components with only basic insulation (Class I). • Any other electrical equipment apart from Easee Home/Charge, including lamps and socket outlets, is connected to the circuit. • Any other conditions identified by the authorized installer requiring an external RCD.
-
Page 8: Installation Instructions
Pull the tool until the front cover comes loose and remove the cover. Grasp the Type 2 socket and push upwards with good force until the Chargeberry disconnects. We recommend that you watch the installation videos available on our website: easee.support. - Page 9 Backplate Backplate Mounting Preparing Turn off the power before proceeding with the Shorten the sealing plug to fit the cable. The hole installation. should be slightly smaller to ensure a good seal. Fix the backplate to a wall or structure with Insert the cable through one of the 4 cable entries sufficient load-bearing capacity using the 4 screws and secure it to the backplate with the strain relief...
- Page 10 Backplate Wiring TN/TT 3-phase IT/TT 3-phase (3x 230/400 V) (3x 230 V) Strip the individual wires by 12 mm. If the cable has flexible conductors, it is recommended to use ferrules on stranded wires. Use correct tools to press them. Tighten the screw terminal with a torque of 5 Nm.
- Page 11 Update existing site: If this site already has one or more Charging Robots installed or if it has been created by Scan the QR code to download the Easee Installer an operator (Easee Charge), select "Update existing site" App and create a free account.
- Page 12 Turn on the power. The terminals of the backplates Chargeberry Attaching are now electrically live. Position the Chargeberry to fit into the slots on the backplate located in the center of the installation. When the Chargeberry is in the track, press it forcefully down until you hear a click.
- Page 13 Chargeberry with a padlock (see installation). Close the rubber cover. If the cable is inserted from the bottom, you can cut a corresponding hole in the rubber cover to ensure a neat installation. Your Charging Robot is now ready for use! ”CLICK!”...
- Page 14 Read more about the local interface at: easee.com/support/localinterface Light strip: The light strip communicates the status of the Charging Robot at all times. (See Charging Robot interface). RFID area: The integrated RFID reader enables access control of the Charging Robot and identification of different users.
- Page 15 Contact customer support. General error. Unplug the charging cable and replug it to the Red – constant light Charging Robot. If the red light persists, check the Easee App or our knowledge base for further information.
- Page 16 Please go to our knowledge base further information. The Charging Robot is searching for its master unit. Please check White – flashing light, only at the bottom the status of the master unit. For further information, please check our knowledge base The Charging Robot is waiting to be configured.
- Page 17 Easee or its subsidiaries in writing. Any permitted use shall always be done in accordance with good practice and ensure that no harm may be caused to Easee or by misleading the consumer. Easee and Easee products, product names, trademarks and slogans, whether registered or not, are Easee’s intellectual...
