- Page 1 Installer and User guide Equalizer Amp...
-
Page 2: Warnings And Cautions
Introduction The information in this leaflet applies to Easee Equalizer Amp , unless specified otherwise. Read the Important product information guide in the product packaging or at easee.com/manuals before using the product. WARNINGS AND CAUTIONS A Warning indicates a condition, hazard or unsafe practice that can result in serious personal injury or death. -
Page 3: Technical Specifications
Technical specifications General Dimensions Product 95 x 51 x 30 mm (H x W x D) Operating temperature -20 °C to +50 °C Weight 105 g Supply 85-264 V AC Installation system TT, IT or TN Phases 1- or 3-phase Current sensors Type CT clamps... -
Page 4: Product Overview

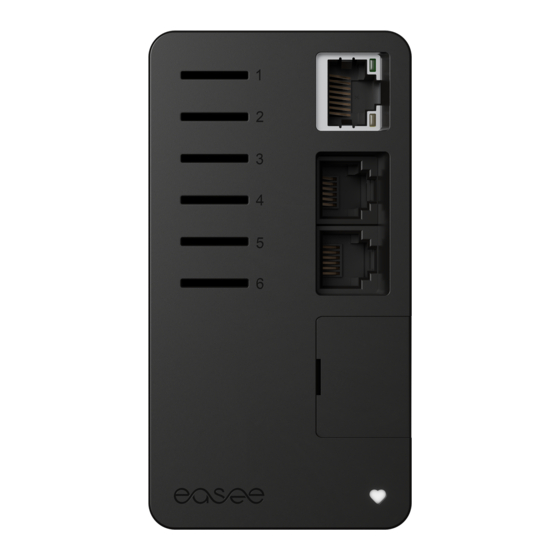

Product overview Power cable Equalizer Amp Current sensors x 3 DIN bracket Expansion connector *Plug not included for the power cable. -
Page 5: Installation Instructions
Installation Equalizer Amp instructions Mounting WARNING Mount the Equalizer Amp on the DIN rail (A) inside the fuse cabinet. If that’s This product shall only be installed, not possible, attach the included DIN repaired or serviced by an authorised bracket (B) to a surface and then electrician. - Page 6 Plug the current sensors, L1, L2 and L3, Current sensors into their respective terminals 1, 2 and 3. Attaching NOTE! Depending on national standards, the colour of the cables can vary from Attach current sensor(s) around each illustration. conductor either in front or behind the main fuse.
- Page 7 The current direction is correct on the Connect the included power cable to current sensors. a suitable power source. A separate o The charging sites and the Equalizer Amp fuse with a maximum rating of 16 A is have the same phase sequence. recommended.
- Page 8 Go to ”Ongoing sites”, or ”Update Equalizer existing site”, and select your site. Setting up Under ”Site structure”, select ”Add Equalizer”. Use the Installer App to configure the Enter the WiFi information (the same Equalizer on a site with multiple circuits. network the chargers are connected to).
- Page 9 The device is free from material defects and is in accordance with laws and regulations for consumer protection in the country where the product is purchased. All correctly installed Easee hardware is covered by our 3 years* limited warranty. *Some countries may have extended warranty. Maintenance This product requires no maintenance.
- Page 10 Easee or its subsidiaries in writing. Any permitted use shall always be done in accordance with good practice and ensure that no harm may be caused to Easee or by misleading the consumer. Easee and Easee products, product names, trademarks and slogans, whether registered or not, are Easee’s intellectual...
