- Page 1 Quick guide Equalizer...
- Page 2 IMPORTANT Read carefully before use. Keep for future reference. You can find other languages, answers to frequently asked questions and other useful information at easee.support.
- Page 3 The product needs to be paired with a Charging Robot and connected to a compatible smart meter with the cable provided. In order for the Equalizer to work, the smart meter’s HAN port needs to be activated. The product may only be operated with the approved operating parameters and under the specified environmental conditions (see pages 5 and 9).

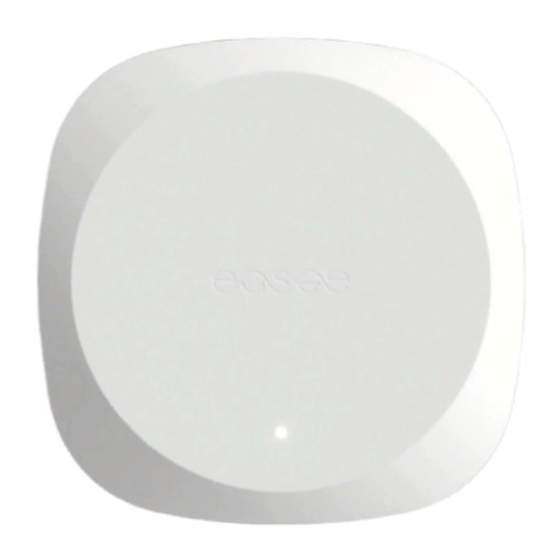

- Page 4 Product overview Touch button Magnetic backside Equalizer (side view) Wall mounting kit (for non-metallic surfaces) Cable...
- Page 5 Extended with a RJ45 adapter (up to 200 m) Connectivity Easee Link RF and WiFi* HAN connection to energy meter Monitor power consumption with the Easee app RFID / NFC reader *WiFi is required for normal operation. When offline, it will continue to work via Easee Link RF...
- Page 6 The Equalizer does not need to be connected to a power source during this step. Hold the front side of the Equalizer over the light strip of the Easee charger and move it slowly downwards. When the charger lights green, the pairing is done!
- Page 7 WiFi. Once connected, it is automatically added to the Easee app! Place the magnetic backside of the Equalizer directly on a metallic surface. If a metallic surface is not available, fix the metallic disc with a screw on the wall and then snap the Equalizer to it.
- Page 8 Red / blue, switching – No internet connection Red, flashing – No data from power meter Red, breathing every 10s – Error Touch the Easee logo in the middle to check power consumption: Blue, fast flashing – High power consumption Blue, slow flashing –...
- Page 9 Even in 1-phase setups, we recommend using a 3-phase cable to future proof the installation. Protection The Equalizer is IP40. This means it has no protection against water. If placed outside the house, it must be installed inside a cabinet protected from the weather.
- Page 10 Observe local regulations for correct and environmentally friendly disposal. Returns and complaints Contact your distributor or Easee Customer Support at easee.support regarding the return and complaint of your product. Contact details...
- Page 11 Easee AS. Easee and all other Easee product names and slogans are trademarks or registered trademarks of Easee AS. Easee products can be protected by one or more patents. All other products and services mentioned may be trademarks or service marks of their respective owners.
- Page 12 Easee AS Professor Olav Hanssens vei 7A 4021 Stavanger, Norway .easee-international.com...
