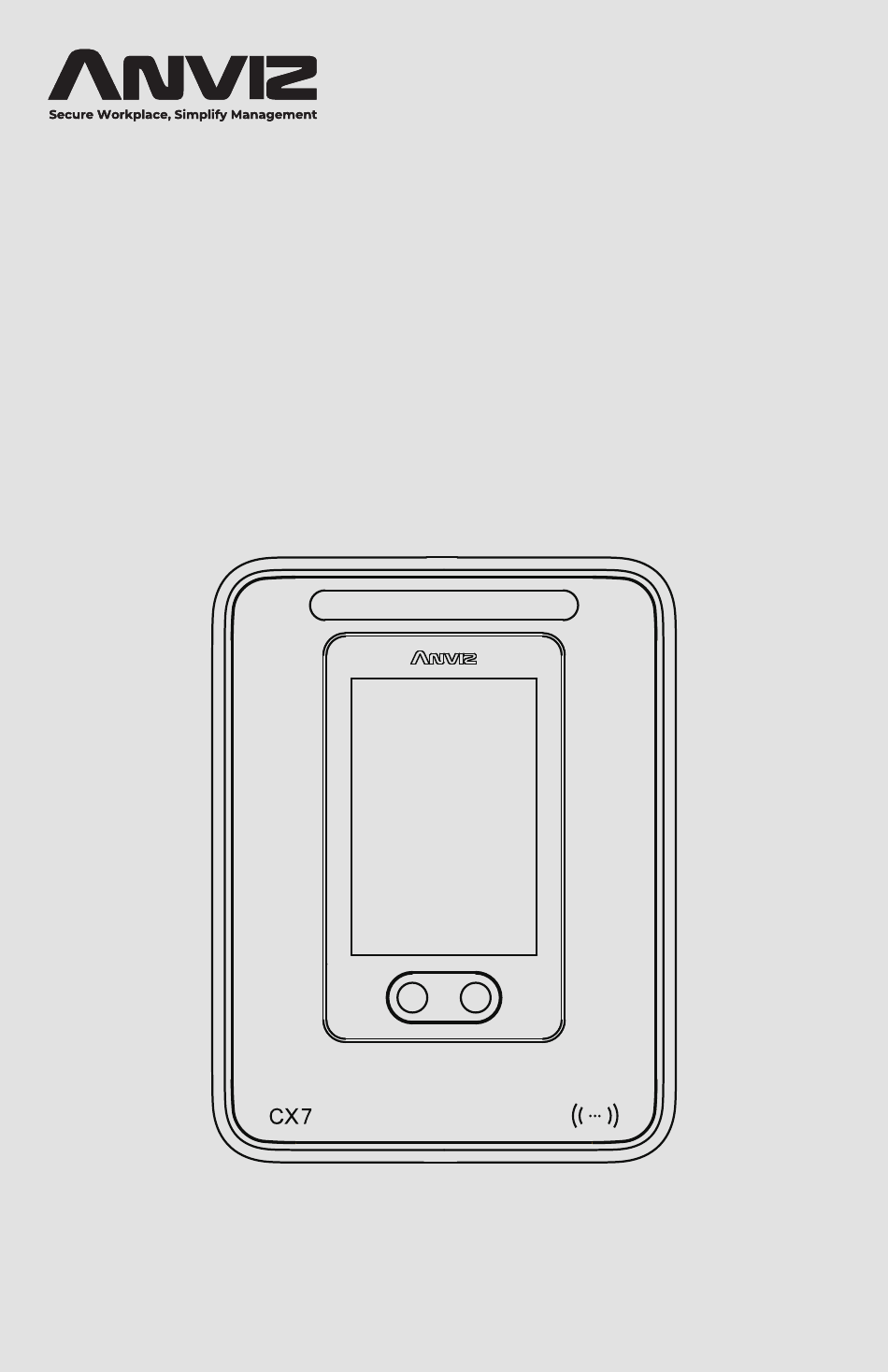

  • Page 1 Touchless Face Recognition Time Clock User Guide Rev: 06/2022...

  • Page 3: Table Of Contents

    CONTENTS Step 1 Create CrossChex Cloud Account Step 2 Activate your CX7 Time Clock Step 3 Add Department Step 4 Device Management Step 5 Add Employee Step 6 Device Wall Mount Step 7 CX7 Introduction Step 8 Device Operation Warranty Warranty &...

  • Page 4: Create Crosschex Cloud Account

    Step 1 Create CrossChex Cloud Account Before setting up your new CX7, it´s necessary to create a Cross Chex Cloud Account. CrossChex Cloud is a cloud-based time and attendance management system, you can use it anywhere over internet with any internet browser.

  • Page 5: Step

    Please fill the E-mail and Password fields, We suggest read Terms of Service and Privacy Policy. Then fill the “Agree to Anviz Global Terms of Service and Privacy Policy.” box to continue. Click “Register” to proceed. Notice: “Register to receive periodic newsletter and updates on products, software and services”...

  • Page 6: Step

    As next step, CrossChex Cloud will forward you to the pre-settings page： Please make sure to fill them correctly, especially the Time Zone  field, it will be used as reference to synchronize your CX7 devices with the correct date and time. Click “Confirm” to complete the pre-settings page.

  • Page 7: Activate Your Cx7 Time Clock

    Step 2 Activate your CX7 Time Clock The CX7 can be connected with the internet by Ethernet cable (LAN) and WiFi. Languages English Español Français Português Loading... Loading… I . Plug your Time Clock into a power outlet to power on the terminal.

  • Page 8: Step

    Gateway 2.2 Wireless Network Setup (WiFi) WiFi Network Settings Anviz Global Anviz M-Bio-28411C Anviz O ce CA F1 Anviz O ce CA F2 Ethernet WIFI Anviz O ce CA F5 1 Select the preferred WiFi network (SSID). - 6 -...

  • Page 9: Step

    WiFi setup. After WiFi connected the terminal will to next proceed. Network Setting WiFi Connecting Anviz Global Anviz M-Bio-28411C Anviz O ce CA F1 Anviz O ce CA F2 Anviz O ce CA F5 Notice: Please make sure the Network setup correct. The terminal is necessary to connect with internet.

  • Page 10: Step

    2.3 Cloud Setup Cloud anviz Company ID ······ Password Server IP US-Server Please visit https://us.crosschexcloud.com/ if you do not have an account yet, you can configure it anytime by accessing Menu > Network > Cloud. 18 28 1 Fill the Company ID and Password in the terminal. click “Set” to proceed.

  • Page 11: Add Department

    Step 3 Add Department Departments are used to group users and time clock terminals together within the Cloud system. Login the cloud system, you will be signed in at the main page, the  Dashboard. 1 At the top bar, click “Organization” , you´ll be automatically forwarded to the Department area of the software.

  • Page 12: Device Management

    Notice: After creating departments you will be able to assign device(s) to a respective department and give local permission for users and employees. Be careful when deleting departments with employees and/or devices assigned at them, it can affect your system reports when modifying them wrongly.

  • Page 13: Add Employee

    Step 5 Add Employee In the employee management area it´s possible to add users or employees information and assign them to the created departments at Step 3. At the top bar, click “Organization” and “Employee”. You´ll be able to see your created users / employees. At the right side of the Employee´s page, click “Add”...
  • Page 14 Notice: The default employee is the administrator / account owner user, he/she will always have total control of the software. This user can be modified but cannot be deleted from your account. The picture uploaded at this button is optional and will not be used as facial recognition, please read next steps for more details.
  • Page 15 Multi Dept: this is where you can set specific permissions for each employee. Select the additional departments the employee will be also be able to clock In and clock Out in this field. Automatic calculation of overtime work beyond scheduled time : if the employee has an overtime beyond the scheduled limit at his/her shift and overtime settings, it will be shown at his/her overtime reports by filling this box.
  • Page 16 Face Enroll Please choose and select the device for real time enrollment, then click “Face Enroll” to activate the terminal’s enrollment mode. Please follow the steps on the device’s display or voice prompt to enroll the employee´s face. Upload Photo If the employee is not nearby, the upload photo option is more convenient than real-time enrollment.
  • Page 17 Click “Upload Photo” in the next window and select the chosen photo. Use the blue square to adjust the recognition area to the Employee´s Face. Click “Save” and click “X” at the top right corner to finish employee´s enrollment operation. Click “Next” to proceed to Role Settings. Role Settings Enable a log in page for the selected employee.
  • Page 18 Scheduled Settings You can assign a working shift for this specific employee. It´s possible to navigate by months with the arrows <Prev and Next> to see existing scheduled shifts or simply click in any day to add this employee a working shift. By clicking a specific day, you can input the start and end Date for the shift.

  • Page 19: Device Wall Mount

    30-80cm (11.81-31.50"). The best adaptive angles are ±20° both horizontally and vertically 2 The recommended vertical installation is 1.1m (43.31"), where the CX7 can recognize enrolled faces from 1.3m (51.18") to 2.2m (86.61") height. Terminal Installation 1 Place the backplate at the appropriate position and fix screws into the wall according to the mounting holes.

  • Page 20: Cx7 Introduction

    3 Fix the device on the backplate and fix the bottom screw. Step 7 CX7 Introduction Terminal Quick Guide Accessories TCP/IP Touch Screen Access Control I/O Dual Cameras Restart Button Power Switch USB Flash Drive Port Power Card Reader Area...

  • Page 21: Device Operation

    DC12V Power Adapt Magnetic Lock Door Sensor Step 8 Device Operation To be reviewed after CX7 connection with the cloud software. There are four status icon display on the right top of the screen: The status of the WIFI connection. Main 8213 The status of the LAN connection.
  • Page 22 Network Settings - Ethernet Network Ethernet Active Options Static Retrieve IP mode Ethernet WiFi Get DNS Manual Device IP 192.168.0.31 Subnet mask 255.255.255.0 192.168.0.1 Gateway Internet Cloud Network: Setup the terminal network connection. Include the Ethernet, WiFi, Internet and Cloud connection. Select “Ethernet”...
  • Page 23 Device IP: Set the device IP manually in case Static IP mode (Default: 192.168.0.218). Subnet Mask: Set the device Subnet mask manually in case Static IP mode (Default: 255.255.255.0). Gateway: Set the device Gateway manually in case Static IP mode (Default: 192.168.0.1).
  • Page 24 Select the “WiFi” option to set up the wireless connection of the terminal. Option: Active or inactive the WiFi network communication. ESSID: Displays the connected WiFi ESSID. IP Mode: “Static” for fixed IP or “DHCP” for dynamic IP mode. Get DNS: Select between “Manual” or “Auto”. Manual: Get the DNS by setup in the “Internet”...
  • Page 25 DNS: Please define the DNS address here if you choose the Manual option at Get DNS field in Ethernet and/or WiFi configuration option. Network Settings – Cloud Cloud Cloud anviz 100% Company ID Geteway Test ······ 100% Password...
  • Page 26 T&A (Time and Attendance Settings) T&A Duplicate Punch Range (0-250min) 1000 Log Alarm Threshold (0-5000) Precision Basic Live Detection Enable Recognition Distance Default( 200cm) Duplicate Punch Range(0-250min): Set the time interval for repeated punching of the same employee to prevent system from generating duplicate punching records (Default: 0).
  • Page 27 Lock Delay Time(0-15s): Setup the relay delay time 0~15 secs (Default: 5 secs) Wiegand Format: Define the terminal Wiegand output format, the CX7 supports up to 11 Wiegand types. (Device Wiegand\Wiegand 26 \Wiegand26BE\Wiegand26LE\Wiegand34BE\Wiegand34LE\Card24Bi g\Card24Little\Card32Big\Card32 Little\Fix Wiegnd Code) Fix Facility Code: Self-defined head of the Wiegand code output. To be integrated with existing access control system.
  • Page 28 Test & Update Test Update Screen Voice Touch White Screen Black Screen Green Screen Red Screen Blue Screen Yellow Screen Please ensure plug in the flash drive with update file in the root path Start Cancel The Test mode: the user can test device´s keyboard, LCD display and speaker (alarms and voices).

  • Page 29: Warranty

    An RMA number is valid for two months from the date of its issuance. An RMA number that is more than two months old is null and void, and in such a case, you need to get a new RMA number from Anviz technical support engineer.
  • Page 30 Please gently wipe the screen and panel with soft materials. Avoid scrubbing with water or detergent. The recommended power of CX7 terminal is DC 12V ~ 2A. The device will function less effective in case the power supply cable extends too long.
  • Page 32 Questions? Call Text 855-ANVIZ4U | 855-268-4948 408-837-7536 MON-FRI 5AM-5PM Pacific MON-FRI 5AM-5PM Pacific Email Community support@anviz.com Join community.anviz.com if you haveany question or 24 Hours Answer suggestion to share - 32 -...
