3 PCB Layout Design

3.2 Positioning a Module on a Base Board

If module-on-board design is adopted, attention should be paid while positioning the module on the base board.
The interference of the base board on the module's antenna performance should be minimized.
It is suggested to place the module's on-board PCB antenna outside the base board, and the feed point of the
antenna closest to the board. In the following example figures, positions with mark ✓are strongly recommended,
while positions without a mark are not recommended.

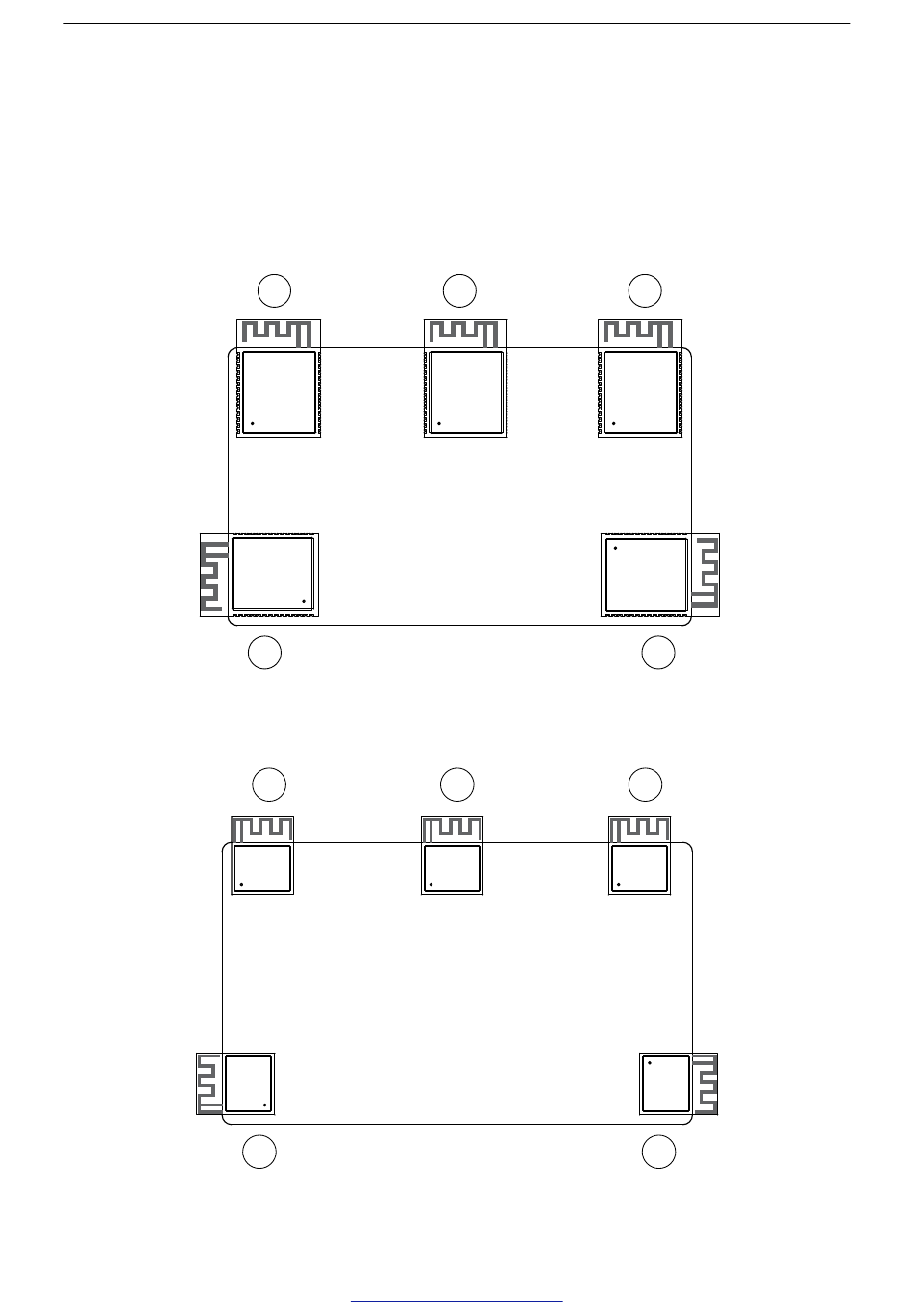

Figure 14: Placement of ESP32-C6 Modules on Base Board (antenna feed point on the right)
Figure 15: Placement of ESP32-C6 Modules on Base Board (antenna feed point on the left)
Espressif Systems
1
5
✓
1
✓
5
Submit Documentation Feedback
2
Base board
2
Base board
20
ESP32-C6 Series Hardware Design Guidelines v1.0
✓
3
✓
4
3
4
