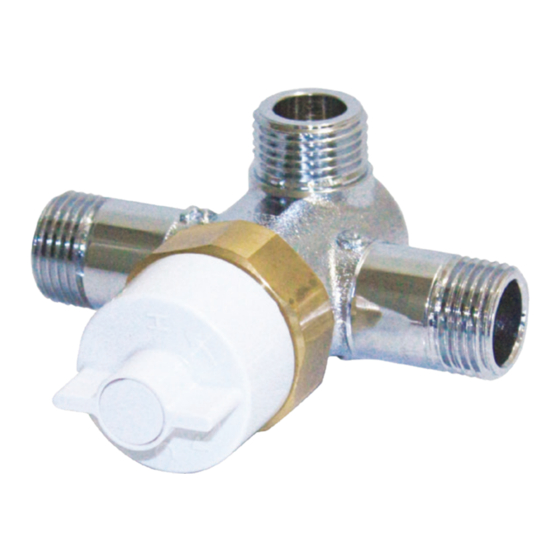

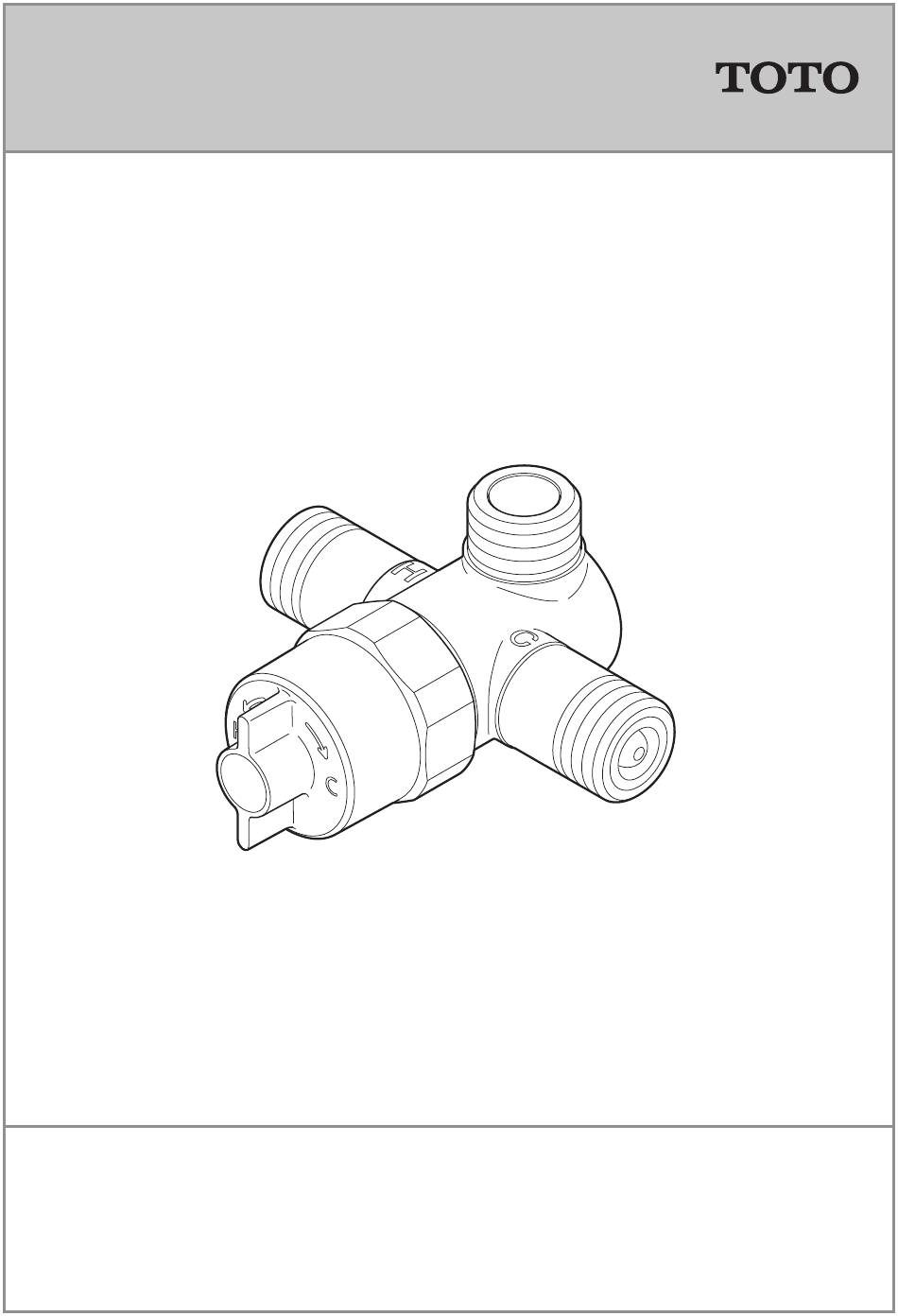

- Page 1 Installation and Owner’s Manual Thermostatic Mixing Valve for Lavatory Faucet TLE05701A Thank you for choosing TOTO's Thermostatic Mixing Valve. For the best performance, please read this manual carefully. Keep this manual in a safe handy place for future reference.
- Page 2 TABLE OF CONTENTS WARNINGS ......................2 INCLUDED PARTS ....................3 BEFORE INSTALLATION ..................3 CARE & CLEANING ....................3 INSTALLATION PROCEDURE ................4 ADJUSTING MAXIMUM OUTLET TEMPERATURE ........... 5 ADJUSTING OUTLET TEMPERATRURE ............5 ACCESSING ANG CLEANING THE VALVE ............5 SPECIFICATIONS ....................
- Page 3 INCLUDED PARTS Check to make sure you have all these parts from the package*: (Appearance of some components may vary depending on the model) BEFORE INSTALLATION Observe all local plumbing codes. Flush all piping thoroughly before installing the valve. ...
- Page 4 INSTALLATION PROCEDURE CAUTION: RISK OF PERSONAL INJURY. This valve requires the maximum outlet temperature to be set/adjusted by the installer. The maximum outlet water temperature should never exceed 49 °C. 1. Turn off the main water supply. 2. Connect the hot water supply to the inlet marked "H" and the cold water supply to the inlet marked "C".
- Page 5 ADJUSTING MAXIMUM OUTLET TEMPERATURE 1. Shut the water off at the stop valves. 2. To decrease temperature: Remove screw and cap and pull handle slowly to remove. Turn handle counter-clockwise one notch and reinstall onto cartridge. To increase temperature: Remove screw and pull handle slowly to remove.
- Page 6 SPECIFICATIONS Minimum water pressure: 0.05 MPa (Flowing) Water Supply Pressure Maximum water pressure: 0.75 MPa (Resting) Water Supply Connection G1/2 Ambient Temperature 0-40 °C Humidity Max. 90% RH Recommended temperature range 60-85 °C (hot supply) Recommended temperature range Ambient temperature (cold supply) Temperature Adjustment Range 36±2 °C...
- Page 7 TOTO sales office. If, because of the size of the product or nature of the defect, the product can not be returned to TOTO, receipt by TOTO of written notice of the defect shall constitute delivery.In such case, TOTO may choose to repair the product at the purchaser's location or pay to transport the product to a service facility.
- Page 8 TOTO ASIA OCEANIA 10, Eunos Road 8, #12-07, Singapore Post Centre. Singapore 408600. PTE. LTD. Phone : +65-6744-6955 Fax : +65-6841-0819 http://asia.toto.com/ TOTO ASIA OCEANIA LOB19-1701-1702, Jebel Ali Free Zone, P.O. box 261804, Dubai U.A.E. PTE. LTD. Phone : +971-4-886-5983 Fax : +971-4-886-5986 Middle East Branch http://asia.toto.com/...
