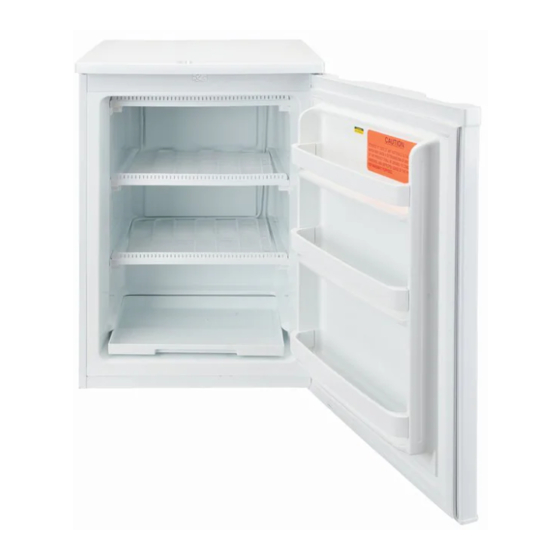

- Page 1 Operation and Installation manual Isotemp™ Freezer, Flammable Materials Storage & Explosion Proof Freezers Model No. Flammable Materials Storage Freezer 05FFEEFSA Freezer 05LFEEFSA Explosion Proof Freezer 05EFEEFSA...
- Page 2 The Fisher Scientific™ channel makes no representations or warranties with respect to this manual. In no event shall the Fisher Scientific channel be held liable for any damages, direct or incidental, arising from or related to the use of this manual.
-
Page 3: Table Of Contents
Contents Safety Information ............1 Alert Signals ............. 1 Intended Use Statement........... 1 Explosion Proof and Freezers........3 Overview ..............3 Flammable Material Storage Freezers ......5 Overview ..............5 Laboratory Freezers ............. 7 Overview ..............7 Unpacking and Installation ........... 8 Shipping Carton ............ - Page 4 Interior/Exterior and Door Gaskets......13 Troubleshooting ............14 Replacement Parts ............15 Ordering Procedures............ 16 Warranty ..............17...
-
Page 5: Safety Information
Safety Information Your satisfaction and safety are important to the Fisher Shock Hazard: Use of this equipment involves Scientific channel and a complete understanding of this unit is power supplies which convert line voltage to low necessary to attain these objectives. voltage power. - Page 6 Corrosive Materials Requiring Refrigerated or Frozen Storage • Only use models rated as Corrosion Resistant. • Corrosion Resistant does not mean Corrosion Proof – Care in storage is still required. • Store only corrosive reagents/samples which truly need reduced temperature storage. •...
-
Page 7: Explosion Proof And Freezers
The The construction of our explosion-proof units has been Fisher Scientific channel cannot assist with the evaluated by Underwriters Laboratories (UL) and are suitable selection of devices, recommend, approve or for use in classified areas requiring Class I, Groups C and D* design any device or monitoring circuit. - Page 8 Electrical Freezer Temp.Range Net Wt. Ship Wt. Model Characteristics °C (°F) Lbs. (kg) Lbs. (kg) Volts/Hz, Amps 05EFEEFSA 115/60, 1.1 -12 to -24 90 (41) 95 (43) (10.4 to -11.2) Note: Amps listed are at normal run mode, starting amps may be higher. Explosion Proof and Freezers Isotemp Freezer, Flammable Materials Storage &...
-
Page 9: Flammable Material Storage Freezers
Division 1, Groups C and D environments, which require responsibility to meet these requirements. The an Explosion- Proof Freezer. Fisher Scientific channel cannot assist with the FMS units are designed and evaluated by Underwriters selection of devices, recommend, approve or Laboratories (UL) to meet the requirements of the National design any device or monitoring circuit. - Page 10 Electrical Freezer Temp.Range Net Wt. Ship Wt. Model Characteristics °C (°F) Lbs. (kg) Lbs. (kg) Volts/Hz, Amps 05FFEEFSA 115/60, 1.1 -12 to -24 90 (41) 95 (43) (10.4 to -11.2) Note: Amps listed are at normal run mode, starting amps may be higher. Flammable Material Storage Freezers Isotemp Freezer, Flammable Materials Storage &...
-
Page 11: Laboratory Freezers
Laboratory Freezers Overview These are general-purpose units available in all freezer and combination /freezer models. These units are intended for basic laboratory use only. Storage of high-value, life science materials or clinical biological materials may require alarm, monitoring, back-up and temperature performance features. The need to add these features should be determined by your industrial hygienist or safety officer. -
Page 12: Unpacking And Installation
Unpacking and Installation Shipping Carton Electrical This should be inspected upon delivery. When received, With the exception of Explosion-Proof models, all units must carefully examine for any shipping damage before unpacking. be connected to a grounded outlet matching the nameplate If damage is discovered, the delivering carrier should both and/or the information furnished in this manual. - Page 13 WARNING: BEFORE CONNECTING THE FINAL POWER SUPPLY, CHECK THE ELECTRICAL CHARACTERISTICS OF THE UNIT NAMEPLATE TO SEE THAT IT IS IN AGREEMENT WITH THE POWER SUPPLIED. IN ADDITION, POWER SHOULD BE WIRED TO THE UNIT ACCORDING TO THE ELECTRICAL SCHEMATIC AND ALL APPLICABLE CODES.
- Page 14 • Pour sealing compound down in between the two fiber rope dams filling the remaining space. Pour slowly, being careful not to trap air bubbles. Immediately wipe off any spilled sealing compound. • Screw conduit domed-cover back onto conduit opening. Note: INITIAL SETUP OF SEALING COMPOUND WILL OCCUR IN APPROXIMATELY 30 MINUTES HOWEVER, THE SEALING COMPOUND REQUIRES A MINIMUM OF 8...
-
Page 15: Operation
Operation 3. When defrosting is complete, remove drip tray and Environmental Operating dispose of water. Set cold control back to original position. Conditions CAUTION: Do not use any sharp instrument, blade or scraper to remove ice and frost on freezer surfaces because of the very real danger POLLUTION DEGREE* of puncturing the cooling coil. -
Page 16: Safety Tips
• Wipe moisture from glassware or other materials before placing them in a unit. • Don't overcrowd the unit. Too many items can increase electrical energy demand in order to keep everything cool. • Close the door as soon as possible in hot, humid weather. -
Page 17: Maintenance
Maintenance Cleaning of Units • Turn off the freezer. • Wash interior liner with a solution of two tablespoons of baking soda and a quart of warm water. Then, rinse and wipe it out. • Do not use soaps, detergents, scouring powders, spray cleaners or the like for cleaning the interior liner, as these may cause odors in the freezer compartment. -
Page 18: Troubleshooting
Troubleshooting In the event that your unit is not operating properly, check the following before calling for service assistance. This may save you the cost of unnecessary service calls. Symptom Possible cause of Problem Unit not operating Not plugged in. The circuit breaker has tripped or the fuse has blown. -
Page 19: Replacement Parts
Replacement Parts To obtain replacement parts information and pricing, please call the Customer Service Department at 1-800-438-4851 and have the unit’s model, serial and code numbers available. This information is located on data plates on the rear of the unit. Isotemp Freezer, Flammable Materials Storage &... -
Page 20: Ordering Procedures
Ordering Procedures Please refer to the Specification Plate for the complete model number, serial number, and series number when requesting service, replacement parts or in any correspondence concerning this unit. All parts listed herein may be ordered from the Fisher Scientific dealer from whom you purchased this unit or can be obtained promptly from the factory. -
Page 21: Warranty
Warranty Laboratory instruments and equipment manufactured by which are inconsistent or in conflict with the foregoing Fisher Scientific Company L.L.C. – Laboratory Equipment warranty shall not be binding upon the Company unless Division (hereinafter called the Company”) are warranted only reduced to writing and signed by an officer of the as stated below. - Page 22 (manufacturer or specific agent/rep organization), and purchase order number. If you need assistance: The Fisher Scientific brand products are backed by a global technical support team ready to support your applications. We offer cold storage accessories, including remote alarms, temperature recorders, and validation services.
- Page 23 Fisher Scientific Company L.L.C. 275 Aiken Road Asheville, NC 28804 United States 327343H01 Rev.E July 2018 In the United States: For customer service, call 1-800-766-7000 To fax an order, use 1-800-926-1166 To order online: fishersci.com © 2018 Thermo Fisher Scientific Inc. All rights reserved.
