Summary of Contents for Parker IQAN MDM

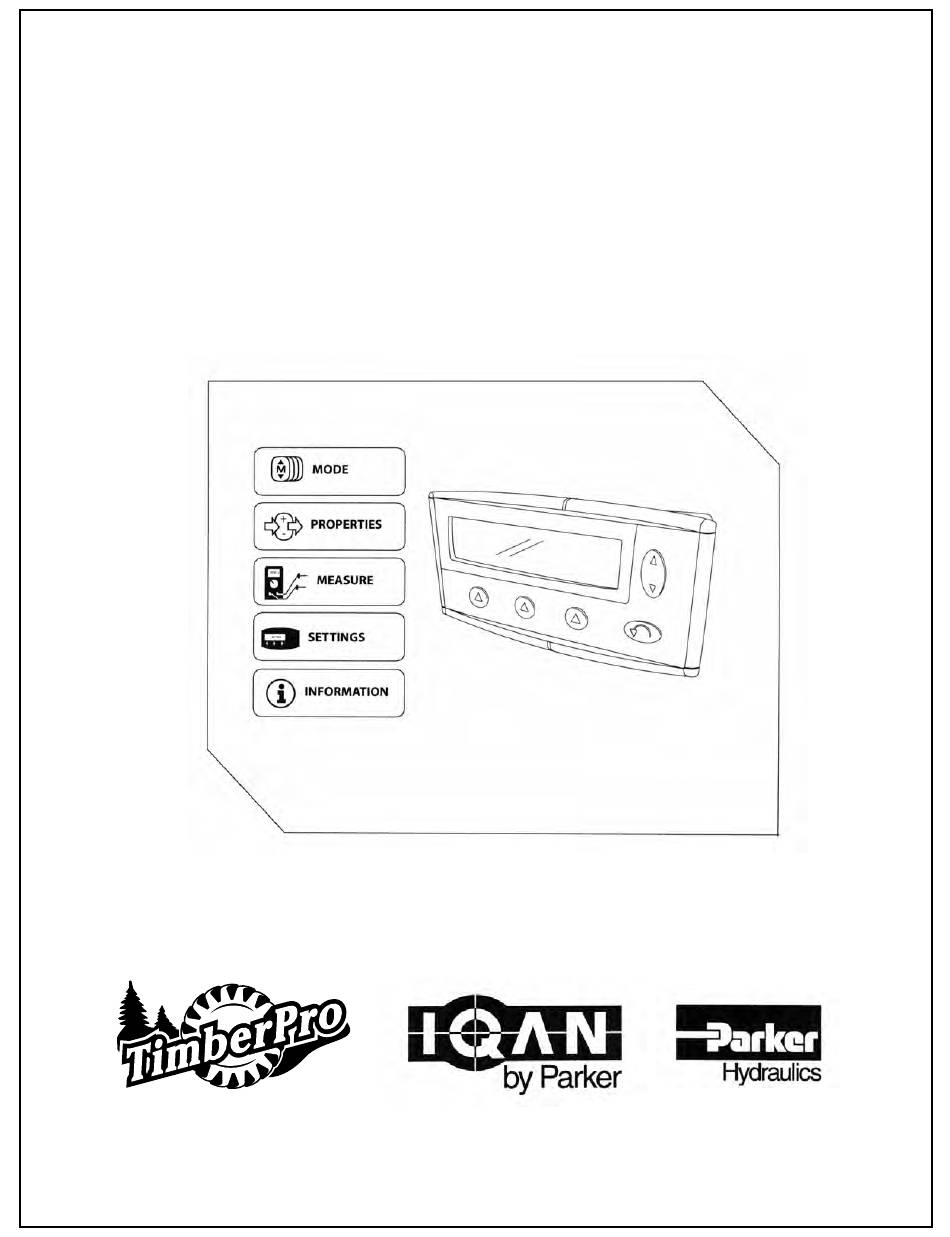

  • Page 1 IQAN MDM Operation Manual...

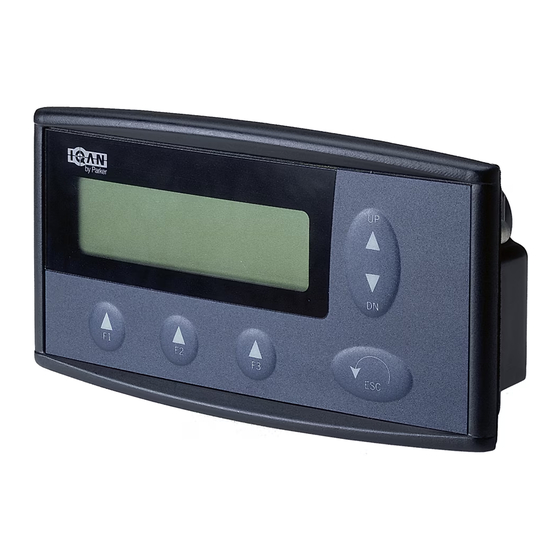

  • Page 2 This is accomplished through the IQAN-MDM. The IQAN MDM is the Master Display Module which is the primary operator interface, but also is where the memory of the program resides. All Application programs are loaded through a serial port in the back of the MDM unit.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Purpose of MDM Display and Manual Introduction of MDM and Control Buttons Menus and Display Information Mode Menu Changing Operator Modes Copying Operator Modes Information Menu Settings Menu Changing Screen Lighting Changing Display Language Changine Time and Date Measure Menu Measuring Inputs Measuring Outputs...
  • Page 6 SUB MENUS The system consist of five sub menus which allow for settings of the screen, adjusting machine settings, measuring, and setting operators. The five sub Screens are: MODE- IQAN Allows for Four different operator settings which are selected in the MODE screen.

  • Page 7: Mode Menu

    MODE MENU This menu allows for the machine to be set up as four different operators. Normally, the manufacturer of the machine will allow for the operators and a factory default. The MODE 1 will allow operator 1 to set the machine up as he wishes in the PROPERTIES screen and then his settings will be saved.
  • Page 8 CHANGING MODE Push ESC button to enter sub menus. IF Mode does not appear, press UP/DN button until MODE screen appears. Press F1 to select MODE, then press UP/DN to scroll to desired number. Use Up / Down Desired mode Once MODE number is selected for the correct operator press F1.

  • Page 9: Copying Operator Modes

    COPYING MODES In copying of the MODE, if the primary operator has set the machine to a optimal condition in MODE 1, this setting can be copied to MODE 2 and 3. Please note MODE 4 may be factory default and no other MODE will copy over MODE 4. Once F1 is pushed for OK then the copying screen will show.

  • Page 10: Information Menu

    INFORMATION MENU INFORMATION- Informs on the Application including serial Number Identification and comments from the manufacturer. Also, all information on module communication and status is displayed in the INFORMATION screen. This allows review of each module of the system to determine if components are online and enabled. Also, under Comment F2, a detailed listing of information from the manufacturer of the machine is stored here, such as machine serial number and information about the machine.
  • Page 11 Module Serial Number is reflected once a particular module is displayed. Status: F1 : Allows for Enabling or Disabling a given Module. INTERNAL F2 gives the following information about the module. Vbat- Main Power Supply Voltage Vref- Reference voltage as supplied by XS, XP, XP2 should be 5.0 Volts Temp- Internal Temperature of the module in Degrees Celsius.

  • Page 12: Settings Menu

    SETTINGS MENU SETTINGS-The changes on this are for informational configuration for the operator of the machine. Changes include Light and Contrast adjustment. Language change from the primary language to the alternate language, such as English to French. Set Volume on Alarm Buzzer.
  • Page 13 Light Settings are made in same fashion as LCD contrast settings.
  • Page 14 LANGUAGE CHANGE Language change is the change from the primary to secondary language settings that the manufacturer has configured for their machine. IQAN Supports the following Languages English German French Spanish Portuguese Italian Swedish Finnish Norwegian Danish F1- OK to change made F2- Cancels Change...
  • Page 15 SOUND CHANGE Change of Alarm or Button Volume.
  • Page 16 CLOCK SETTINGS In Setting the Date Time Specifications, the settings are very similar for Month, Day, Year and Hour, Minutes.
  • Page 17 Push to change month F1- OK to change made F2- Cancels Change Repeat these steps to set the day, year, and time.

  • Page 18: Measure Menu

    MEASURE MENU MEASURE- The MEASURE menu allows the operator to monitor all inputs or outputs of the IQAN system. This feature when used is the one of the most powerful aspects for the machine control system. A malfunction or performance variance can easily be viewed from the screen.
  • Page 19 This is the primary interface to determine the status of a input or output. The importance of this cannot be stressed enough. If you understand how to Measure the status of Functions, then the difficulty troubleshooting Machine issues is drastically reduced.
  • Page 20 Measure Other Voltage Inputs:...
