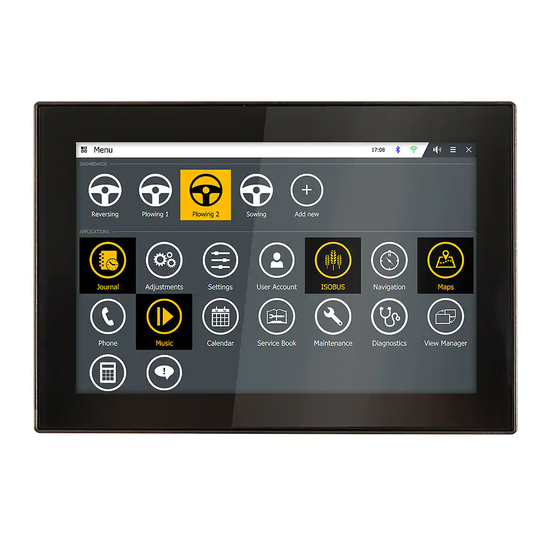

Parker Pro Display 10 Installation

Parker Pro Display 10 Installation

Hide thumbs Also See for Pro Display 10:

Advertisement

Quick Links

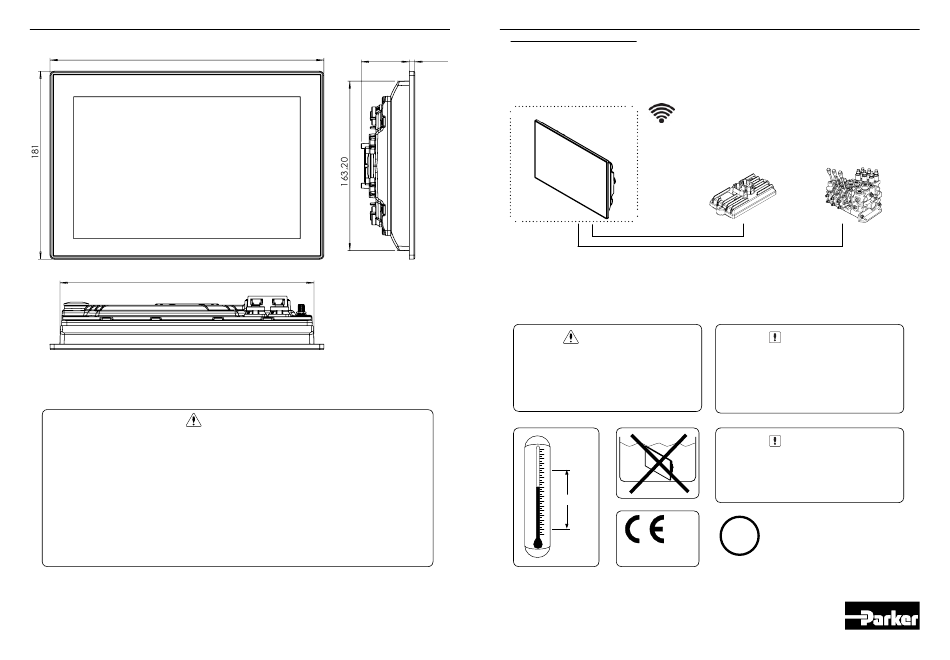

Dimensions
264
244,40
WARNING
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS AND/OR
SYSTEMS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL
INJURY AND PROPERTY DAMAGE.
This document and other information from Parker Hannifin Corporation, its subsidiaries and authorized distributors
provide product and/or system options for further investigation by users having technical expertise. It is important that
you analyze all aspects of your application, including consequences of any failure, and review the information concerning
the product or system in the current product catalogue. Due to the variety of operating conditions and applications
for these products or systems, the user, through its own analysis and testing, is solely responsible for making the final
selection of the products and systems and assuring that all performance, safety and warning requirements of the
application are met.
The products described herein, including without limitation, product features, specifications, designs, availability and
pricing, are subject to change by Parker Hannifin Corporation and its subsidiaries at any time without notice.
Installation
Pro Display 10 part numbers:
88PROD10AD10
46,20
5,30
88PROD10AS10
88PROD10AIS10
Pro Display 10 is compatible with many machine control systems.
More detailed information regarding connectivity and system overview is found from the
Instruction Book (MSG17-4020-IB/UK).
units = mm
Do not drop the module on hard
surfaces.
Do not open the module. For
repair and service, please
contact your authorized Parker
distributor.
125
100
80
60
40
20
0
-20
-40
Pro Display 10
other modules
CAUTION
Before any installation of the system
can take place, make sure that
the ignition lock of the vehicle is
turned off and that the battery is
disconnected.
-40 - +85°C
E
(2014/30/EU)
Pro Display 10
Publ.no: MSG17-4020-IS/UK
Ed. 1/2020
valves, sensors
NOTICE
NOTICE
Pro Display 10 is intended for
vehicle in-cab use only.
Sealing plugs must be inserted in
all unused pin positions.
10 R - 05 0108
17

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pro Display 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Parker Pro Display 10

  • Page 1 10 R - 05 0108 The products described herein, including without limitation, product features, specifications, designs, availability and (2014/30/EU) pricing, are subject to change by Parker Hannifin Corporation and its subsidiaries at any time without notice.
  • Page 2 Panel Assembly Pro Display 10 can be assembled to vehicle dashboard, to separate panel in vehicle cabin, or for example to cabinet door in installations where exists separate electrification cabinet. Currently Pro Display 10 has no dedicated panel mounting kits available due to the fact that the panel thickness can vary depending on assembly surface and customer needs.
  • Page 3 Wiring diagram Installation Pro Display 10 Mating connector: USB 2 Signal/Function M12-4pin male, D-coded (available 5V_USB1 from several manufacturers). USB 1 USB1- USB1+ FM RADIO SHIELD RS232 Mating connector: Signal/Function VIDEO INPUTS M12-4pin male, D-coded (available 5V_USB0 from several manufacturers).
  • Page 4 20077780 Ethernet Adapter cable, panel mount, 1,5 meters 20077785 Cable M12 to USB, 1,5 meters 88CABPRODUSB These IQAN accessories are compatible with Pro Display 10. Check the latest order information from IQAN Accessories catalogue (MSG17-8319/UK) always before placing an order.

This manual is also suitable for:

88prod10ad1088prod10as1088prod10ais10
