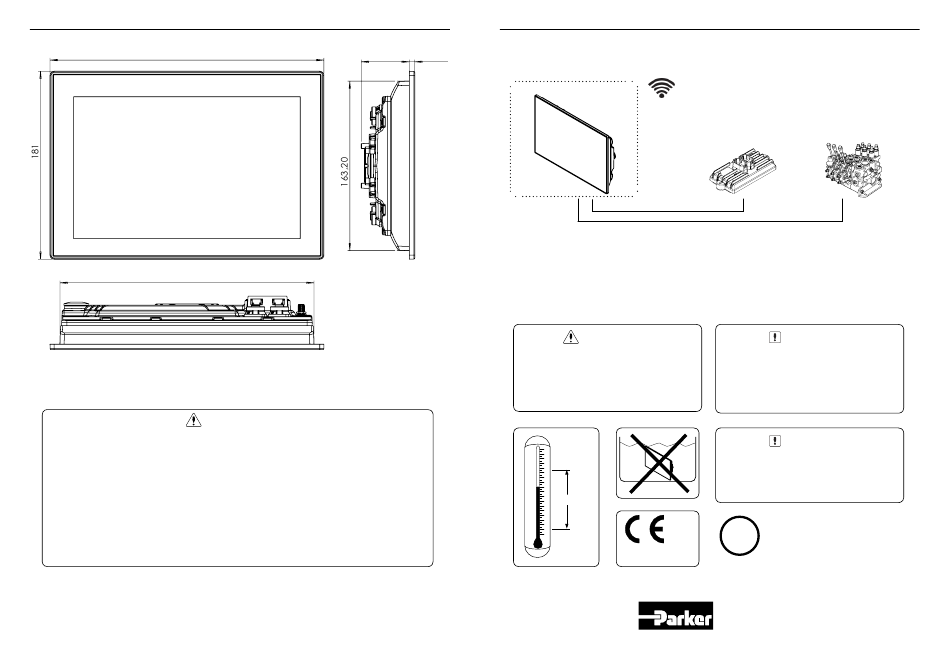

Dimensions

264
244,40
WARNING
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS AND/OR
SYSTEMS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL
INJURY AND PROPERTY DAMAGE.
This document and other information from Parker Hannifin Corporation, its subsidiaries and authorized distributors
provide product and/or system options for further investigation by users having technical expertise. It is important that
you analyze all aspects of your application, including consequences of any failure, and review the information concerning
the product or system in the current product catalogue. Due to the variety of operating conditions and applications
for these products or systems, the user, through its own analysis and testing, is solely responsible for making the final
selection of the products and systems and assuring that all performance, safety and warning requirements of the
application are met.
The products described herein, including without limitation, product features, specifications, designs, availability and
pricing, are subject to change by Parker Hannifin Corporation and its subsidiaries at any time without notice.
Installation
46,20
5,30
Pro Display 10 is compatible with many machine control systems.
More detailed information regarding connectivity and system overview is found from the
Instruction Book (HY33-4020-IB/UK).
units = mm
Do not drop the module on hard
surfaces.
Do not open the module. For
repair and service, please
contact your authorized Parker
distributor.
125
100
80
60
40
20
0
-20
-40
Pro Display 10
other modules
CAUTION
Before any installation of the system
can take place, make sure that
the ignition lock of the vehicle is
turned off and that the battery is
disconnected.
-40 - +85°C
E
(2014/30/EU)

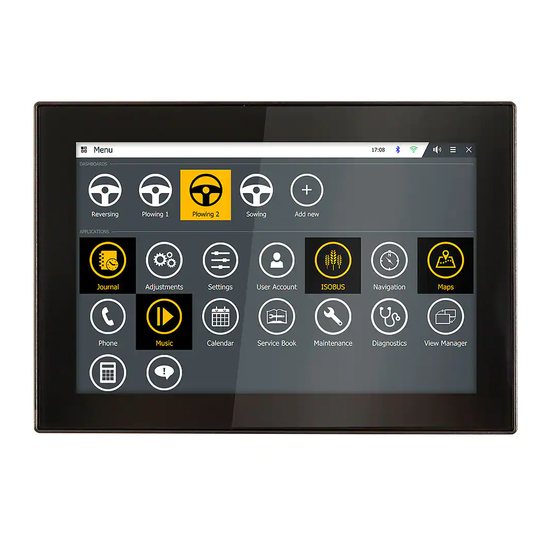

Pro Display 10
Publ.no: HY33-4020-IS/UK
Ed. 10/2016
valves, sensors
NOTICE
NOTICE
Pro Display 10 is intended for
vehicle in-cab use only.
Sealing plugs must be inserted in
all unused pin positions.
10-R-040108
17
Eng.no:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro Display 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Parker Pro Display 10

  • Page 1 10-R-040108 The products described herein, including without limitation, product features, specifications, designs, availability and (2014/30/EU) pricing, are subject to change by Parker Hannifin Corporation and its subsidiaries at any time without notice. Eng.no:...
  • Page 2 1” RAM ball base arm (RAM-B-201) (RAM-B-202) 4 pcs: Screw M4x6 DIN7985 Torque 2,7 Nm Ordering Part numbers: Panel Mounting Kit with Bracket, Pro Display 10 88PMK2PROD10 RAM 1” Mount Kit (incl. 2 bases, a double socket arm, screws and washers) 65RAM1KIT...
  • Page 3 Wiring diagram Installation Pro Display 10 Mating connector: Signal/Function M12-4pin male, D-coded (available 5V_USB1 from several manufacturers). USB1- USB1+ SHIELD Mating connector: Signal/Function M12-4pin male, D-coded (available 5V_USB0 from several manufacturers). USB0- USB0+ Signal/Function Signal/Function WAKE-UP SHIELD CAN1_L CAN4_H CAN2_L...
  • Page 4 Secure the Micro SD card slot with cover plug. Tighten the plug lightly with small coin These IQAN accessories are compatible with Pro Display 10. Check the latest order or screwdriver to prevent it loosening during operation, and maintain IP rating of the information from IQAN Accessories catalogue (HY33-8319/UK) always before placing device.
