Installing the Device
2.2.2 Mounting the Device to a Rack
Removing the Device
To remove the device from a DIN rail, do the following:
1.
2.
3.
2.2.2 Mounting the Device to a Rack
To secure the device to a standard 48 cm (19 in) rack, do the following:
1.
2.
10
Insert a flathead screwdriver into the slot of the sliding release and move it
down.
3
1
2
1
DIN Rail
1
DIN Rail Adapter
2

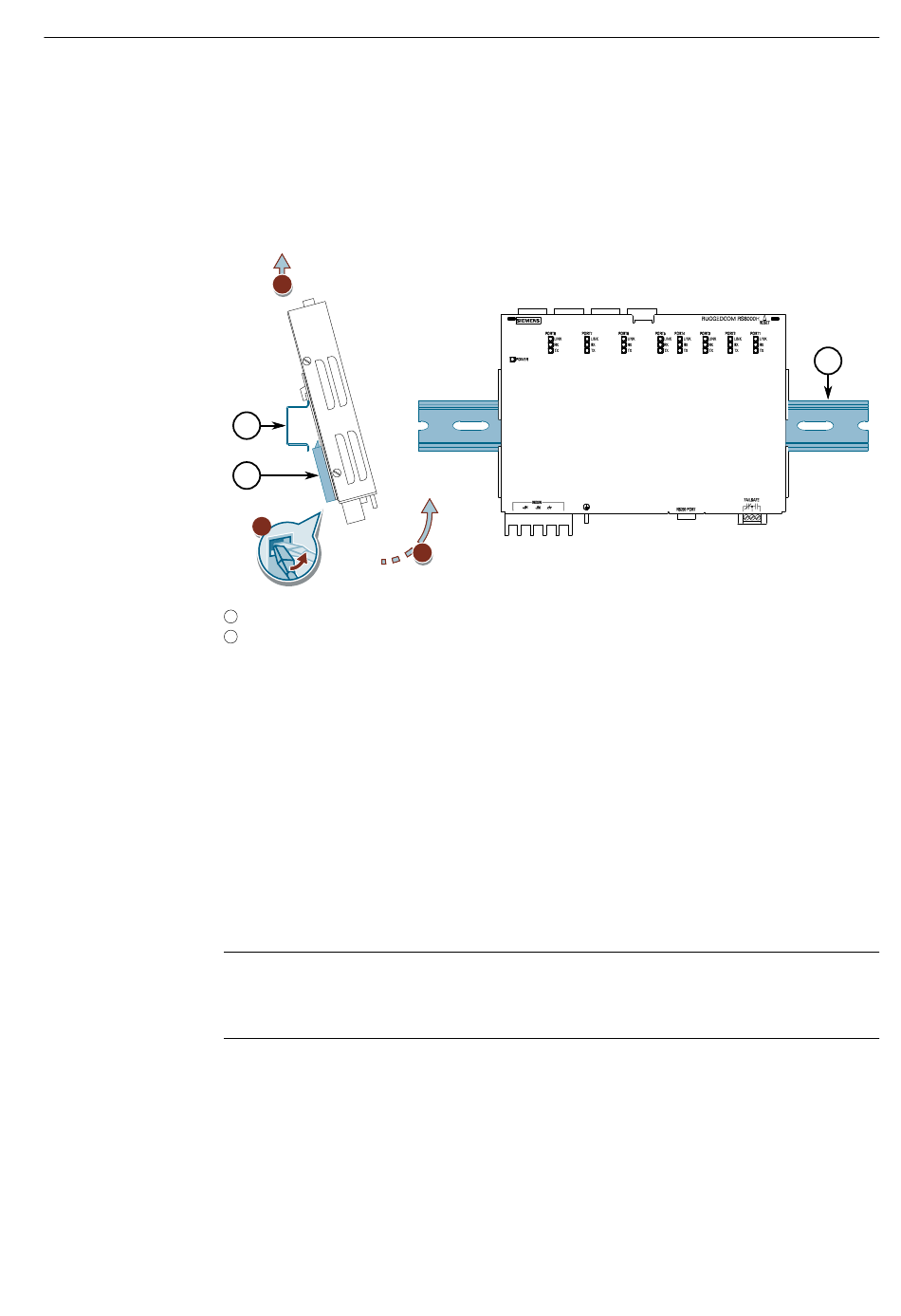

Figure 2.2 Removing the Device from a DIN Rail
Swing the bottom of the device away from the DIN rail.
Lift the device off the DIN rail.
Remove the four screws from the side of the device.
Insert the device into rack mount adapter and use the screws to secure it.
Note
The device can be installed with the communication ports facing the front or
rear of the rack, depending on the desired orientation.
