Installing the Device
2.4.2 Connecting DC Power
4.
16
Using a #6 ring tongue and #6-32 screw, secure the ground terminal on the
power source to the chassis ground terminal on the device. Make sure the lug is
tightened to 1.7 N·m (15 lbf·in).
1
Stainless Steel Stud
1
#6-32 Screw
2
#6 Ring Tongue
3

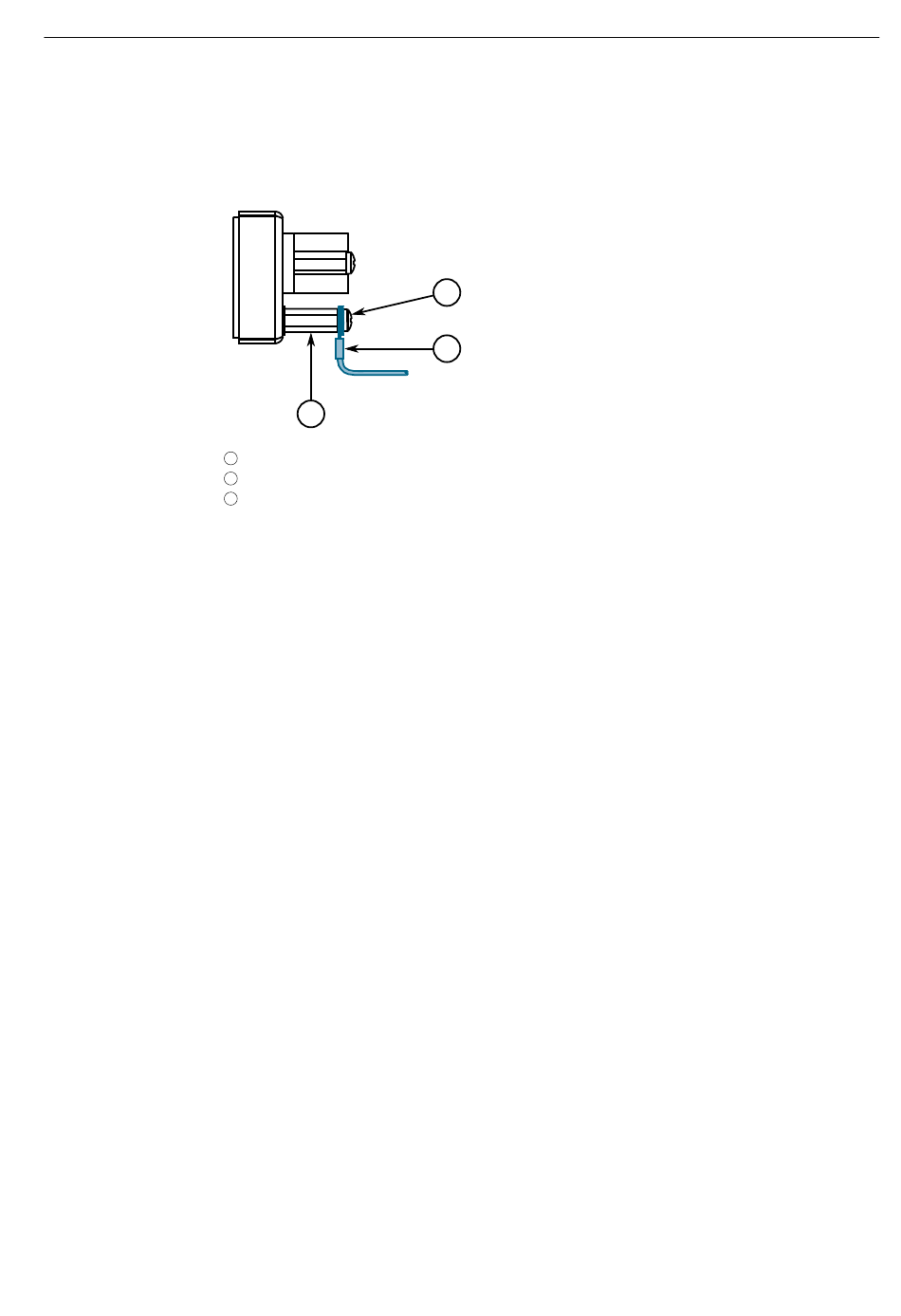

Figure 2.9
Chassis Ground Connection
2
3
RUGGEDCOM RS8000H
Installation Manual, 11/2022, C79000-G8976-1022-07
