2.6 Mounting the detector

Use the following steps to connect the detector to the tilt mount, referring to Figure 13:
•
Place the detector, with its cable/conduit entries pointing down, on the holding plate of the
tilt mount (item 2).
•
Secure the detector to the plate using the two hex screws and spring lock washers (items 3
and 4).
•
Loosen the locking screws (Items 5 and 6) in such a way that enables you to rotate the
detector.
For more information & technical support: (+1) 714-671-8500 · support@fg-detection.com

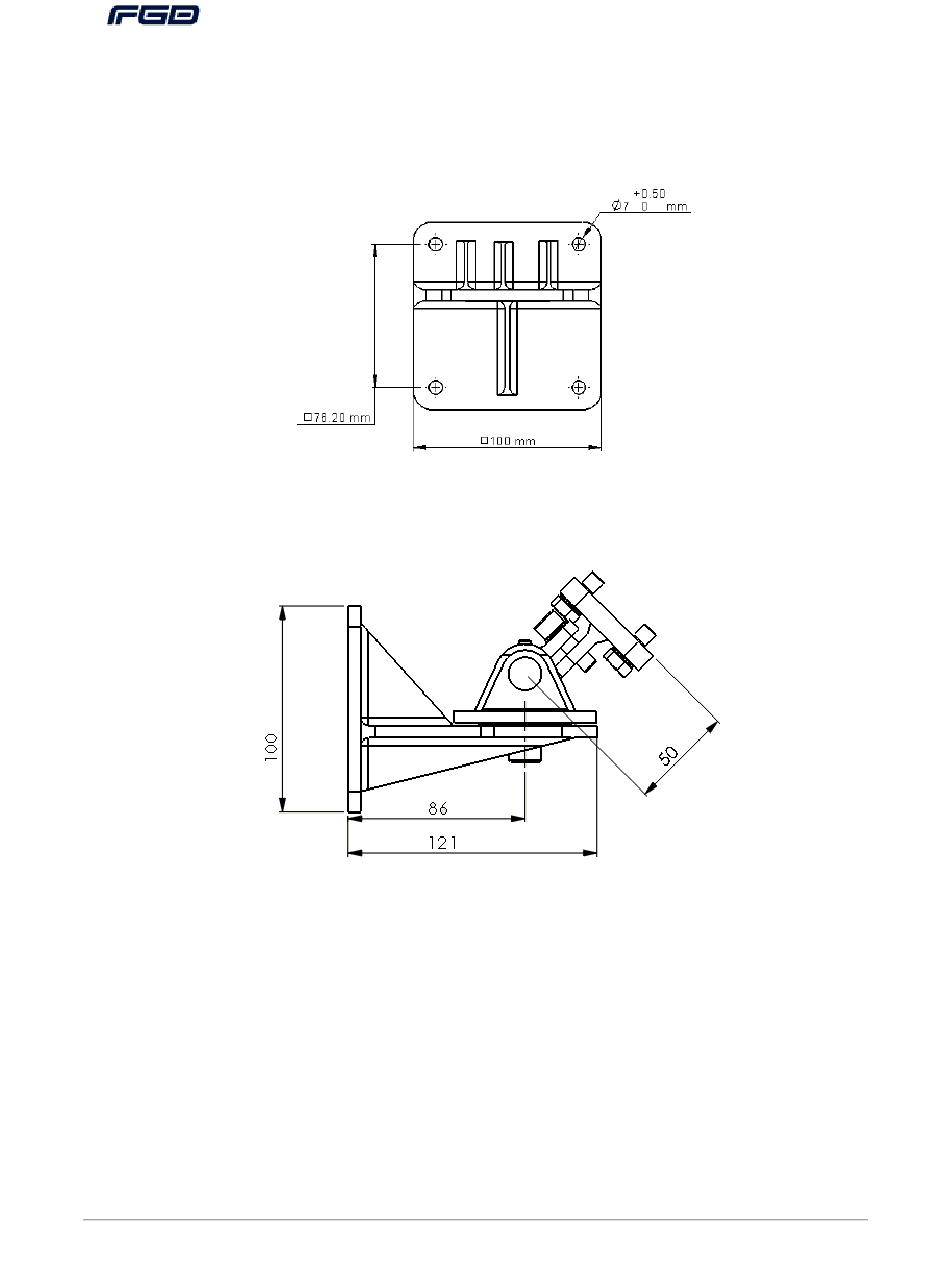

Figure 11: Tilt Mount Base - Plate View

Figure 12: Tilt mount base – Side View
