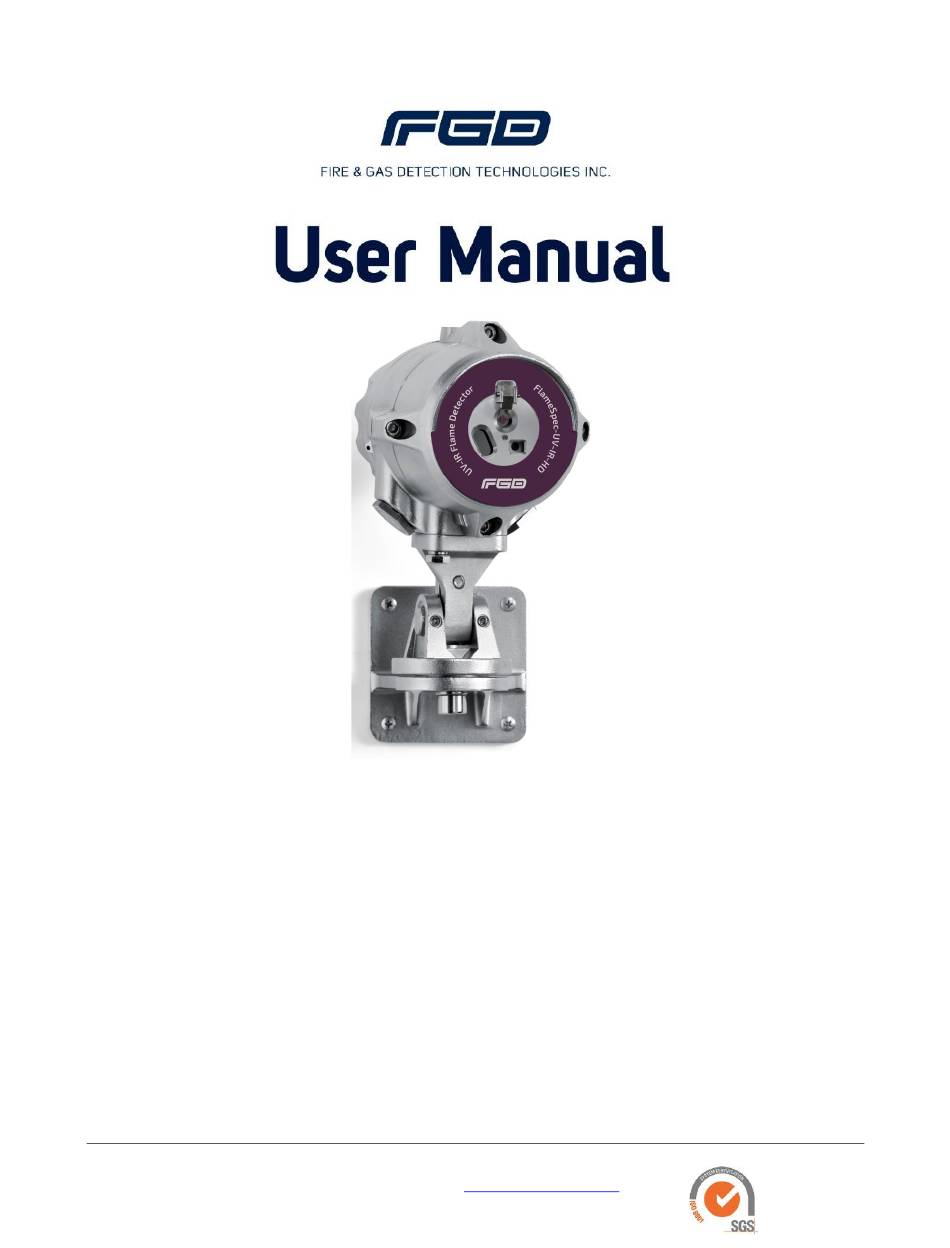

- Page 1 FlameSpec UV-IR-(F)-HD User Manual Doc. No. F130V0020.10 FlameSpec UV-IR-HD FlameSpec UV-IR-F-HD 2570 E. Cerritos Ave, Anaheim, CA 92806 USA T: (+1) 714-671-8500 support@fg-detection.com www.fg-detection.com ·...
- Page 2 Information FlameSpec-UV-IR-HD UV-IR HD Flame Detector User Guide, June 2024 Copyright © Fire & Gas Detection Technologies Inc. All rights reserved. The owner or authorized user of a valid copy of this manual may reproduce this publication for the purpose of learning to use the specified equipment. No part of this publication may be reproduced or transmitted for commercial purposes, such as selling copies of this publication or for providing paid for support services.
-
Page 3: Table Of Contents
FlameSpec UV-IR-(F)-HD User Manual Doc. No. F130V0020.10 Table of Contents Introduction .........................1 Key Features..........................1 Model Number Description ...................... 1 Internal tests ..........................2 Product Overview ........................2 Accessories ..........................3 Installation...........................8 General Considerations ......................8 Preparations for Installation ....................11 Required Tools ........................ - Page 4 Testing ........................... 27 Flame Simulator ........................27 Maintenance........................27 Cleaning Procedure ........................ 28 Troubleshooting .........................29 Servicing ..........................30 FGD Communicator Software ....................30 Specifications ........................31 Fire Detection ......................... 31 Video Functionality ........................ 31 Electrical Specifications ......................31 Outputs ..........................32 Mechanical Specifications ...................... 32 Environmental Specifications ....................
- Page 5 FlameSpec UV-IR-(F)-HD User Manual Doc. No. F130V0020.10 List of Figures Figure 1 - Front view of the FLS-UV-IR-HD (F) ....................3 Figure 2 - Rear view of the FLS-UV-IR-HD (F) ....................3 Figure 3 - Tilt mount ............................. 4 Figure 4 - Weather Cover ..........................4 Figure 5 - Pole Mount ...........................
-
Page 6: List Of Tables
FlameSpec UV-IR-(F)-HD User Manual Doc. No. F130V0020.10 List of Tables Table 1: Terminal connections ........................16 Table 2: Detector Configuration Options ....................22 Table 3 - Sensitivity levels ........................... 23 Table 4 Aux. relay - Normally Open ......................24 Table 5 Aux. relay - Normally Closed ......................25 Table 6 - Output Signals .......................... -
Page 7: Introduction
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 1 Introduction The FlameSpec-UV-IR-HD flame detector provides ultra-fast response, high performance and reliable detection of a large variety of fires including hydrocarbon fires (visible and non-visible), as well as hydrogen fires. The detector addresses slow growing fires as well as fast eruptions of fire using improved UV-IR technology. The detector operates in all weather and light conditions. -
Page 8: Internal Tests
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual Model No are defined as follows FLS-UV-IR-F - X S X X FLS-UV-IR - X S X X HART® Standard with RGB camera, no and not SIL certified. Standard with RGB camera. Like model 1 with Near IR camera. Like model 1 but with a fast response mode that is design for, but not limited to, automotive spray paint applications where compliance with 0.5s response (per NFPA 33) is needed. -
Page 9: Accessories
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 1 - F FLS-UV-IR-HD (F) IGURE RONT VIEW OF THE 2 - R FLS-UV-IR-HD (F) IGURE EAR VIEW OF THE 1.5 Accessories For more information & technical support: (+1) 714-671-8500 · support@fg-detection.com... -
Page 10: Mounting Bracket
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 1.5.1 Mounting Bracket The detector should be mounted using the stainless-steel tilt mount part number FLS-TMO-S02. This allows the detector to be securely attached to a wall, pole or other solid surface using appropriate fixings. See section 2.5 and 2.6 for further details. -
Page 11: Figure 5 - Pole Mount
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 1.5.3 Pole mount The pole mount enables the detectors to be installed with its tilt mount brackets. The pole mount kit we supply are suitable for 2-inch or 3-inch poles. Part number FLS-PMA-S23. 5 - P IGURE OUNT 1.5.4 Air shield... -
Page 12: Figure 7 - Flame Simulator Kit
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual Flame Simulator The FLS-UV-IR (F) may be tested using the FLS-FSIM-UV-IR-KIT. The FlameSpec flame simulator family provides a fast and convenient means of periodically testing the detector and control system end-to-end. Maintenance costs can be reduced as the detectors can be tested in situ without needing a hot work permit. -
Page 13: Figure 9 - Duct Mount Dmx-S02
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 1.5.5 Duct Mounts Duct Mount DMX-S02 The FLS-DMX-S02 allows a standard (non-HD) detector to be mounted remotely from a potential fire source by allowing the device to look through cut hole in the side of a duct. This duct mount must be use with air shield FLS-ASD-S02. -
Page 14: Installation
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 2 Installation This chapter does not attempt to cover all of the standard practices and codes of installation. Rather, it emphasizes specific points of consideration and provides some general rules for qualified personnel. You must always observe special safety precautions. -
Page 15: Figure 11 - Horizontal Field Of View, 90
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 11 - H , 90°. IGURE ORIZONTAL IELD OF 12 - V , 80°. IGURE ERTICAL IELD OF For more information & technical support: (+1) 714-671-8500 · support@fg-detection.com... - Page 16 F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual Environment Environmental conditions including but not limited to dust, snow or rain can reduce the detectors sensitivity and require additional consideration. Hot Work Arc welding should not be performed within 12 ft. (3.5m) of the detector. It is recommended that the system be inhibited during welding operations in situations where the possibility of a false alarm cannot be tolerated.
-
Page 17: Preparations For Installation
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 2.2 Preparations for Installation The installation must comply with national and local regulations and standards applicable to flame detectors (e.g., NFPA 72) and all local and common engineering practices. It is recommended to consult with the authority having jurisdiction. -
Page 18: Mounting The Tilt Mount
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual Harsh substances: For example, acidic liquids, gases, or solvents that may attack the windows, metals, seals or polymeric materials. Suitable precautions: For example, regular checks as part of routine inspections or establishing from the material’s data sheet that it is resistant to specific chemicals. Specific conditions for use The equipment is not intended to be repaired by the user. -
Page 19: Mounting The Detector
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual Figure 14 - Tilt mount base – Side View 2.6 Mounting the detector Use the following steps to connect the detector to the tilt mount, referring to Figure 15 : a) Place the detector, with its cable/conduit entries pointing down, on the holding plate of the tilt mount (item 2). - Page 20 F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual ITEM NO. ITEM NAME TILT MOUNT ASSEMBLY HOLDING PLATE MOUNTING HEX SCREWS M8 AND LOCK WASHERS HEX SOCKET LOCKING SCREW M8 HEX SOCKET LOCKING SCREW M12 For more information & technical support: (+1) 714-671-8500 · support@fg-detection.com...
-
Page 21: Electrical Wiring
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 2.7 Electrical Wiring Warning The sensor module in the front half of the detector contains no serviceable components and should never be opened. Opening will invalidate the warranty of the detector. The terminal compartment at the back is the only part of the housing that should be opened by the user. -
Page 22: Table 1: Terminal Connections
“24 VDC (-)” terminals (2 or 12)”. See 3.11 Manual BIT – Alarm Output Test for more details. RS 485 (+) RS-485 Modbus communication (used by the “FGD Communicator” software) RS 485 (-) Ethernet TX+... -
Page 23: Current Output (0-20Ma) Wiring
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 2.8 Current Output (0-20mA) Wiring The detector’s 0-20mA current output can act as both a source or a sink transmitter and can be 3-wire or 4- wire connected. The following drawing shows how to wire the detector to act as a current source isolated transmitter (4-wire connection): 17 –... -
Page 24: Wire Relay Connection
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual The following drawing shows how to wire the detector to act as a current source non-isolated transmitter (3- wire connection): 19 – S IGURE OURCE CHEME Note: Link between 3 and 11 to be wired on site. The following drawing shows how to wire the detector to act as a current sink non-isolated transmitter (3-wire connection): 20 –... -
Page 25: Figure 21 - 4 Wire Relay Connection
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 21 - 4 W IGURE ELAY ONNECTION For more information & technical support: (+1) 714-671-8500 · support@fg-detection.com... -
Page 26: Rs-485 Communication Network
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 2.10 RS-485 Communication Network Using the RS-485 network capability of the detector and communicator software, it is possible to connect up to 32 detectors in an addressable system with only 4 wires (2 for power and 2 for communication). Using repeaters, the number of detectors can be much larger (32 detectors for each repeater) up to 247 on the same 4 wires. -
Page 27: Cabling Recommendations
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 2.11 Cabling Recommendations The cable used should be appropriate for the hazardous area classification and meet local, national and company regulations. In order to comply with EMC regulations, the cable must be shielded, and the detector grounded. The use of industrial grade, suitably armored field cable is recommended). -
Page 28: Configuration Options
3 Configuration options Some functions of the detector can be configured using an RS-485 modem connected to a computer with the “FGD communicator” software. For details of how to download the software please contact technical support on: (+1) support@fg-detection.com... -
Page 29: Ultra-Fast Detection
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual The detector can be configured to one of four sensitivity levels: low, medium, high and extreme. The following table lists for each sensitivity setting the maximum distance, in which a standard fire would be reliably detected. -
Page 30: Table 4 Aux. Relay - Normally Open
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual The Aux relay can be set to operate in parallel to the alarm relay, at pre-alarm level, when high IR or high UV energy is present or on “dirty window warning’’. The contact relay can be set to Normally Open mode or Normally Closed mode for all settings. -
Page 31: Window Heater
NTSC or PAL format, depending on the “Video analog output” setting. 3.10 Modbus Address The detector can communicate with the FGD communicator software using a Modbus RTU compatible protocol on RS-485. This protocol allows for a network of detectors to be connected, each with a unique Modbus address. The address of the detector can be set to any value in the range 1–247. -
Page 32: Operation
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 4 Operation The FlameSpec-UV-IR-HD is a UV-IR flame detector that includes a built-in high-definition video camera module. The video module automatically records video of alarm events, and can provide live video of the detection zone to a screen in the control room. On power up, the LED on the front of the detector flashes Yellow indicating the startup routine has begun. -
Page 33: Testing
The BIT process runs automatically at startup and periodically during the operation of the detector. The BIT can also be initiated manually by connecting the “Manual BIT” terminal and the “24 VDC (-) “terminal for one second (see Table 1) or by using the FGD communicator software (connected through RS-485). -
Page 34: Cleaning Procedure
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 5.1 Cleaning Procedure To clean the detector: a) Disconnect the power to the unit and disable/inhibit any extinguishing equipment that is connected to the unit. b) Use water and detergent to clean the detector windows and underside of the reflector. Rinse with a soft cloth, cotton swab, or tissue. -
Page 35: Troubleshooting
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 6 Troubleshooting Use the table below to help troubleshoot any detector operational issues. Detector Status Possible Cause Corrective Action LEDs Off No power to the unit • Check that the power is connected to the detector. -
Page 36: Servicing
Refer to the detector warranty statement in section 12. 8 FGD Communicator Software The FGD Communicator software can be used to configure and monitor the FlameSpec-UV-IR-HD flame detector. The software communicates using Modbus over an RS-485 port to the detector. Modbus commands enable the user to configure parameters and monitor the status of the detector. -
Page 37: Specifications
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 9 Specifications 9.1 Fire Detection • Detection time and distance: o 5ms - for fast fire burst or explosion. o 1.5s - for 1ft (0.1m ) N-heptane pan fire at 50 ft (15m). o 3s - for 1ft (0.1m ) N-heptane pan fire at 100 ft (30m). -
Page 38: Outputs
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 9.4 Outputs • Relays: Volt-free contacts rated 2A at 30 VDC. o Alarm: Normally open. o Auxiliary: state selectable. o Fault : Closed when detector is operating without fault. • 0-20mA current output: o 3 wire or 4 wire (isolated) configurations, both sink or source. o Max load: 500Ω... - Page 39 F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 9.7.1 Ex db 9.7.2 Ex db eb For more information & technical support: (+1) 714-671-8500 · support@fg-detection.com...
-
Page 40: Warning Label
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 9.7.3 Warning Label For more information & technical support: (+1) 714-671-8500 · support@fg-detection.com... -
Page 41: Approvals
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 9.8 Approvals Note: All items are designed and tested to meet the relevant requirements. • Explosion proof: o ATEX: II 2 G D Ex db IIC T5 Gb or Ex db eb IIC T6 Gb and Ex tb IIIC T80°C Db -55°C≤Ta≤60°C Ex db IIC T5 Gb or Ex db eb IIC T5 Gb and Ex tb IIIC T95°C Db -55°C≤Ta≤75°C Ex db IIC T4 Gb or Ex db eb IIC T4 Gb and Ex tb IIIC T105°C Db -55°C≤Ta≤85°C o UKCA:... -
Page 42: Performance
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 10 Performance The following tables show test results of detection distances and times for different fire scenarios. Each table lists results for a different sensitivity setting. For liquid fires the size of fire refers to the size of the pan, filled with the fuel. -
Page 43: False Alarm Immunity
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 10.3 False Alarm Immunity The following table shows test results of false alarm immunity for detectors configured to “Extreme” sensitivity. For each radiation source a distance is listed. This is the minimum tested distance, from which the detectors did not alarm when exposed to the radiation source (either modulated or non-modulated). -
Page 44: Fls-Uv-Ir-F-Hd-Asx5
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual High Sensitivity Fuel Size Distance Feet (m) Average Response Time (Seconds) N-Heptane 1 x 1 ft 75 (23) Jet Fuel 1 x 1 ft 56 (17) Methanol 1 x 1 ft 43 (13) 32-in Plume 56 (17) Medium Sensitivity Fuel... -
Page 45: False Alarm Immunity
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 11.3 False Alarm Immunity The following table shows test results of false alarm immunity for detectors configured to “Extreme” sensitivity. For each radiation source a distance is listed. This is the minimum tested distance, from which the detectors did not alarm when exposed to the radiation source (either modulated or non-modulated). -
Page 46: Ordering Information
Duct Mount Assembly, without window HD model. Use with FLS-ASD-SO2 (Sold separately). Communications USB/RS485 RS485 to USB Converter (for connection of detector RS485 output to PC/Laptop for use with FGD Communicator Software) For more information & technical support: (+1) 714-671-8500 · support@fg-detection.com... -
Page 47: Warranty
F130V0020.10 FlameSpec UV-IR-(F)-HD User Manual 13 Warranty FIRE & GAS DETECTION TECHNOLOGIES INC. agrees to extend to Purchaser/Distributor a warranty on the FIRE & GAS DETECTION TECHNOLOGIES INC. supplied components of the FlameSpec products. FIRE & GAS DETECTION TECHNOLOGIES INC. warrants to Purchaser/Distributor that the products are free from defects in materials and workmanship for a period of five (5) years, commencing with the date of delivery to Purchaser/Distributor.
