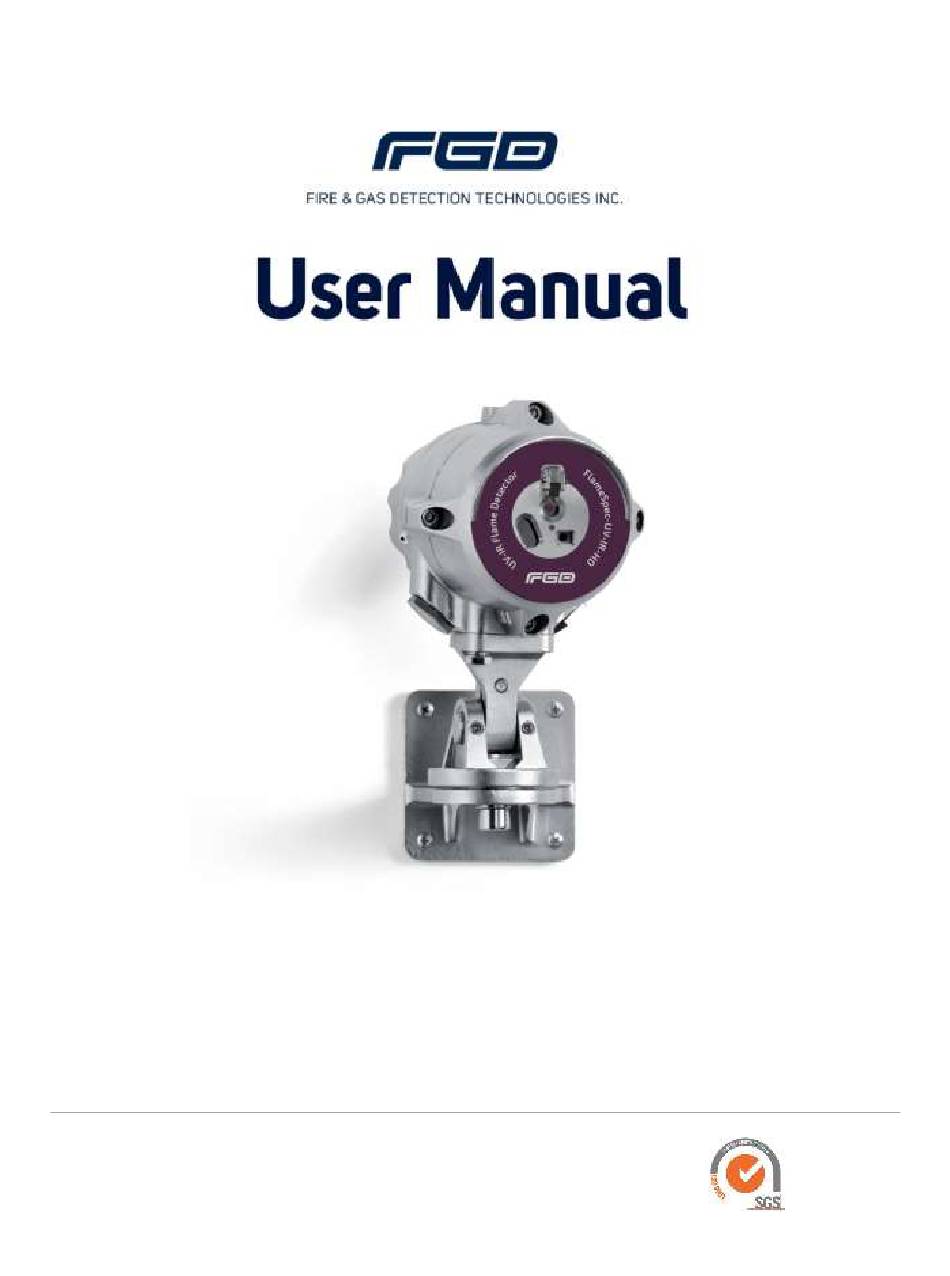

- Page 1 FlameSpec UV-IR-HD User Manual Doc. No. F130V0020.06 FlameSpec UV-IR-HD FlameSpec UV-IR-F-HD 4222 E. La Palma Ave, Anaheim, CA 92807 USA T: (+1) 714-671-8500 www.fg-detection.com · support@fg-detection.com...
- Page 2 Information FlameSpec-UV-IR-HD UV-IR HD Flame Detector User Guide, August 2021 Copyright © Fire & Gas Detection Technologies Inc. All rights reserved. The owner or authorized user of a valid copy of this manual may reproduce this publication for the purpose of learning to use the specified equipment. No part of this publication may be reproduced or transmitted for commercial purposes, such as selling copies of this publication or for providing paid for support services.
-
Page 3: Table Of Contents
FlameSpec UV-IR-HD User Manual Doc. No. F130V0020.06 Table of Contents 1. Introduction ........................1 Key Features ........................1 Model Number Description ....................2 Internal tests ........................2 Product Overview ........................3 Accessories ..........................4 2. Installation ........................7 General Considerations ......................7 Preparations for Installation ....................10 Required Tools ........................ - Page 4 Flame Simulator ......................... 26 5. Maintenance ........................ 26 Cleaning Procedure ......................26 6. Troubleshooting ......................27 7. Servicing ........................29 8. FGD Communicator Software ..................29 9. Specifications ........................ 30 Fire Detection ........................30 Video Functionality ......................30 Electrical Specifications ...................... 30 Outputs ..........................
- Page 5 FlameSpec UV-IR-HD User Manual Doc. No. F130V0020.06 Ordering Information ....................40 Warranty ........................42 Appendix A .......................... 42 List of Figures Figure 1 - Front view of the FLS-UV-IR-HD (F) ......................3 Figure 2 - Rear view of the FLS-UV-IR-HD (F) ......................3 Figure 3 - Tilt mount ................................
- Page 6 FlameSpec UV-IR-HD User Manual Doc. No. F130V0020.06 Table 2: Detector Configuration Options........................21 Table 3: Sensitivity levels .............................. 22 Table 4: Output Signals ..............................25 For more information & technical support: (+1) 714-671-8500 · support@fg-detection.com...
-
Page 7: Introduction
FlameSpec UV-IR-HD User Manual F130V0020.06 1. Introduction The FlameSpec-UV-IR-HD flame detector provides ultra-fast response, high performance and reliable detection of a large variety of fires including hydrocarbon fires (visible and non-visible), as well as hydrogen fires. The detector addresses slow growing fires as well as fast eruptions of fire using improved UV-IR technology. -
Page 8: Model Number Description
FlameSpec UV-IR-HD User Manual F130V0020.06 • UV and IR warning levels - 0-20mA - current output warning when elevated UV or IR radiation is detected. Model Number Description Model No are defined as follows FLS-UV-IR-F - A S X X... -
Page 9: Product Overview
FlameSpec UV-IR-HD User Manual F130V0020.06 Product Overview 1 - F FLS-UV-IR-HD (F) IGURE RONT VIEW OF THE 2 - R FLS-UV-IR-HD (F) IGURE EAR VIEW OF THE For more information & technical support: (+1) 714-671-8500 · support@fg-detection.com... -
Page 10: Accessories
FlameSpec UV-IR-HD User Manual F130V0020.06 Accessories 1.5.1 Mounting Bracket The detector should be mounted using the stainless-steel tilt mount part number FLS-TMO- S02. This allows the detector to be securely attached to a wall, pole or other solid surface using appropriate fixings. See section2.5 and 2.6 for further details. -
Page 11: Figure 5 - Pole Mount
FlameSpec UV-IR-HD User Manual F130V0020.06 1.5.3 Pole mount The pole mount enables the detectors to be installed with its tilt mount brackets. The pole mount kit we supply are suitable for 2-inch or 3- inch poles. Part number FLS-PMA-S23. 5 - P... -
Page 12: Figure 7 - Flame Simulator Kit
FlameSpec UV-IR-HD User Manual F130V0020.06 1.5.5 Flame Simulator The FLS-UV-IR (F) may be tested using the FLS- FSIM-UV-IR-KIT. The FlameSpec flame simulator family provides a fast and convenient means of periodically testing the detector and control system end-to-end. Maintenance costs can be reduced as the detectors can be tested in situ without needing a hot work permit. -
Page 13: Installation
FlameSpec UV-IR-HD User Manual F130V0020.06 2. Installation This chapter does not attempt to cover all of the standard practices and codes of installation. Rather, it emphasizes specific points of consideration and provides some general rules for qualified personnel. You must always observe special safety precautions. -
Page 14: Figure 9 - Horizontal Field Of View
FlameSpec UV-IR-HD User Manual F130V0020.06 9 - H IGURE ORIZONTAL IELD OF 10 - V IGURE ERTICAL IELD OF For more information & technical support: (+1) 714-671-8500 · support@fg-detection.com... - Page 15 FlameSpec UV-IR-HD User Manual F130V0020.06 Environment • Environmental conditions including but not limited to dust, snow or rain can reduce the detectors sensitivity and require additional consideration. Hot Work • Arc welding should not be performed within 12 ft. (3.5m) of the detector. It is recommended that the system be inhibited during welding operations in situations where the possibility of a false alarm cannot be tolerated.
-
Page 16: Preparations For Installation
FlameSpec UV-IR-HD User Manual F130V0020.06 Preparations for Installation The installation must comply with national and local regulations and standards applicable to flame detectors (e.g., NFPA 72) and all local and common engineering practices. It is recommended to consult with the authority having jurisdiction. - Page 17 FlameSpec UV-IR-HD User Manual F130V0020.06 • Inspection and maintenance of this equipment shall be carried out by suitably trained personnel in accordance with the applicable code of practice. • If the equipment is likely to come into contact with corrosive and/or other harsh...
-
Page 18: Mounting The Tilt Mount
FlameSpec UV-IR-HD User Manual F130V0020.06 Mounting the Tilt Mount The tilt mount enables the detector to be rotated up to 45 degrees (horizontal/vertical) in all directions. The following installation instructions show how to use it to support the detector from below (the preferred method). -
Page 19: Mounting The Detector
FlameSpec UV-IR-HD User Manual F130V0020.06 Mounting the detector Use the following steps to connect the detector to the tilt mount, referring to Figure 13 : a) Place the detector, with its cable/conduit entries pointing down, on the holding plate of the tilt mount (item 2). -
Page 20: Electrical Wiring
FlameSpec UV-IR-HD User Manual F130V0020.06 Electrical Wiring Warning • The sensor module in the front half of the detector contains no serviceable components and should never be opened. Opening will invalidate the warranty of the detector. The terminal compartment at the back is the only part of the housing that should be opened by the user. -
Page 21: Table 1: Terminal Connections
“24 VDC (-)” terminals (2 or 12)”. See 3.11 Manual BIT – Alarm Output Test for more details. RS 485 (+) RS-485 Modbus communication (used by the “FGD Communicator” software) RS 485 (-) -
Page 22: Current Output (0-20Ma) Wiring
FlameSpec UV-IR-HD User Manual F130V0020.06 Current Output (0-20mA) Wiring The detector’s 0-20mA current output can act as both a source or a sink transmitter and can be 3-wire or 4-wire connected. The following drawing shows how to wire the detector to act as a current source isolated... -
Page 23: Figure 17 - Source 3-Wire Scheme
FlameSpec UV-IR-HD User Manual F130V0020.06 The following drawing shows how to wire the detector to act as a current source non-isolated transmitter (3-wire connection): 24VDC Return Controller Detector 17 – S IGURE OURCE CHEME Note: Link between 3 and 11 to be wired on site... -
Page 24: Wire Relay Connection
FlameSpec UV-IR-HD User Manual F130V0020.06 4 Wire Relay Connection This wiring option uses the fault and alarm relay and are connected to fire alarm panels. This connection allows to connect several detectors on 4 wires in a single loop. On the last detector there is a connected EOL resistor in the connection box. -
Page 25: Cabling Recommendations
FlameSpec UV-IR-HD User Manual F130V0020.06 each repeater) up to 247 on the same 4 wires. Using the RS-485 network, it is possible to read each detector’s status (fault, alarm) and to initiate a BIT to each detector individually. The detector communicates via RS-485 with a Modbus RTU compatible protocol. For more... -
Page 26: Earth/Ground Regime
Some functions of the detector can be configured using an RS-485 modem connected to a computer with the “FGD communicator” software. For details of how to download the software please contact technical support on: (+1) 714-671-8500 or via email at support@fg-detection.com These configuration options are listed in the following table along with their factory default values. - Page 27 FlameSpec UV-IR-HD User Manual F130V0020.06 2: D ABLE ETECTOR ONFIGURATION PTIONS Function Options Default Setting Sensitivity Low, Medium, High, Extreme Medium Ultra-fast detection Disabled, Enabled Disabled Alarm Delay 0, 5, 10, 20 or 30 seconds 0 seconds (no delay) Alarm Latch...
-
Page 28: Sensitivity
FlameSpec UV-IR-HD User Manual F130V0020.06 Sensitivity The detector can be configured to one of four sensitivity levels: low, medium, high and extreme. The following table lists for each sensitivity setting the maximum distance, in which a standard fire would be reliably detected. -
Page 29: Enable Dirty Window Warning 0-20Ma
NTSC or PAL format, depending on the “Video analog output” setting Modbus Address The detector can communicate with the FGD communicator software using a Modbus RTU compatible protocol on RS-485. This protocol allows for a network of detectors to be connected, each with a unique Modbus address. -
Page 30: Operation
FlameSpec UV-IR-HD User Manual F130V0020.06 4. Operation The FlameSpec-UV-IR-HD is a UV-IR flame detector that includes a built-in high-definition video camera module. The video module automatically records video of alarm events, and can provide live video of the detection zone to a screen in the control room. -
Page 31: Output Signals
FlameSpec UV-IR-HD User Manual F130V0020.06 Output Signals The detector has the following output signals: ▪ Current output (0–20mA) with HART ® 7 ▪ Relays (Fault, Auxiliary and Alarm) ▪ Modbus RS-485 ▪ Tri-color status LED 4: O ABLE UTPUT IGNALS... -
Page 32: Testing
The BIT process runs automatically at startup and periodically during the operation of the detector. The BIT can also be initiated manually by connecting the “Manual BIT” terminal and the “24 VDC (-) “terminal for one second (see Table 1) or by using the FGD communicator software (connected through RS-485). -
Page 33: Troubleshooting
FlameSpec UV-IR-HD User Manual F130V0020.06 a) Disconnect the power to the unit and disable/inhibit any extinguishing equipment that is connected to the unit. b) Use water and detergent to clean the detector windows and underside of the reflector. Rinse with a soft cloth, cotton swab, or tissue. - Page 34 FlameSpec UV-IR-HD User Manual F130V0020.06 Green LED constantly on Wiring or software Check wiring and polarity. • Fault Relay closed. problem Check ONVIF Client software. • No digital Video (through ethernet) For more information & technical support: (+1) 714-671-8500 · support@fg-detection.com...
-
Page 35: Servicing
Refer to the detector warranty statement in section 12. 8. FGD Communicator Software The FGD Communicator software can be used to configure and monitor the FlameSpec-UV-IR-HD flame detector. The software communicates using Modbus over an RS-485 port to the detector. Modbus commands enable the user to configure parameters and monitor the status of the detector. -
Page 36: Specifications
FlameSpec UV-IR-HD User Manual F130V0020.06 9. Specifications Fire Detection • Detection time and distance: o 40ms - for fast fire burst or explosion o 1.5s - for 1ft (0.1m ) N-heptane pan fire at 100 ft (30m) o 4s - for 1ft (0.1m... -
Page 37: Outputs
FlameSpec UV-IR-HD User Manual F130V0020.06 Outputs • Relays: Volt-free contacts rated 2A at 30 VDC o Alarm: Normally open o Auxiliary: Normally open o Fault : Closed when energized • 0-20mA (stepped) current output: 3 wire and 4 wire configurations (sink and source). HART® 7. -
Page 38: Environmental Specifications
FlameSpec UV-IR-HD User Manual F130V0020.06 Environmental Specifications • Temperature Range: o Operating and storage -67°F to + 185°F (-55°C to +85°C) • Humidity: up to 99%, non-condensing • Ingress Protection: IP66 & IP68 (2m, 24hr); NEMA 4X & 6P Product Labeling 9.7.1 Ex db... - Page 39 FlameSpec UV-IR-HD User Manual F130V0020.06 9.7.2 Ex db eb For more information & technical support: (+1) 714-671-8500 · support@fg-detection.com...
- Page 40 FlameSpec UV-IR-HD User Manual F130V0020.06 9.7.3 Warning Label For more information & technical support: (+1) 714-671-8500 · support@fg-detection.com...
-
Page 41: Approvals
FlameSpec UV-IR-HD User Manual F130V0020.06 Approvals Note: All items are designed and tested to meet the relevant requirements. • Explosion proof: o ATEX: II 2 G D Ex db IIC T5 Gb or Ex db eb IIC T5 Gb and Ex tb IIIC T95°C Db -55°C<Ta<75°C Ex db IIC T4 Gb or Ex db eb IIC T4 Gb and Ex tb IIIC T105°C Db -55°C<Ta<85°C... -
Page 42: Performance
FlameSpec UV-IR-HD User Manual F130V0020.06 10. Performance The following tables show test results of detection distances and times for different fire scenarios. Each table lists results for a different sensitivity setting. For liquid fires the size of fire refers to the size of the pan, filled with the fuel. - Page 43 FlameSpec UV-IR-HD User Manual F130V0020.06 Medium Sensitivity Fuel Size Distance ft (m) Average Response Time (Seconds) N-Heptane 1 x 1 ft 98 (30) Gasoline 1 x 1 ft 98 (30) 32” plume Methane 82 (25) 32” plume 98 (30) Diesel...
-
Page 44: False Alarm Immunity
FlameSpec UV-IR-HD User Manual F130V0020.06 False Alarm Immunity The following table shows test results of false alarm immunity for detectors configured to “Extreme” sensitivity. For each radiation source a distance is listed. This is the minimum tested distance, from which the detectors did not alarm when exposed to the radiation source (either modulated or non-modulated). - Page 45 FlameSpec UV-IR-HD User Manual F130V0020.06 Methane 32-in Plume 59 (18) 32-in Plume 75 (23) Diesel 1 x 1 ft 75 (23) 1 x 1 ft 75 (23) Kerosene 1 x 1 ft 75 (23) Methanol 1 x 1 ft 59 (18)
-
Page 46: False Alarm Immunity
Soldering iron 2 (0.5) Electric Drill 2 (0.5) 12. Ordering Information Part Number Description Flame Detector FLS-UV-IR-HD-AS11 FlameSpec UV-IR-HD, ATEX, FMus, FMc and IECEx certified, 316SS, M25 entries with RGB camera For more information & technical support: (+1) 714-671-8500 · support@fg-detection.com... - Page 47 FlameSpec UV-IR-HD User Manual F130V0020.06 FLS-UV-IR-HD-AS21 FlameSpec UV-IR-HD, ATEX, FMus, FMc and IECEx certified, 316SS, 3/4”NPT entries with RGB camera FLS-UV-IR-HD-AS12 As FLS-UV-IR-HD-AS11 with Near IR camera instead of RGB camera FLS-UV-IR-HD-AS22 As FLS-UV-IR-HD-AS21 with Near IR camera instead of RGB camera...
-
Page 48: Warranty
FlameSpec UV-IR-HD User Manual F130V0020.06 13. Warranty FIRE & GAS DETECTION TECHNOLOGIES INC. agrees to extend to Purchaser/Distributor a warranty on the FIRE & GAS DETECTION TECHNOLOGIES INC. supplied components of the FlameSpec products. FIRE & GAS DETECTION TECHNOLOGIES INC. warrants to Purchaser/Distributor that the products are free from defects in materials and workmanship for a period of five (5) years, commencing with the date of delivery to Purchaser/Distributor. - Page 49 FlameSpec UV-IR-HD User Manual F130V0020.06 Contact us Fire & Gas Detection Technologies, Inc 4222 E. La Palma Ave, Anaheim, CA 92807, USA Tel: (+1) 714 671 8500 Email: support@fg-detection.com For more information & technical support: (+1) 714-671-8500 · support@fg-detection.com...
