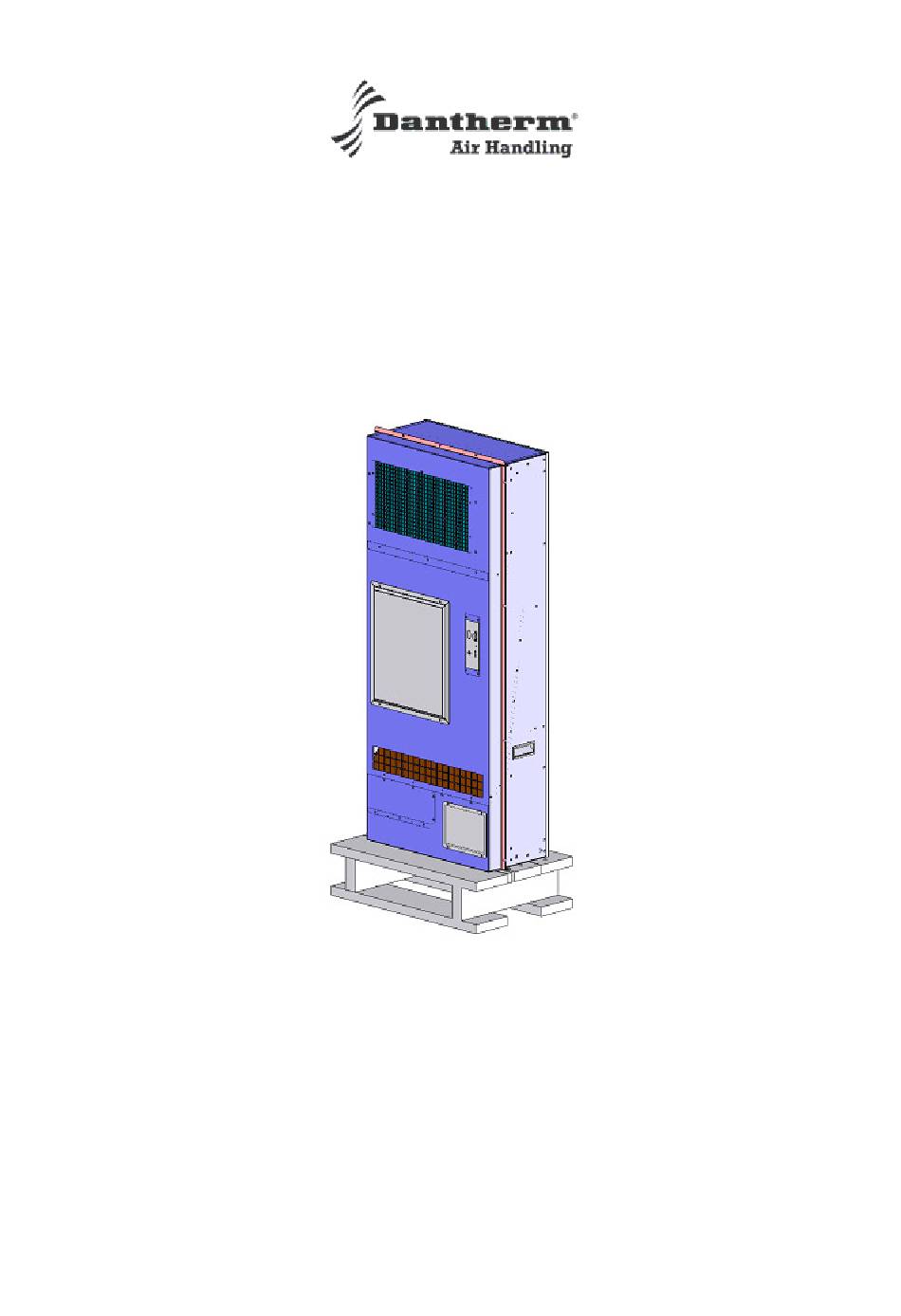

  • Page 1 SSC-01 Service Manual Edition A Dantherm Air Handling (Suzhou) Co., Ltd No.855 Zhu Jiang Rd, SND Shi Shan Industrial Belt, Suzhou, Jiangsu, China...
  • Page 2 Introduction 简 介 简 介 简 介 简 介 Revision information: 版 本 信 息 版 本 信 息 版 本 信 息 版 本 信 息 The service manual is first issued Version A issue date: 2007-8 2 007-8 版...

  • Page 3: Introduction

    The manual includes descriptions of functionality, replacement of parts as well as how to carry out preventive maintenance. Usage of the The SSC-01 is especially designed for cooling of electronic equipment and for product. indoor installation. The unit requires access to ambient air through slots on the backside of the unit.
  • Page 4 Introduction 简 介 简 介 简 介 简 介 Michael Norgreen General Manager, Dantherm Air handling (Suzhou) Co., Ltd. Page 4 of 26...

  • Page 5: Table Of Contents

    Introduction 简 介 简 介 简 介 简 介 Table of contents 内容 1. INTRODUCTION ........................ 3 2. INSTALLATION AND START-UP ................ 6 ........................…...6 ACKAGE ..........................6 OUNTING ..........................7 TART ........................7 EMOUNTING 3. IDENTIFICATION OF THE UNIT ..................

  • Page 6: Installation And Start-Up

    If that is the case, the film should carefully be cut open with a cutting tool. Contents in The SSC-01 is delivered with an installation kit with the following content: the package Unit Quantity Item description Pcs.

  • Page 7: Start-Up

    3. Identification of the Unit 机器的识别 All units have a silver type plate label, where all the important information about the specific unit can be found. Also the Dantherm address and phone numbers are printed here so the contact can be made on the site.

  • Page 8: Description Of Functionality

    Description of functionality 功 能 描 述 功 能 描 述 功 能 描 述 功 能 描 述 4. Description of functionality 功能描述 General The DC unit is a microprocessor controlled Heat Management System especially description designed for heat management of electronic enclosures. The unit contains heater, fans as well as an active cooling section.

  • Page 9: Set Points

    Description of functionality 功 能 描 述 功 能 描 述 功 能 描 述 功 能 描 述 • • Return air Exhaust air Supply air Ambient air Set points 设 置 点 设 置 点 设 置 点 设...

  • Page 10: Failure Signal

    Description of functionality 功 能 描 述 功 能 描 述 功 能 描 述 功 能 描 述 Failure signal 故 障 信 号 故 障 信 号 故 障 信 号 故 障 信 号 The following alarms will result in failure output: “Air conditioner malfunction.” Alarm items are attached in appendix1.
  • Page 11 Description of functionality 功 能 描 述 功 能 描 述 功 能 描 述 功 能 描 述 Control board operation Designation Temp Down Temp Designation [°C] [°C] 指 示 指 示 指 示 指 示 温 度 温 度 温 度 温 度 向...

  • Page 12: Compressor Operation

    Description of functionality 功 能 描 述 功 能 描 述 功 能 描 述 功 能 描 述 Compressor operation 压 缩 机 运 转 压 缩 机 运 转 压 缩 机 运 转 压 缩 机 运 转 Runtime A 1min forced runtime of the compressor is executed.

  • Page 13: Functionality Testing

    Functionality testing 功 能 测 试 功 能 测 试 功 能 测 试 功 能 测 试 5. Functionality testing 功能测试 The control board includes a test function, which can be activated by pressing the test button on the controller for three seconds. Steps Component How to do!

  • Page 14: Technical Data

    Technical data 技 术 数 据 技 术 数 据 技 术 数 据 技 术 数 据 6. Technical data 技术数据 Performance: Ambient/return = 35 C / 35 ° ° ° ° ° ° ° ° 35 °C / 35 °C Specification Unit Designation...

  • Page 15: Cabinet Data

    Technical data 技 术 数 据 技 术 数 据 技 术 数 据 技 术 数 据 Cabinet data 机 柜 数 据 机 柜 数 据 机 柜 数 据 机 柜 数 据 Specification Unit Designation Value 规...

  • Page 16: Preventive Maintenance

    Preventive maintenance 定 期 维 护 定 期 维 护 定 期 维 护 定 期 维 护 7. Preventive maintenance 定期维护 This heat management system contains moving mechanical parts, and is often placed in rough environments with high temperatures, humidity and dirt. To keep the air conditioner in a shape where it will Perform according to the specifica- tions, preventive maintenance has to be carried out.

  • Page 17: Recommended Maintenance Approach

    Preventive maintenance 定 期 维 护 定 期 维 护 定 期 维 护 定 期 维 护 gram. Recommended maintenance approach 推 荐 维 护 方 法 推 荐 维 护 方 法 推 荐 维 护 方 法 推...

  • Page 18: Replacement Of Spare Parts

    8. Replacement of spare parts 更换部分零件 When to No components in the SSC-01 are to be replaced regularly. This section is there- replace fore only describing how to replace the spare parts if they are not running smoothly – so only replace if the component is faulty!

  • Page 19: Replacing The Internal Fan

    Before the demounting the old spare part it is very important to order the new spare part from Dantherm. To do this most effectively the product version and serial number should be checked so this information can be passed on when or- dering.

  • Page 20: Replacing The External Fan

    Replacement of spare parts 更 换 部 分 零 件 更 换 部 分 零 件 更 换 部 分 零 件 更 换 部 分 零 件 Illustration 图 例 cover internal fan holder Step1 Step2 Replacing the external fan(see below pictures) 更...

  • Page 21: Replacing The Control Board

    Replacement of spare parts 更 换 部 分 零 件 更 换 部 分 零 件 更 换 部 分 零 件 更 换 部 分 零 件 cover screws for fixing external fan holder Step1 Step2 Replacing the control board (see below pictures) 更...
  • Page 22 Replacement of spare parts 更 换 部 分 零 件 更 换 部 分 零 件 更 换 部 分 零 件 更 换 部 分 零 件 Step Action 步 骤 步 骤 步 骤 步 骤 行 动 行 动 行 动 行 动 Make sure that the power to the unit is safely switched off.

  • Page 23: Replacing The Heater

    Replacement of spare parts 更 换 部 分 零 件 更 换 部 分 零 件 更 换 部 分 零 件 更 换 部 分 零 件 Replacing the heater(see below pictures) 更 换 加 热 器 更 换 加 热 器 更...

  • Page 24: Scrapping

    Scrapping 报 废 报 废 报 废 报 废 9. Scrapping 报废 Introduction The air conditioner is designed to last for a number of years. When the time comes that the unit needs to be scrapped the following precautions should be taken to protect our environment.

  • Page 25: Pcb

    Scrapping 报 废 报 废 报 废 报 废 tubes be left at local recycling authorities. In most places there are local rules for scrapping PCB’s as well as for connecting wires, and these rules are to be followed. Generally it is important to separate the metal parts from the wires and PCB’s before scrapping.
  • Page 26 Scrapping 报 废 报 废 报 废 报 废 Appendix 1 附录 附录 1 附录 附录 LED Indication List Seq. LED1 LED2 LED3 LED4 Failure Name Comment Alarm (GREEN) (RED) (YELLOW) (YELLOW) Controller Power Off Controller Power On Compressor Running Delay Air Conditioner Run Normally Heater Run Normally Compressor Failure Alarm (Motor...
