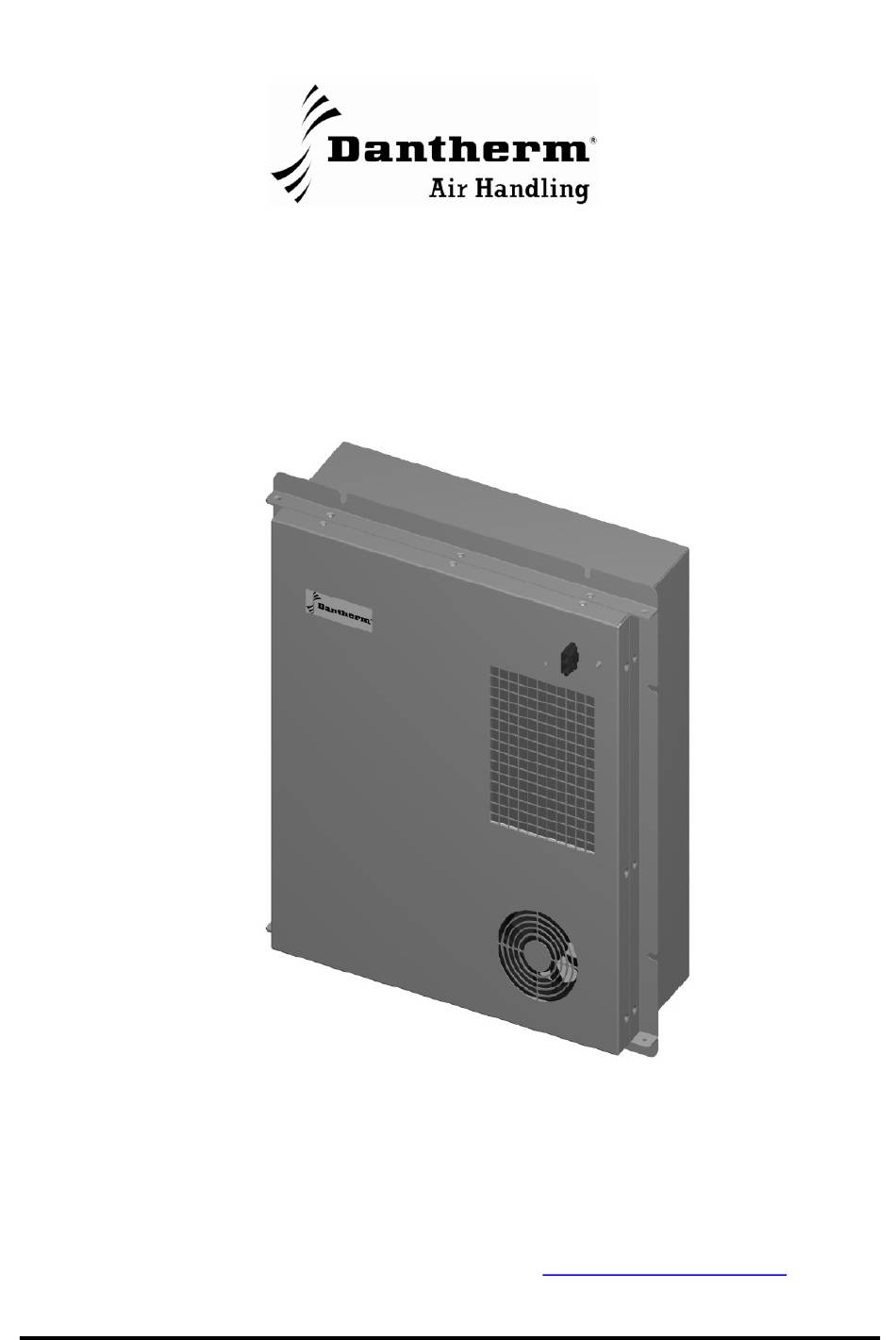

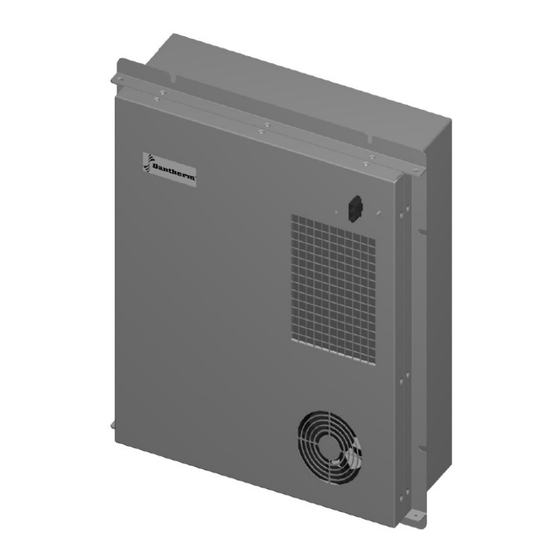

- Page 1 Service Manual DAC20-450D 服务手册 DAC20-450D 服务手册 服务手册 服务手册 Dantherm Air Handling (Suzhou) Co., Ltd Address: No.855 Zhu Jiang Rd, SND Shi Shan Industrial Belt, Suzhou, Jiangsu, China Phone: +86 512 66678500 Fax: +86 512 66678501 Homepage: www.dantherm-air-handling.com.cn...
- Page 2 Revision History Revision Description Date/Author First design Reed Wu (2010-06-01) Reed Wu (2010-10-08 Release Tom.Sun 2010-12-22...
-
Page 3: Table Of Contents
Table of contents 1 INTRODUCTION .............................. 2 ................................2 URPOSE 2 INSTALLATION AND START-UP ..................... 4 ................................4 ACKAGE ......................... 4 ONTENTS IN THE PACKAGE .................................. 4 OOLS ................................5 OUNTING ................................6 TART ............................... 6 EMOUNTING 3 IDENTIFICATION OF THE UNIT ..................... -
Page 4: Introduction
简介 Purpose This Service Manual is addressed to the technical crew, who installs and maintains Repairs the DAC20- 450D air conditioner through all steps in its lifetime. This service manual Dantherm part number is 215403. DAC20-450D 215403. The manual includes descriptions of functionality, replacement of parts as well as how to carry out preventive maintenance. - Page 5 Declaration of conformity Dantherm Group declares, that the DAC20-450D is in accordance with the following directives and standards: DAC20-450D Standard Name / Area GB50174-93 YDN 023 GB/T 7725-1996 ETS 300 019-1-2 Equipment engineering; environmental conditions and environment tests for telecommunications equipment: part 1-2: classification of environmental...
-
Page 6: Installation And Start-Up
PE bag and packed in carton protected with foam. Then per Thirty units are carried in a wooden package. Contents in the package The DAC20-450D air conditioner is delivered with an installation kit with the following content: DAC20-450D Item description... -
Page 7: Mounting
Mounting Mounting procedure The mounting procedure of the air conditioner unit should follow below steps: Demount the package. Mount the water tube with clip lock at the bottom of the body and stick the sponge strip on inside flanges. Lift the unit up and place it in the wall of cabinet, mount the brackets and flanges with M6 bolts & nuts (fixing unit by installation hole). -
Page 8: Start-Up
机器的识别 All units have a silver type plate label, where all the important information about the specific unit can be found. Also the Dantherm address and phone numbers are printed here so the contact can be made on the site. -
Page 9: Description Of Functionality
4 Description of functionality 功能描述 功能描述 功能描述 功能描述 General Description The air conditioner contains a compressor, evaporator, condenser, condenser fans, and various cooling components as expansion valves, dry filter and an internal fan. The internal cabinet air is continuously circu- lated in a closed loop by the evaporator fan. -
Page 10: Temperature
Temperature The following terms for temperatures are used in the following description (see below figure): Supply Air temperature is the temperature of the air leaving the unit to cool down the electronic equip- ment. Return air temperature is the temperature of the air entering the air conditioner from the electronic equipment. -
Page 11: Set Points
Set points The set points can be adjusted through controller software. The table below shows all the set point related information. Standard settings Range Unit Description Function Set point for the compressor operation can be selected by means of software between20 °C and 40 °C. -
Page 12: High Temperature Alarm
High temperature alarm The compressor stopped when the ambient temperature high, the compressor PCB can feel the tempera- ture and cut the power. Protect the compressor. Condenser fan operation The condenser fan is stopped until cooling is needed. When the compressor starts the main-board can feel condenser temperature when condenser temperature above 35 °C condenser fan will also start. -
Page 13: Technical Data
5 Technical data 技术数据 技术数据 技术数据 技术数据 Performance: Ambient/return = 35 ° ° ° ° C / 35 ° ° ° ° C 35° ° ° ° C / 35 ° ° ° ° C Specification Unit Designation Value Voltage Voltage supply 45-57 Current... -
Page 14: Preventive Maintenance
6 Preventive maintenance 定期维护 定期维护 定期维护 定期维护 This heat management system contains moving mechanical parts, and is often placed in rough environments with high temperatures, humidity and dirt. To keep the air conditioner in a shape where it will Perform accord- ing to the specifications, preventive maintenance has to be carried out. - Page 15 Conditions of warranty The factory warranty is only valid if documented preventive maintenance has been carried out with an interval of maximum 6 month. The documentation could be in form of a written log on the site, or a report from the computer test program.
- Page 16 Checklist Checklist Are the fans, and the compressor clean and free of corrosion? Are the fans and the compressor mounted securely and free of exces- sive vibration? Is the compressor free of excessive noise? Are the coolant pipes free of obstructions, damage, corrosion and show no obvious signs of leakage? Are the coil lamellas clean and undamaged? Are all fan blades free of obstructions, cracks, missing blades and in...
-
Page 17: Replacement Of Spare Parts
– so only replace if the component is faulty! DAC20-450D Before the demounting the old spare part it is very important to order the new spare part from Dantherm. To do this most effectively the product version and serial number should be checked so this information can be... -
Page 18: Replacing The External Fan
Replacing the external fan Replacing the internal fan (see below pictures) Tools M7 Socket Wrench M7 Cutter T20 Screwdriver T20 Step Action Remove internal cover install screw (see step1) Remove the connecter. (see step2) Pull out the internal fan assembly, remove 4 screws & cable ties on internal fan .(see step3) Step1 Step2... -
Page 19: Replacing The Internal Fan
Replacing the internal fan Tools: Cutter “+”screw driver “+” Knife Step Action Remove screws fixing the inside cover same as replacing the internal fan. Unplug the connector and remove four screws on external fan cover plate. Replace the external fan Replacing the external fan(see below pictures) Inside cover External fan Bracket... -
Page 20: Scrapping
8 Scrapping 报废 报废 报废 报废 Main components The main components of the unit are: The cooling circuit including the compressor, coils and refrigerant liquid. The printed circuit boards (PCB’s) with electronic components and connecting wires Fans Metal parts such as shell 钣... -
Page 21: Performance
Fans The fans consist of plastic, metal and an internal PCB. They are subject to recycling and should be left to the local “scrap dealer”. 塑 组 利 废 弃 物 销 商 Metal parts The metal parts are uncritical to scrap and can be left to local “scrap dealer”. A few parts might have a thin visible layer of PVC-foam insulation. - Page 22 Wiring diagram...
