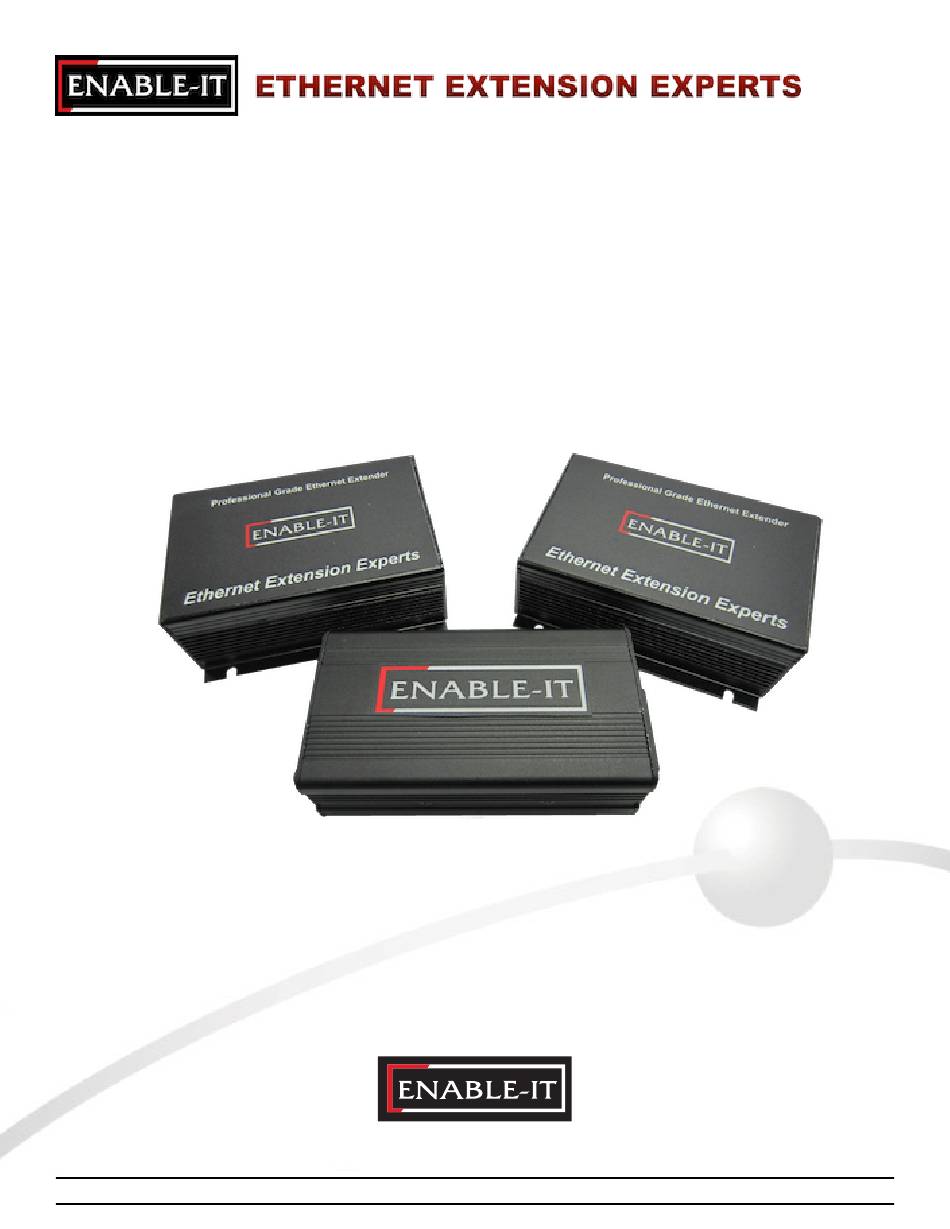

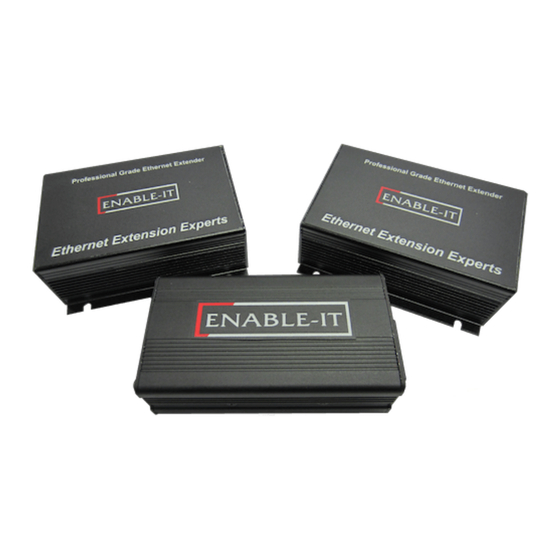

- Page 1 Enable-IT 868 PRO Single Pair PoE Extender Kit Quickstart Guide Professional Grade Networking All Rights Reserved © 1997 - 2019 Enable-IT™, Inc.
- Page 2 Step 2 - Next attach a patch cord from the Data & PoE Out port on the 360 PoE Injector to the 868 PRO CO LAN port 1. Then connect your Ethernet LAN source to the Data In port on the Injector.
- Page 3 Blinking = Indicates the presence of local LAN traffic. Step 5 - Next for a more detailed test and to confirm your LAN and PoE Equipment works with the 868 PRO, connect your Ethernet LAN to the 360 PoE Injector Data In port and the remote PoE device/s to the 868 PRO CPE LAN 1 &...
- Page 4 Attach your remote PoE devices to the 868 PRO CPE unit PoE ports and attach your local LAN to the 360 PoE Injector that is connected to LAN Port 1 on the 868 PRO CO. Power up the 360 and 868 PRO CO unit. The 868 PRO CPE and PoE device should all receive power and be ready to go.
- Page 5 If you experience issues of noise bleeding over the lines, or high interference in your environment, it is suggested that you switch to 6dB SNR. This may help clean up any noise bleeding over your cabling. All Rights Reserved © 1997 - 2019 Enable-IT™, Inc. Page ! of !
-
Page 6: Technical Support
Online Technical Services The Enable-IT Support Portal is available 24/7 to open a ticket or check the status of one. Please use this support website as your first source for help as it contains an on-line knowledge base of articles, documentation, FAQ's and other problem-solving resources. - Page 7 Remedies for Breach of Warranty. In the event of a breach of the foregoing warranty, Enable-IT will, in its sole discretion and at its cost, and subject to the terms of the following paragraph, repair the non-conforming Product, replace the non-conforming Product with a new or reconditioned Product or refund the purchase price for the Product.
- Page 8 USING THE PRODUCT. 2. LIMITATION OF LIABILITY. IN NO EVENT SHALL ENABLE-IT BE LIABLE TO THE END USER, OR ANY THIRD PARTY, FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH OR ARISING OUT OF THE SALE OR USE OF THE PRODUCT (INCLUDING...
- Page 9 Sales and Customer Care: Toll Free US and Canada 888 309-0910 866 389-8605 Fax Other International +1 702 924-0402 +1 702 800-2711 Fax E Mail sales@enableit.com support@enableit.com RMA Support: https://support.enableit.com All Rights Reserved © 1997 - 2019 Enable-IT™, Inc. Page ! of !
