Summary of Contents for Enable-IT 868
-

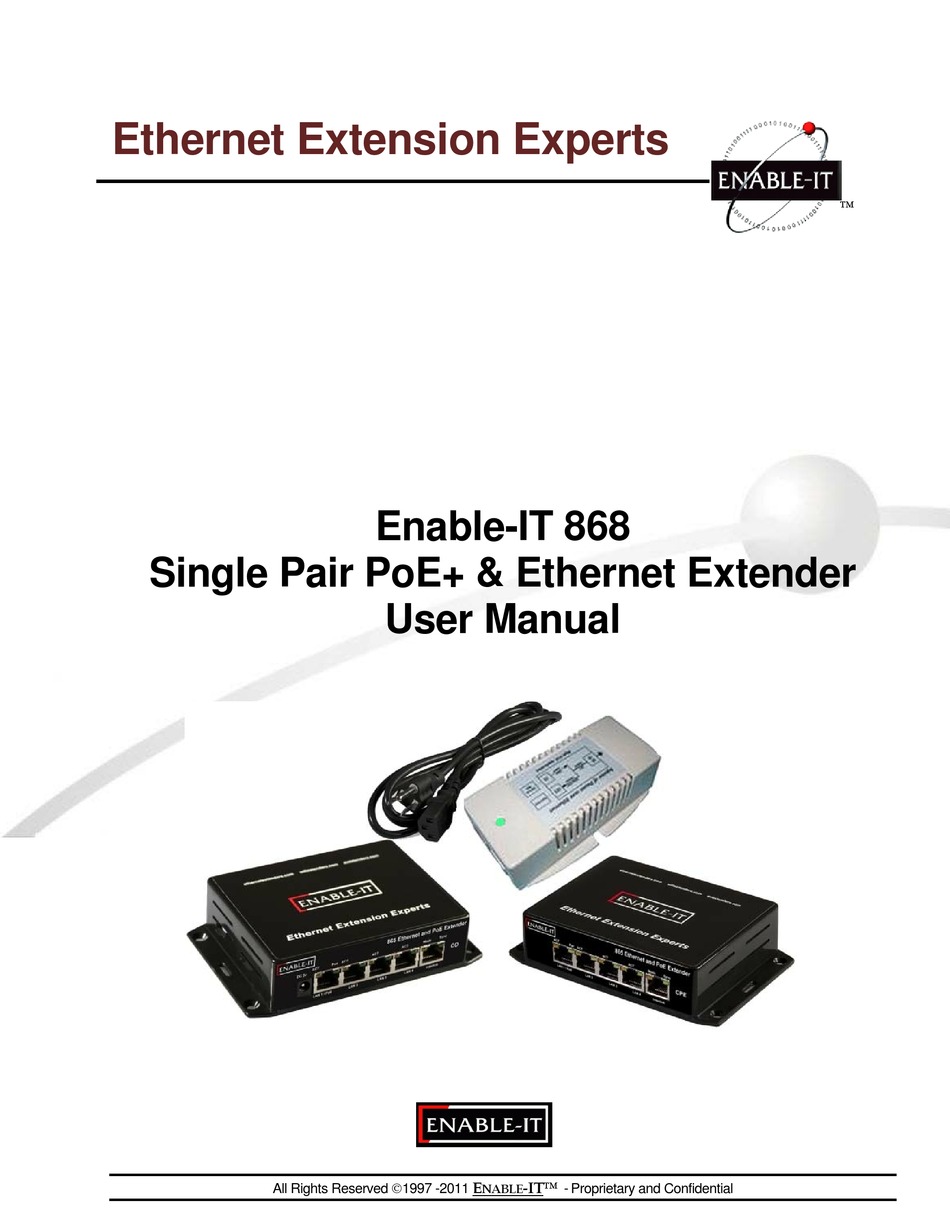

Page 1: User Manual

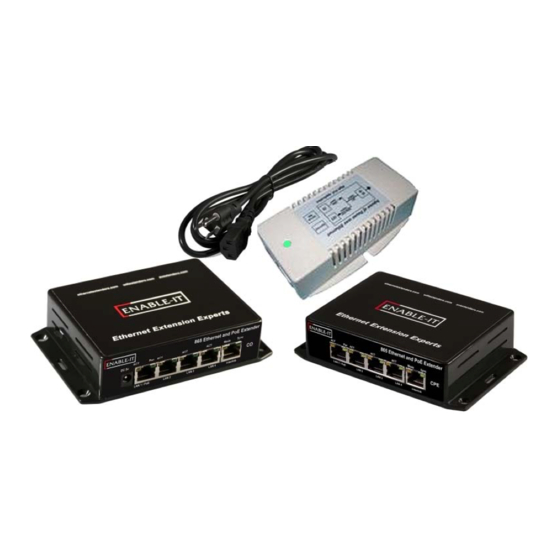

Ethernet Extension Experts Enable-IT 868 Single Pair PoE+ & Ethernet Extender User Manual -IT All Rights Reserved 1997 -2011 NABLE - Proprietary and Confidential... - Page 2 If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation. If you are unable to locate a copy, please contact Enable-IT, Inc and a copy will be provided to you.
-
Page 3: Table Of Contents
CONTENTS BOUT UIDE -IT 868 P E+ & E NTRODUCING NABLE XTENDED THERNET About the 868 PoE+ & Extended Ethernet Kit Key Benefits Summary of Features Multi Use Applications -IT 868 P E+ & E NSTALLING THE NABLE XTENDED THERNET Site Plan –... -
Page 4: About Thi Guide
ABOUT THIS GUIDE This guide provides all the information needed to install and use the Enable-IT 868 PoE+ & Extended Ethernet Kit. This guide is intended for use by technicians who are responsible for installing and setting up network equipment. -
Page 5: About The 868 Poe+ & Extended Ethernet Kit
Typical Use Applications About the 868 PoE+ & Extended Ethernet Kit The 868 PoE+ & Extended Ethernet Kit provides a complete all in one solution and lower cost alternative for installing a PoE+ device beyond IEEE Ethernet cabling distance limitations or for installing a remote LAN requiring no power at the remote end. Traditional methods require installation of costly fiber (that can’t carry power) or a series of... -
Page 6: Key Benefits
Key Benefits The following list identifies the 868 PoE+ & Extended Ethernet Kit key benefits. • Quad switched LAN RJ-45 10/100 Ethernet ports on each end for expansion without adding a hub or switch on each end. • The Enable-IT 868 PoE+ & Extended Ethernet Kit requires No Power (CPE remote end), No Firmware, No Maintenance •... -
Page 7: Multi Use Applications
Internet service does not affect POTS services. Carriers and Access Providers can came and go, but the 868 PoE+ & Extended Ethernet Kit technologies continue to provide lasting value such as the other utilities like water, gas and electricity. -
Page 8: Site Plan – Installation Design Considerations
XTENDED THERNET The Enable-IT 868 PoE+ & Extended Ethernet Kit have a distance restriction of 3,500ft or 1,067m over 1-pair of Category 3 up to Category 5e / CAT6 wiring from your LAN and power source to the remote PoE+ device. Therefore quick, simple site surveys and installation planning are highly recommended –... -
Page 9: Perform An Out Of The Box Test
To do this, please use one of the Ethernet patch cords provided and attach to the 868 Interlink port of each 868 unit. Using the 5v power adapter, power up the 868 CO Unit and attach the 360 PoE+ Injector (P+Data Out port) to the 868 CO LAN1/PoE+ port. -
Page 10: Performing The On-Site Installation
Attach your local LAN to the 360 PoE+ injector Data IN port. Attach the power adapter to the 868 CO unit. Attach the 360 PoE+ injector to the 868 CO LAN1/PoE+ port with Ethernet patch cord provided. Absolutely the last step is to apply power to the 360 PoE+ injector with the country power cord provided. -
Page 11: Online Technical Services
2) Check for a firm connection of the RJ-45 connections in each 868 unit, check any splice points in the Interlink wiring and that the 5v power adapter is applied to the 868 CO and the 360 PoE+ injector is powered up. - Page 12 Remedies for Breach of Warranty In the event of a breach of the foregoing warranty, Enable-IT will, in its sole discretion and at its cost and subject to the terms of the following paragraph, repair the non-conforming Product, replace the non-conforming Product with a new or reconditioned Product or refund of the purchase price for the Product.
- Page 13 PROGRAMS, DATA, OR OTHER INFORMATION STORED ON OR TRANSMITTED USING THE PRODUCT. 2. LIMITATION OF LIABILITY IN NO EVENT SHALL ENABLE-IT BE LIABLE TO THE END USER OR ANY THIRD PARTY FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH OR ARISING OUT OF THE...
- Page 14 North American Sales: Asia Pacific Sales: +44 1 908 560200 +1 888 309-0910 +61 02 8898-9622 +44 1 908 565533 fax +1 866 389-8605 fax +61 2 9939-0005 fax http://www.enable-it.eu http://www.enableit.com http://www.enable-it.com.au sales@enable-it.eu sales@enableit.com sales@enable-it.com.au Middle East Sales: Other International:...
