Page 1: User Manual

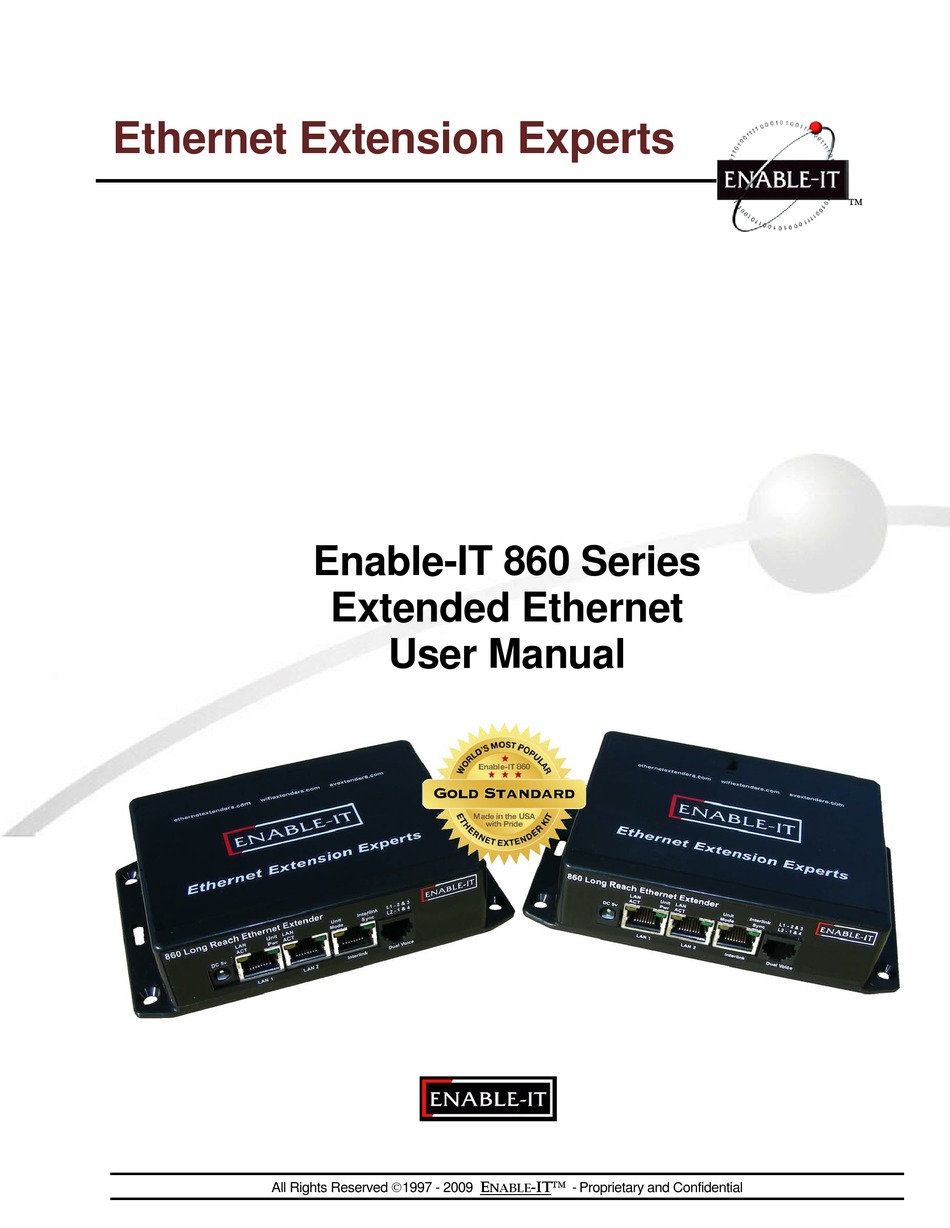

Ethernet Extension Experts Enable-IT 860 Series Extended Ethernet User Manual -IT All Rights Reserved 1997 - 2009 NABLE - Proprietary and Confidential... - Page 2 If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation. If you are unable to locate a copy, please contact Enable-IT, Inc and a copy will be provided to you.
-
Page 3: Table Of Contents
CONTENTS BOUT UIDE -IT 860 E NTRODUCING NABLE XTENDED THERNET About the 860 Extended Ethernet Kit Key Benefits Summary of Features Restricted Use Applications -IT 860 E NSTALLING THE NABLE XTENDED THERNET Site Plan – Installation Design Considerations Unpacking the 860 Extended Ethernet Kit Perform an out of the box Test Performing the On-Site Installation Mounting the 860 Extended Ethernet Kit... -
Page 4: About This Guide
ABOUT THIS GUIDE This guide provides all the information needed to install and use the Enable-IT 860 Extended Ethernet Kit. This guide is intended for use by technicians who are responsible for installing and setting up network equipment. Consequently, it is assumed that the installer has a basic working knowledge of LANs (Local Area Networks) and voice telecom wiring. -
Page 5: Introducing The
860 Extended Ethernet Unit meets the challenge of modern switched LANs and allows you to add features and capacity as your network expands. The Enable-IT 860 Extended Ethernet has been tested to provide full duplex transport up to 90MB/s over CAT2, and up to 100MB/s over CAT5e cabling. -
Page 6: Key Benefits
Key Benefits The following list identifies the 860 Extended Ethernet Unit key benefits. • Dramatic cost reduction over any competing technology. • Broadband technology that delivers in-building Ethernet access over 1 pair of existing Category 2 up to Category 5e wiring up to 6,000’, whether spare or actively in use for analog or digital voice. -
Page 7: Restricted Use Applications
Typical Applications Enable-IT 860 Extended Ethernet Units are usually installed into telephone wiring infrastructures where extension of backbone services is required and expensive fiber options are prohibitive. The 860 Extended Ethernet Units allow a standard Ethernet segment to be deployed quickly over existing 1 pair Telco Copper Wiring in combination with existing POTS voice signals. -
Page 8: Installing The Enable -It 860 Extended Ethernet Kit
XTENDED THERNET The Enable-IT 860 Extended Ethernet Units have a distance restriction of 6,000ft or 1,828m over 1-pair of Category 2 up to Category 5e / CAT6 wiring from device extension to device extension. Therefore quick, simple site surveys and installation planning are highly recommended. -
Page 9: Unpacking The 860 Extended Ethernet Kit
– Blinking indicates the presence of local LAN traffic Performing the On-Site Installation After removing the Enable-IT 860 Extended Ethernet Kit from the box and performing the out of the box testing all that remains to install the unit on-site is to mount the unit, build the interconnect wiring, add voice lines if needed and attach the LAN device cabling with the provided Ethernet Patch cords. - Page 10 860 CPE Attaching cabling and devices to the Enable-IT 860 Extended Ethernet Kit. Attach your remote LAN device to the 860 CPE unit LAN port with Ethernet patch cord provided. Attach your local LAN to the 860 CO LAN port with Ethernet patch cord provided.
-
Page 11: Technical Support
Electrical damage is not an item that is covered under this warranty or extended warranties. If authorized by Enable-IT to return a Product which does not conform to the warranty set forth above, the End User must: (1) obtain a return materials authorization (RMA) number from Enable-IT by contacting the Customer Service Dept. -
Page 12: Warranty
Remedies for Breach of Warranty In the event of a breach of the foregoing warranty, Enable-IT will, in its sole discretion and at its cost and subject to the terms of the following paragraph, repair the non-conforming Product, replace the non-conforming Product with a new or reconditioned Product or refund of the purchase price for the Product. - Page 13 PROGRAMS, DATA, OR OTHER INFORMATION STORED ON OR TRANSMITTED USING THE PRODUCT. 2. LIMITATION OF LIABILITY IN NO EVENT SHALL ENABLE-IT BE LIABLE TO THE END USER OR ANY THIRD PARTY FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH OR ARISING OUT OF THE...
-
Page 14: Contact Us
North American Sales: Asia Pacific Sales: +44 1 908 560200 +1 888 309-0910 +61 02 8898-9622 +44 1 908 565533 fax +1 866 389-8605 fax +61 2 9939-0005 fax http://www.enable-it.eu http://www.enableit.com http://www.enable-it.com.au sales@enable-it.eu sales@enableit.com sales@enable-it.com.au Middle East Sales: Other International:...
