Page 1: User Manual
Ethernet Extension Experts Enable-IT 865 PTZ 56V PoE+ & Ethernet Extender User Manual -IT All Rights Reserved 1997 - 2011 NABLE - Proprietary and Confidential... - Page 2 If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation. If you are unable to locate a copy, please contact Enable-IT, Inc and a copy will be provided to you.
- Page 3 CONTENTS BOUT UIDE -IT 865 PTZ & E NTRODUCING NABLE XTENDED THERNET About the 865 PTZ & Extended Ethernet Kit Key Benefits Summary of Features Multi Use Applications -IT 865 PTZ & E NSTALLING THE NABLE XTENDED THERNET Site Plan – Installation Design Considerations...
-
Page 4: About This Guide

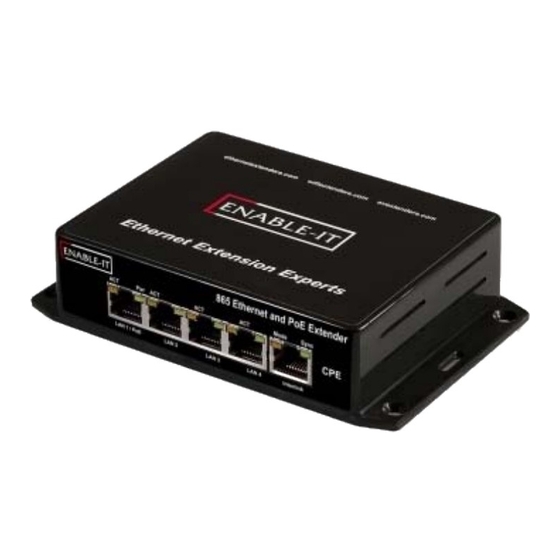

ABOUT THIS GUIDE This guide provides all the information needed to install and use the Enable-IT 865 PTZ & Extended Ethernet Kit. This guide is intended for use by technicians who are responsible for installing and setting up network equipment. - Page 5 Power over Ethernet (PoE) in a combined package that exceeds the IEEE distance limitations for all Ethernet equipment. WARNING: Output LAN ports 1 & 2 on the 865 CPE are PoE enabled and not for use with non-PoE equipment as it may damage any non-PoE equipment.
- Page 6 Key Benefits The following list identifies the 865 PTZ & Extended Ethernet Kit key benefits. • Quad switched PoE+ enabled LAN RJ-45 10/100 Ethernet ports on each end for expansion without adding a hub or switch on each end. •...
- Page 7 Enable-IT 865 PTZ & Extended Ethernet kit is a versatile multipurpose solution installed for the use of PoE equipment such as High Powered PoE+ PTZ Cameras. Non-PoE equipment may be damaged if used and the Enable-IT 865 PTZ kit should be used to bridge non-PoE equipment.
- Page 8 XTENDED THERNET The Enable-IT 865 PTZ & Extended Ethernet Kit have a distance restriction of 3,500ft or 1,067m over 2-pair of Category 3 up to 4-pair Category 5e / CAT6 wiring from your LAN and power source to the remote PoE device. Therefore quick, simple site surveys and installation planning are highly recommended –...
- Page 9 865, connect your Ethernet LAN and PoE remote device to the 865 LAN ports and test connectivity. WARNING: Output LAN ports 1 & 2 on the 865 CPE are PoE enabled and not for use with non-PoE equipment as it may damage any non-PoE equipment.
- Page 10 Attach your local LAN to the 360 PoE injector Data IN port. Attach the power adapter to the 865 CO unit. Attach the 360 PoE+ injector to the 865PTZ CO LAN1/PoE port with Ethernet patch cord provided. Apply power to the 360 PoE injector with the country power cord provided.
- Page 11 Electrical damage is not an item that is covered under this warranty or extended warranties. If authorized by Enable-IT to return a Product which does not conform to the warranty set forth above, the End User must: (1) obtain a return materials authorization (RMA) number from Enable-IT by contacting the Customer Service Dept.
-
Page 12: Product Warranty
Remedies for Breach of Warranty In the event of a breach of the foregoing warranty, Enable-IT will, in its sole discretion and at its cost and subject to the terms of the following paragraph, repair the non-conforming Product, replace the non-conforming Product with a new or reconditioned Product or refund of the purchase price for the Product. - Page 13 PROGRAMS, DATA, OR OTHER INFORMATION STORED ON OR TRANSMITTED USING THE PRODUCT. 2. LIMITATION OF LIABILITY IN NO EVENT SHALL ENABLE-IT BE LIABLE TO THE END USER OR ANY THIRD PARTY FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH OR ARISING OUT OF THE...
- Page 14 North American Sales: Asia Pacific Sales: +44 1 908 560200 +1 888 309-0910 +61 02 8898-9622 +44 1 908 565533 fax +1 866 389-8605 fax +61 2 9939-0005 fax http://www.enable-it.eu http://www.enableit.com http://www.enable-it.com.au sales@enable-it.eu sales@enableit.com sales@enable-it.com.au Middle East Sales: Other International:...
