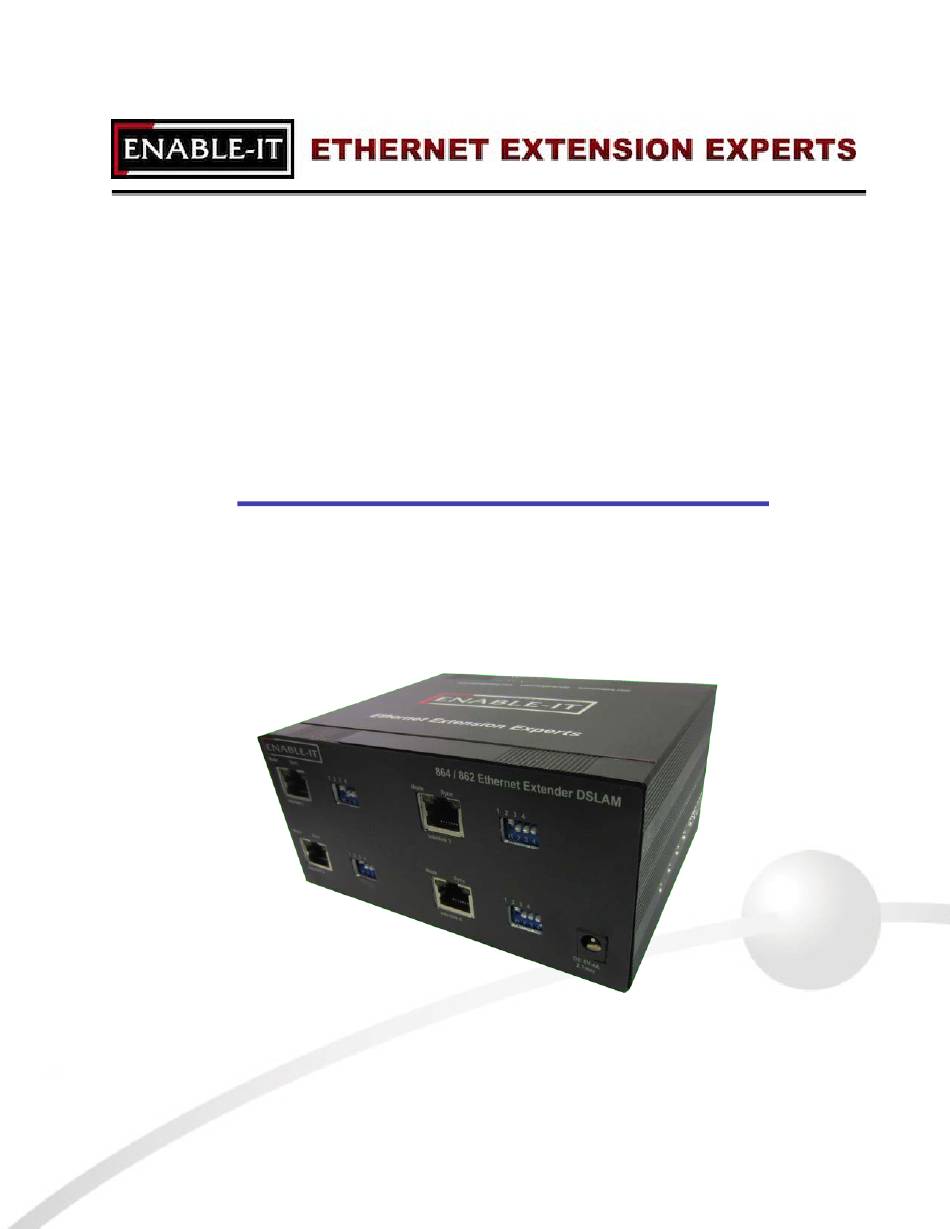

- Page 1 Enable-IT 864P Mini DSLAM PoE Ethernet Extender Kit User Manual...
- Page 2 864P Mini Extended Ethernet PoE DSLAM meets the challenge of modern switched LANs, and allows you to add features and capacity as your network expands. The Enable-IT 864P Mini PoE DSLAM extended Ethernet solution has been tested to provide Full-Duplex transport up to 90Mbps over CAT2, and up to 100Mbps over CAT5e cabling.
- Page 3 861P PoE CPE - Quad switched RJ-45 10/100 LAN Ethernet ports for expansion without adding a hub or switch on each end. Summary Of Features The Enable-IT 864P Mini Extended Ethernet PoE DSLAM has the following hardware features: • Extended Ethernet line over existing CAT2 up to CAT5e / CAT7 wiring •...
- Page 4 864P Mini PoE DSLAM extended Ethernet technologies continue to provide lasting value, such as other utilities like water, gas and electricity. The Enable-IT 864P Mini Extended Ethernet PoE DSLAM is suited for the following key environments: •...
- Page 5 E DSLAM NSTALLING The Enable-IT 864P Mini PoE DSLAM has a distance restriction of 6,000ft (1,829m) over 1-pair of Category 2, up to 4-pair CAT5e / CAT7, wiring from device extension to device extension. Therefore quick, simple site surveys and installation planning are highly recommended.
- Page 6 Unpacking the Enable-IT 864P Mini Extended Ethernet PoE DSLAM Carefully remove the Enable-IT 864P Mini PoE DSLAM packing materials from the box. Verify that the items listed below are present. Make sure that the equipment supplied matches what you ordered.
- Page 7 The Enable-IT 861P PoE Ethernet Extender CPE are designed for quick wall mounting. Choose a location to mount each of the Enable-IT 861P PoE CPE where the maximum distance does not exceed 6,000ft (1,829m) total between devices to be connected.
- Page 8 Cabling Devices To The Enable-IT 864P Mini PoE DSLAM Extended Ethernet Kit Attach your remote LAN device to the 864P Mini PoE DSLAMCPE unit LAN ports with Ethernet patch cord provided. Attach your local LAN to the 864P Mini PoE DSLAMCO LAN ports with Ethernet patch cord provided.
- Page 9 Performance Settings (DIP Switch) If you are experiencing performance issues with your Ethernet connection you may use the following DIP switch settings to adjust your application. For DIP switch 2-4 you must toggle both symmetrically, in other words the 864P and 861P PoE CPE must match. If you turn DIP switch 3 Up (Off) on the CO, then you must do so for the CPE and vice-versa.
