Enable-IT 860 Series User Manual

Extended ethernet
Hide thumbs Also See for 860 Series:

Advertisement

Quick Links

 
Enable-IT 860 Series
Extended Ethernet

User Manual

E
-IT
All Rights Reserved 1997 - 2008
NABLE
- Proprietary and Confidential

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 860 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Enable-IT 860 Series

  • Page 1: User Manual

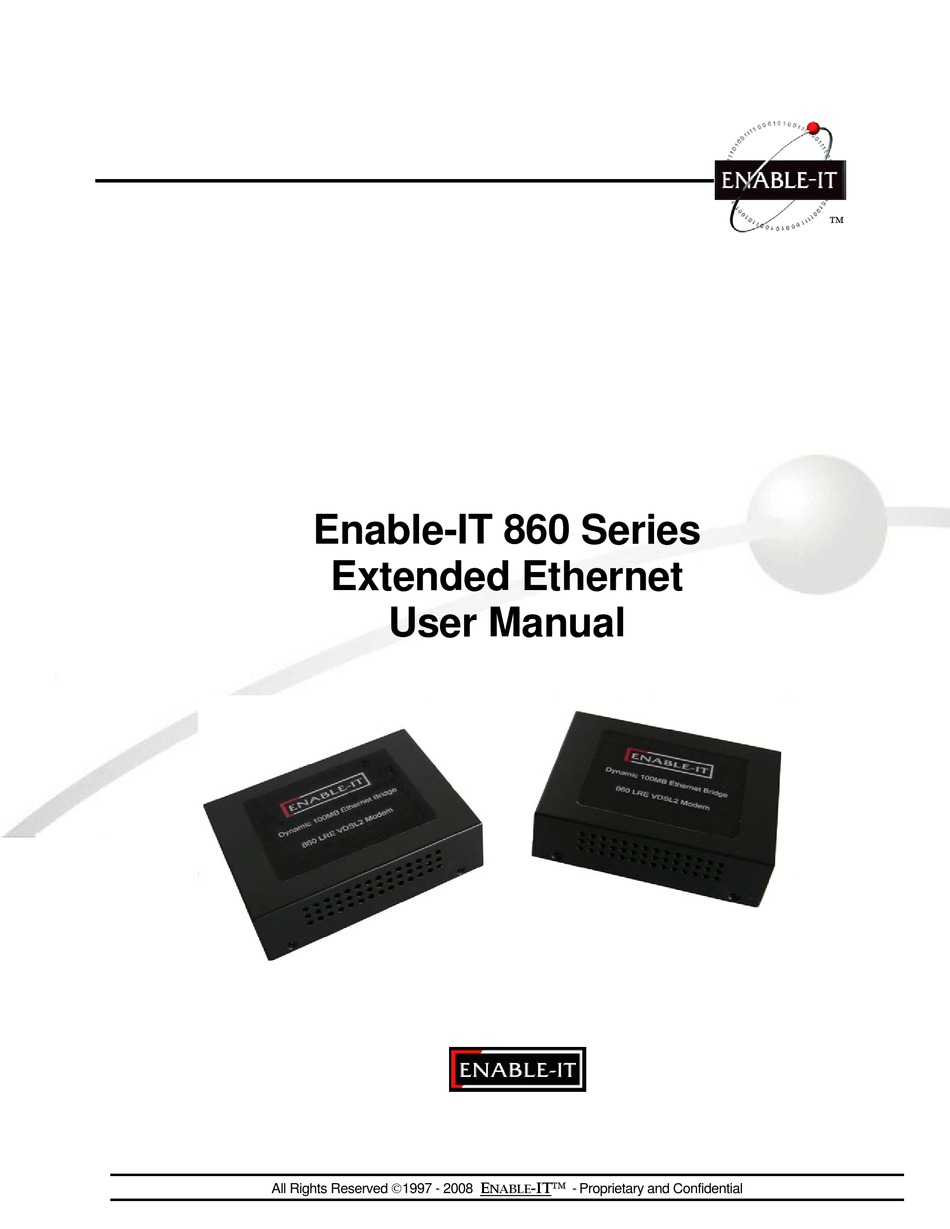

      Enable-IT 860 Series Extended Ethernet User Manual -IT All Rights Reserved 1997 - 2008 NABLE - Proprietary and Confidential...
  • Page 2 If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation. If you are unable to locate a copy, please contact Enable-IT, Inc and a copy will be provided to you.
  • Page 3: Table Of Contents

    Site Plan – Installation Design Considerations Unpacking the 860 Extended Ethernet Kit Performing the On-Site Installation Mounting the 860 Extended Ethernet Units ECHNICAL UPPORT Online Technical Services World Wide Web Site Returning Products for Repair Enable-IT Inc. L IMITED ARRANTY Page 3 of...
  • Page 4: About This Guide

    ABOUT THIS GUIDE This guide provides all the information needed to install and use the Enable-IT 860 Extended Ethernet Unit. This guide is intended for use by technicians who are responsible for installing and setting up network equipment. Consequently, it is assumed that the installer has a basic working knowledge of LANs (Local Area Networks) and voice telecom wiring.
  • Page 5: Introducing The Enable -It 860 Extended Ethernet Unit

    860 Extended Ethernet Unit meets the challenge of modern switched LANs and allows you to add features and capacity as your network expands. The Enable-IT 860 Extended Ethernet has been tested to provide full duplex transport up to 90MB/s over CAT2, and up to 100MB/s over CAT5e cabling.
  • Page 6: Key Benefits

    Key Benefits The following list identifies the 860 Extended Ethernet Unit key benefits. • Dramatic cost reduction over any competing technology. • Broadband technology that delivers in-building Ethernet access over 1 pair of existing Category 2 up to Category 5e wiring up to 6,000’, whether spare or actively in use for analog or digital voice.
  • Page 7: Typical Applications

    Typical Applications Enable-IT 860 Extended Ethernet Units are usually installed into telephone wiring infrastructures where extension of backbone services is required and expensive fiber options are prohibitive. The 860 Extended Ethernet Units allow a standard Ethernet segment to be deployed quickly over existing 1 pair Telco Copper Wiring in combination with existing POTS voice signals.
  • Page 8: Installing The Enable -It 860 Extended Ethernet Unit

    THERNET NITS The Enable-IT 860 Extended Ethernet Units have a distance restriction of 6,000ft or 1,828m over 1-pair of Category 2 up to Category 5e / CAT6 wiring from device extension to device extension. Therefore quick, simple site surveys and installation planning are highly recommended.
  • Page 9: Performing The On-Site Installation

    (1) Enable-IT 860 Extended Ethernet Unit User Manual (this manual) Performing the On-Site Installation After removing the Enable-IT 860 Extended Ethernet Units from the box all that remains to install the unit on-site is to mount the unit, connect the wiring, cross connect voice lines if needed and attach the end device patch cord cabling.
  • Page 10: A Technical Support

    Online Technical Services The Enable-IT Support Portal is available 24/7. No password or user account is necessary. Please use this support website as your first source for help as it contains an on line knowledge base of articles, documentation, FAQ's and other problem-solving resources.
  • Page 11 Remedies for Breach of Warranty In the event of a breach of the foregoing warranty, Enable-IT will, in its sole discretion and at its cost and subject to the terms of the following paragraph, repair the non-conforming Product, replace the non-conforming Product with a new or reconditioned Product or refund of the purchase price for the Product.
  • Page 12 Enable-IT; (ii) modification (including but not limited to opening the Product housing) or repair by any party in any manner other than as approved by Enable-IT in writing; (iii) fraud, tampering, unusual physical or electrical stress, unsuitable operating or physical conditions, negligence or accidents;...
  • Page 13 Enable-IT and/or its licensors. You acknowledge and agree that you may not, and may not allow any...
