Summary of Contents for Enable-IT 860
-

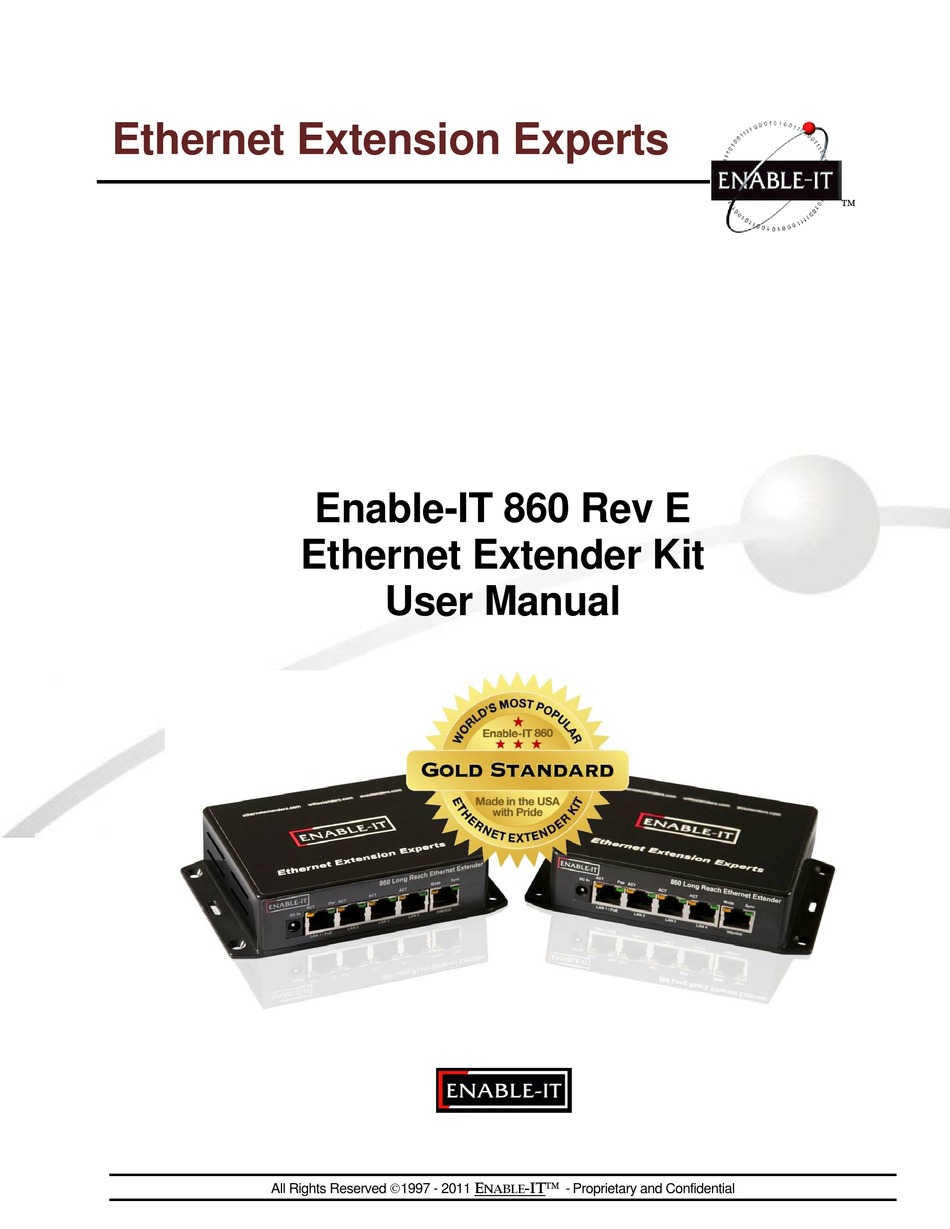

Page 1: User Manual
Ethernet Extension Experts Enable-IT 860 Rev E Ethernet Extender Kit User Manual -IT All Rights Reserved 1997 - 2011 NABLE - Proprietary and Confidential... - Page 2 If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation. If you are unable to locate a copy, please contact Enable-IT, Inc and a copy will be provided to you.
-
Page 3: Table Of Contents
CONTENTS BOUT UIDE -IT 860 E NTRODUCING NABLE THERNET XTENDER About the 860 Rev E Ethernet Extender Kit Key Benefits Summary of Features Typical Use Applications -IT 860 E NSTALLING THE NABLE THERNET XTENDER NITS Site Plan – Installation Design Considerations... -
Page 4: About This Guide
ABOUT THIS GUIDE This guide provides all the information needed to install and use the Enable-IT . This guide is intended for use by technicians who are Ethernet Extender Kit responsible for installing and setting up network equipment. Consequently, it is assumed that the installer has a basic working knowledge of LANs (Local Area Networks) and voice telecom wiring. -
Page 5: Introducing
The 860 Extended Ethernet Unit offers the Lowest Cost Solution in a simple design for rapid install using existing 1 pair Telco wiring. - Page 6 Key Benefits The following list identifies the 860 Extended Ethernet Unit key benefits. • Dramatic cost reduction over any competing technology and includes a (4) Port 10/100 LAN switch on each end. • Broadband technology that delivers in-building Ethernet access over 1 pair of existing Category 2 up to Category 5e wiring up to 6,000’, whether spare or...
-
Page 7: Typical Use Applications
1 pair Telco Copper Wiring in combination with existing POTS voice signals. The 860 Interlink port (RJ-45 interface) carries this 1- pair signaling over the RJ-45 pins (1 & 2) - used for transport for both voice and data. If you use more than 1-pair of wiring such as a CAT5 segment, the RJ-45 pins (3 &... -
Page 8: Site Plan - Installation Design Considerations
4,5,7 & 8 are can transport native PoE or are unused. As an option the RJ-11 interface on the side of the 860 for use with existing RJ-11 wiring. The RJ-11 dongles do not transport PoE currently but can be easily added if needed on request at time of ordering. - Page 9 (1) Enable-IT 860 Extended Ethernet Kit User Manual (this manual) Perform an out of the box Test We highly recommend a quick test to ensure the working order of you 860 units. To do this, please use one of the Ethernet patch cords provided and attach to the 860 Interlink port of each 860 unit.
-
Page 10: Building The 860 Interlink Wiring
(3 & 6) on each end straight through. Insert the completed RJ-45 ends into the 860 Interlink port on each 860 unit or the RJ-11 ends into the RJ-11 interlink interface and or dongle provided and insert the dongle into the 860 RJ-11 Interlink port on the right side of each 860 unit. -
Page 11: Technical Support
860 CO & CPE units. 3) You can easily isolate any issue by performing an out of the box test confirm either the 860 Kit or your wiring. It is possible an outside interference has been introduced into your wiring. - Page 12 Remedies for Breach of Warranty In the event of a breach of the foregoing warranty, Enable-IT will, in its sole discretion and at its cost and subject to the terms of the following paragraph, repair the non-conforming Product, replace the non-conforming Product with a new or reconditioned Product or refund of the purchase price for the Product.
- Page 13 Enable-IT; (ii) modification (including but not limited to opening the Product housing) or repair by any party in any manner other than as approved by Enable-IT in writing; (iii) fraud, tampering, unusual physical or electrical stress, unsuitable operating or physical conditions, negligence or accidents;...
-
Page 14: Contact Us
Enable-IT and/or its licensors. You acknowledge and agree that you may not, and may not allow any...
