Summary of Contents for Enable-IT 865 PTZ PRO

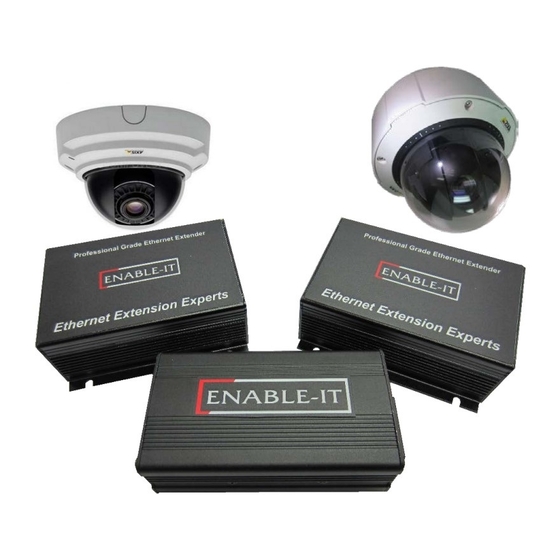

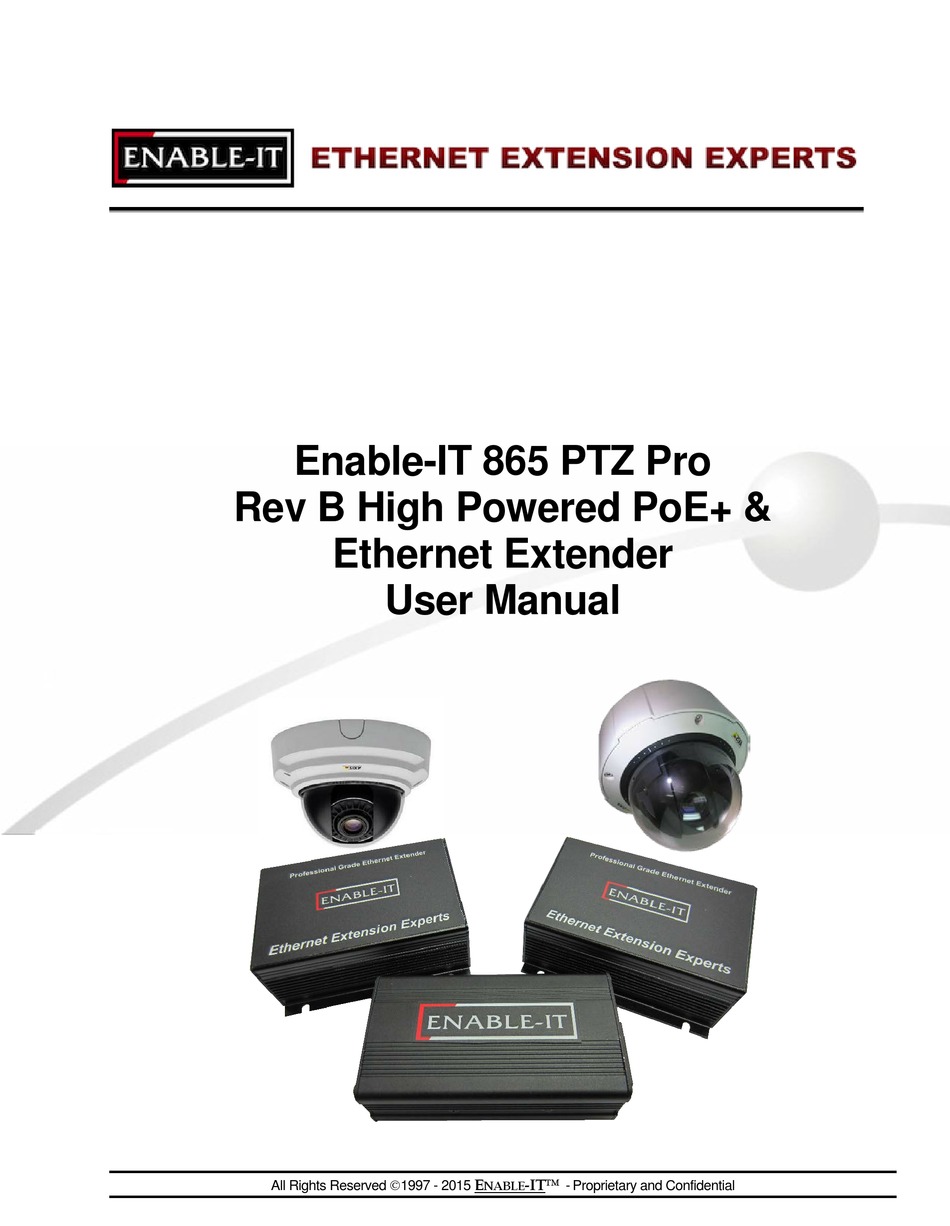

- Page 1 Enable-IT 865 PTZ Pro Rev B High Powered PoE+ & Ethernet Extender User Manual -IT All Rights Reserved 1997 - 2015 NABLE - Proprietary and Confidential...
- Page 2 Enable-IT, Inc. Enable-IT, Inc. reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of Enable-IT, Inc., to provide notification of such revision or change. Enable-IT, Inc. provides this documentation without warranty, term, or condition of any...
-
Page 3: Table Of Contents
THERNET XTENDER Site Plan – Installation Design Considerations ..........8 Unpacking the Enable-IT 865 PTZ PRO PoE & Ethernet Extender Kit ..9 Perform an Out of the Box Test (OOTBT) ........... 10 Performing the On-Site Installation.............. 11 Mounting the 865 PTZ PRO PoE & Ethernet Extender Units ...... 11 Building the 865 PTZ PRO Interlink Wiring .......... -
Page 4: About This User Manual
This product User Manual provides all the information needed to install and use the Enable-IT 865 PTZ PRO PoE & Ethernet Extender Kit. This User Manual is intended for use by technicians who are responsible for installing and setting up network equipment. -
Page 5: Introducing The 865 Ptz Pro P O E & Ethernet Extender Kit
Typical Applications About The 865 PTZ PRO PoE & Ethernet Extender Kit The 865 PTZ PRO extended PoE Ethernet solution addresses the problem of high costs associated with installing power and stretching your backbone with traditional fiber or a series of hubs/repeaters. The added benefit of power is not an option over fiber. -
Page 6: Key Benefits
Key Benefits The following list identifies the 865 PTZ PRO PoE & Ethernet Extender Kit key benefits. • Dramatic cost reduction over any competing technology and includes a 4-Port 10/100 LAN switch on each end. Rapid installation with small box profile, no programming and no firmware to upgrade •... -
Page 7: Typical Use Applications
865 PTZ PRO extended Ethernet technologies continue to provide lasting value, such as other utilities like water, gas and electricity. The Enable-IT 865 PTZ PRO PoE & Ethernet Extender Kit is suited for the following key environments: •... -
Page 8: Installing The 865 Ptz Pro P O E & Ethernet Extender Kit
XTENDED THERNET The Enable-IT 865PTZ Pro PoE & Extended Ethernet Kit have a distance restriction of 3,500ft or 1,067m over 3-pair of Category 3 up to 4-pair Category 5e / CAT6 wiring from your LAN and power source to the remote PoE device. Or 1,500ft / 458m for an Axis P Series IP camera installation. -
Page 9: Unpacking The Enable-It 865 Ptz Pro Poe & Ethernet Extender Kit
(1) Country Specific power cord for 360 Injector PoE Phoenix Connector The Enable-IT 865 PTZ Pro has Phoenix Connectors on both the CO & CPE for use with your external PoE source. In order to send power to the remote end CPE device and... -
Page 10: Perform An Out Of The Box Test (Ootbt)
WARNING: Output LAN ports 1 & 2 on the 865 Pro CPE are PoE enabled and not for use with non-PoE equipment as it may damage any non-PoE equipment. LED indicators will provide visual operational status of the 865 PTZ Pro units. Mode – Yellow Solid LED... -
Page 11: Performing The On-Site Installation
For troubleshooting, first examine the backbone wiring pair and make sure you have solid connections. The Interlink Sync LED will be lit on each 865 PTZ Pro unit to show proper connection and pairing. If the Interlink Sync LED Link is flashing – (Not pulsing) 1) Make sure your wiring is straight through and not connected to any Telco punch down blocks or a few as possible –... -
Page 12: Performance Settings (Dip Switch)
If you experience issues of noise bleeding over the lines, or high interference in your environment, it is suggested that you switch to 6dB SNR. This may help clean up any noise bleeding over your cabling. All Rights Reserved 1997 - 2015 Enable-IT, Inc. Page 12 of 16... -
Page 13: Technical Support
Online Technical Services The Enable-IT Support Portal is available 24/7 to open a ticket or check the status of one. Please use this support website as your first source for help as it contains an on-line knowledge base of articles, documentation, FAQ's and other problem-solving resources. -
Page 14: Enable -It, Inc . Limited Warranty
Remedies for Breach of Warranty. In the event of a breach of the foregoing warranty, Enable-IT will, in its sole discretion and at its cost, and subject to the terms of the following paragraph, repair the non-conforming Product, replace the non-conforming Product with a new or reconditioned Product or refund the purchase price for the Product. - Page 15 STORED ON OR TRANSMITTED USING THE PRODUCT. 2. LIMITATION OF LIABILITY. IN NO EVENT SHALL ENABLE-IT BE LIABLE TO THE END USER, OR ANY THIRD PARTY, FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH OR ARISING OUT OF THE SALE OR USE OF THE...
-
Page 16: Contact Us
Sales and Customer Care: Toll Free US and Canada 888 309-0910 866 389-8605 Fax Other International +1 702 924-0402 +1 702 800-2711 Fax E Mail sales@enableit.com support@enableit.com RMA Support: http://support.enableit.com All Rights Reserved 1997 - 2015 Enable-IT, Inc. Page 16 of 16...
